| Prod Model: |
GZDW |
| Output Type: |
Triple |
| Warranty: |
1 Year |
| Output Power: |
101 - 200W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
Product Description

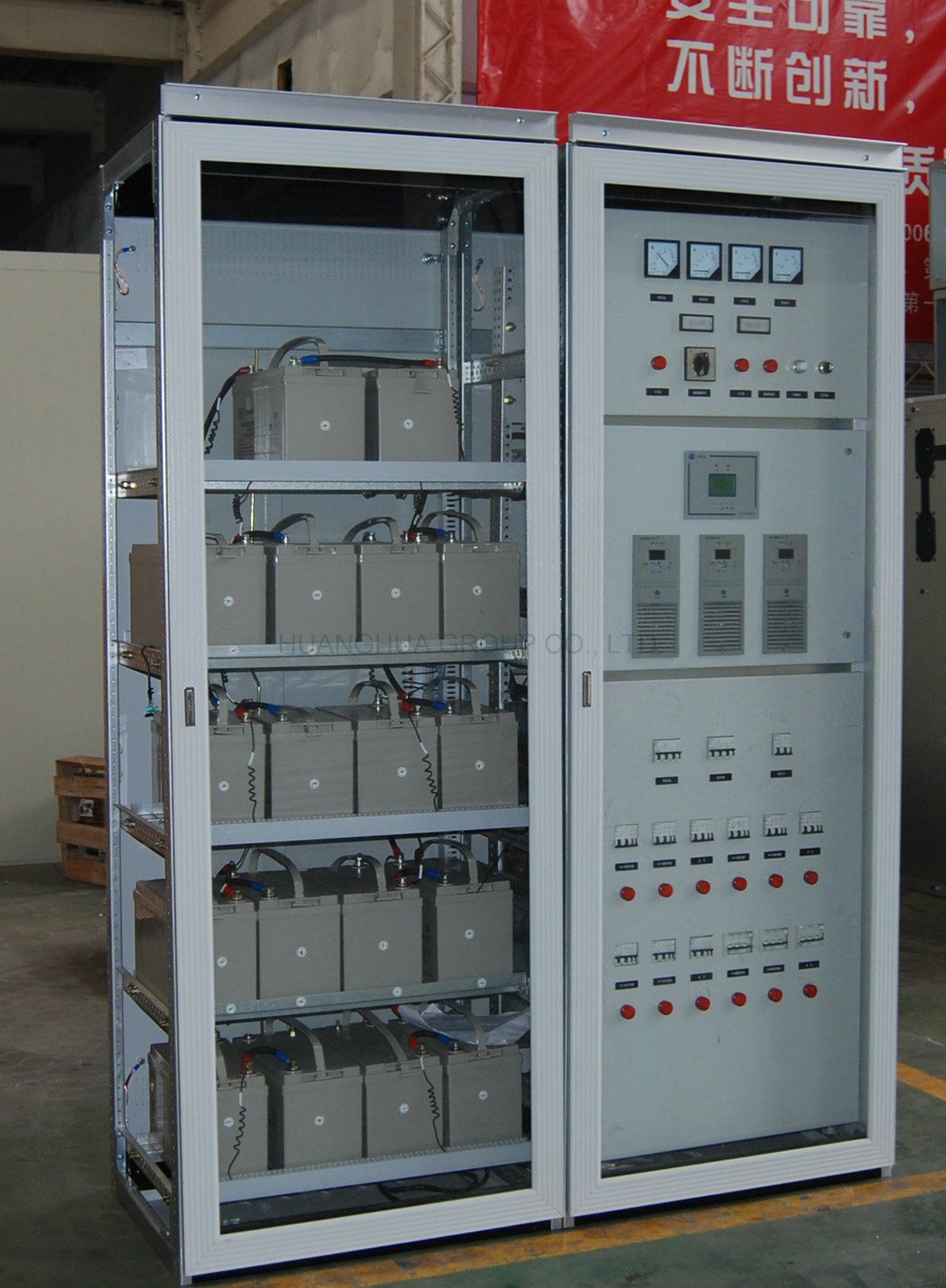

GZDW DC power supply electrical panel Capacitor Bank cabinet compensating switchgear
1.Application
1.1 The DC Power supply pannel serves in power generation plants and substations to functions as power suply needed for making &breaking closing of high voltage.
1.2 It also serves as power supply in such occasions as metallurgical industry,railway,mine ,petrochemical industry ,post ,telecom ,hospital,bank ,hotel,computer network and so on .
1.3 Standards:IEC61204
3.Type Meanings
| Model | Description | Kinds | Application |
| GZDW-30-/- | Single battery group, single busbar sectionalization, two two-line output charging and floating charging devices, no voltage reduced circuit | 10 | power plant or large substation |
| GZDW-31-/- | Single battery group, single busbar, two two-line output charging and floating charging devices, no voltage reduced circuit | 10 | power plant or large substation |
| GZDW-32-/- | Single battery group, double busbar sectionalization, two two-line output charging and floating charging devices | 20 | 12kV-220kV substation and medium and small power plant |
| GZDW-33-/- | Single battery group, double busbar, two two-line output charging and floating charging devices | 20 | 12kV-220kV substation and medium and small power plant |
| GZDW-34-/-- | Single battery group, double busbar sectionalization, two three-way output charging and floating charging devices | 20 | 12kV-220kV substation and medium and small power plant |
| GZDW-35-/- | Single battery group, double busbar, two three-way output charging and floating charging devices | 20 | 12kV-220kV substation and medium and small power plant |
| GZDW-40-/- | Double battery group, single busbar sectionalization, two two-line output charging and floating charging devices, voltage reduced circuit | 10 | important power plant or large substation |
| GZDW-41-/- | Double battery group, double busbar sectionalization, two two-line output charging and floating charging devices | 12 | 12kV-220kV substation and medium and small power plant |
| GZDW-42-/- | Single battery group, double busbar sectionalization, three two-line output charging and floating charging devices | 10 | important power plant or large substation |
| GZDW-43-/- | Single battery group, double busbar, two two-line output charging and floating charging devices | 12 | 12kV-220kV substation and medium and small power plant
|
Huanghua Group is an enterprise group, which integrates industrial manufacturing, import and Export, founded in 1980. Now the group has more than 500 employees. There are five subsidiaries, and the products have founded ready markets in all regions of China and some of oversea markets. CNHK Electrics Co., Ltd., is the head of the Group. It is the largest company in terms of production and sales volume of high voltage electrical components in the group. The second one is producing high voltage power transmission. The third one is producing transformer. The fourth one is producing cabinet and the fifth one is a domestic trade company.
Huanghua Group is one of the Top 500 Private Enterprises in comprehensive strength in China, mainly specializing in the production of high-low voltage power transmission and distribution equipment, including substation, power distribution automated switchgears, terminal devices, as well as high-low voltage components, etc. In view of being specialized in electric industry, Huanghua Group gradually grows into one of the leading enterprises in industrial electrical equipment field in China. The group has invested in Shanghai to establish Shanghai Huanghua (CNHK) Electric Industrial Zone. The industrial zone area is more than 80, 000 square meters.
For more than 30 years, Huanghau Group has always been insisting on the operation philosophy of "People oriented, Credit Based, Values Shared".
Nowadays, science and technology are under rapid development. We believe the human society's progress shall be highly promoted, and we will go with this trend to keep forging ahead actively.
We have passed ISO9001 Quality System Certification, ISO14001 Environment System Certification and other certificates on programs, including China Compulsory Certification (CCC) and CE. International certificates are under proceeding.
We are looking forward to cooperating with you and to creating a brilliant future together.
