Drinking Water Pressure Transducer Low Price
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
Drinking water treatment equipment Pressure transducer

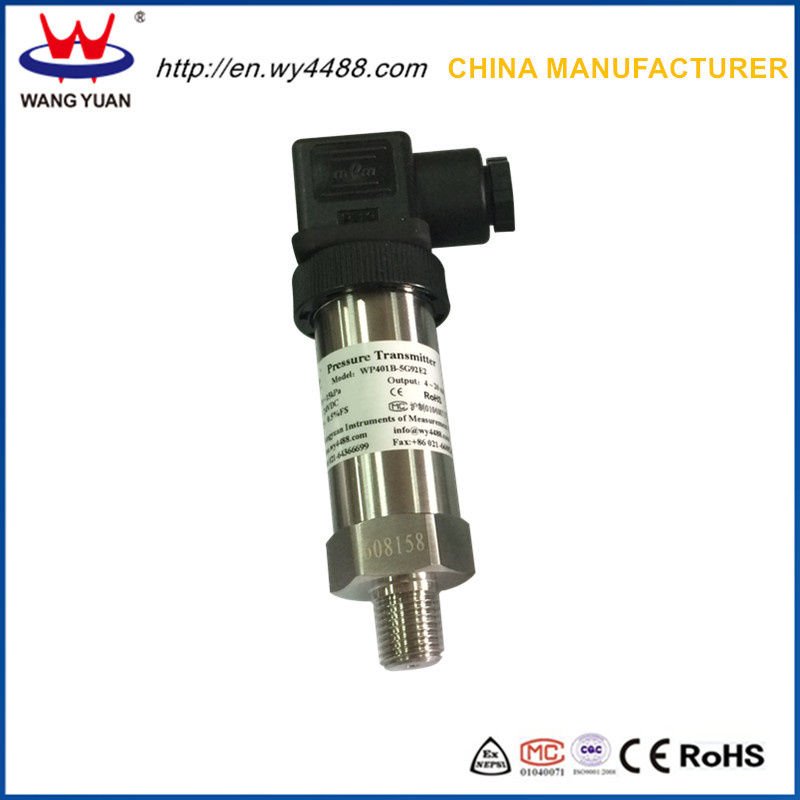

Model: WP401B
ApplicationThis pressure transducer can be used to measure & control the pressure of oil, gas, liquid in the fields:
Petroleum, Chemical industry
Light industry, Metallurgy
Electric power, Water supply
Environmental protection
Oil & Gas, Forklift truck
Ocean and etc.DescriptionWP401B pressure sensor adopts advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology. The product is designed to work well for measuring all kinds of air, liquids, gas, fluids, even though weak-corrosive media under all-weather environments. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure sensors. Widely output signals are available.FeaturesVarious pressure range: 0_± 0.2~± 100kPa, 0 _ 0.2kPa~400MPa
Imported advanced sensor component
Measure pressure of various corrosive medium
Strong anti-jamming performance
Compact dimension design, strong construct
Light weight, easy to install, maintenance-free
Range can be adjusted in external, widely range of shift
3 1/2 LCD or LED local display
Explosion-proof type: Ex iaIICT6, Ex dIIBT4SpecificationPressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Compensation range: -10-70C
Operation temperature: -40-60C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Electrical connection: Hirschmann(DIN), Cable, Bendix connector(5PIN, 4PIN)Ordering guide: WP401B-0.6MPa-M20*1.5-DIN Connector-4-20mA-24VDC-0.5%FS
More information of this pressure transducer, please feel free to contact with us.APPLICATION:
LNG OIL & GAS

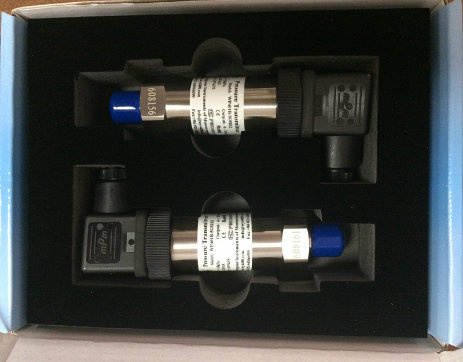

WATER TREATMENT PHARMACEUTICAL Packaging & Shipping
Good quality pressure transducers will be sent to you by DHL, TNT, UPS, SF, EMS, and charge the freight cost from you, or you can use your own courier, just for your convenience.
Company InformationShanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company (MANUFACTURER) specializing in industrial process control technology and products for years. Quality is our culture! We offer a complete product line of pressure transmitter, temperature sensor, level transmitter, flow meter and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS and CPA.
In addition, with our highly skilled and experienced team of professional engineers and technicians we are working with customers from process control industries, government sector, and universities, these customers include China National Petroleum Corp. Shanghai tag water plant and etc.
We can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
As an honest leader in the industrial automation field, we never crook our customers and provide global customers with high quality products and services. Hope to be your trustworthy supplier in China. You are welcome to contact us with your inquiry/ comments/ orders at any time.
Our service:1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.FAQs1. Why I choose you?
A: Shanghai Wangyuan Instruments of Measurement Co., Ltd. (PROFESSIONAL MANUFACTURER) is a high-tech enterprise level company specializing in industrial process control technology and measurement products for years.
Quality is our culture! With us your business is in safe and your Money is in Safe!
YOU ARE WELCOME TO BE OUR PROFESSIONAL AGENT !
2. What are your main products(Core competence)?
A:Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument and etc.
3. Warranty:
A: 12 months warranty for all of our products.
4. What industries are they mainly applied to(Application)?
A: Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, air condition, fuel pressure measurement and other process control industries.
5. How do you ensure good product quality?(quality control)
A: All products are thoroughly tested in-house with our vast array of calibration and special testing equipment (like Fluke PPC4 (Pneumatic Pressure controller/Calibrators)). Our testing process is conducted in accordance with a strict quality control system.
6. How fast can you deliver goods (Delivery time)?
A: We can provide you short delivery time. Standard products are in stock.
7.What's your MOQ?
A: No MOQ limits, so 1 piece for test purpose at first is acceptable.
8. What detailed information do we need to provide if we want to place an order?
A: Application, medium, medium temperature range, pressure range, output, accuracy, thread type, electric connector and other related parameters.
9. What types of payment terms and trade terms can you accept?
A: Payment terms: TT, Western Union, Money Gram, etc. Trade terms: Ex. Works, FOB, CNF, etc.
10. What express ways can you offer, can we use our own courier?
A: Yes, you can use your own courier, just for your convenience. Or goods will be sent to you by our couriers --DHL, TNT, UPS, SF, EMS.
| Prod Model: |
WP401B |
| Pressure Type: |
Gauge Pressure(G), Absolute Pressure(a), Sealed Pr |
| Process Connection: |
M20*1.5,1/4NPT,1/2NPT, Customized |
| Electrical Connector: |
DIN, |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Compensation Range: |
-10~70dgree C |
| Power Supply: |
24V DC |
| Name: |
Water Pressure Transducer |
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.
In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
