Dry Protection Water Pump Control (SKD-14)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
504/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SKD-14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Automatic |
| Rated Voltage: |
110V/220V |
| Frequency: |
50/60Hz |
| Max Current: |
30(16)a |
| Max Power: |
2.2kw |
| Setting Pressure: |
1.2bar/1.5bar/2.2bar |
| Connection: |
G1" |
| Type: |
Electronic |
| Application: |
Industrial |
| Brand: |
Yaoda |
Product Description
Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
3. Examine the water automatically
4. After cutting-off, start automatically with electric
5. Protect the pump from damage caused by overheat
6. Forced start
State LED:
1. Green LED lights up: The unit is off
2. Green LED and red LED flash alternately (in 1Hz): Pump in operation
3. Green LED and red LED flash alternately (Green LED 2.5S, Red LED 0.5S, flash alternately 3S/time): Pump stops, waiting to start.
4. Red LED lights up: System failure: After troubleshooting, restart the unit after the power is turned off for less than 5S can solve the state. (Anytime, press ON/OFF button lasts 3S, red LED lights up, the unit is forced protection).
Description of forced start
When pump stops, press ON/OFF button, green LED and red LED flash alternately (1Hz): If there was water in the pipe, the pump into constant pressure after 60S delay; If the pipe was in the absence of the water, pump into waiting restarted after 80S delay.
Description for the exam process:
While the pump is in the absence of the water, the unit will protect the pump from damage caused by dry-running after 30 seconds, the green LED and red LED will flash alternately in every 3 seconds; If the pipe is in the absence of the water continually, first step, the unit will start to exam the water for 4 times in every 15 mins, second step, it will last for 12 times in every 1 hour; Third step, it will last for 4 times in every 3 hours; And 4 times in every 6 hours; Finally, it will circling to exam in every 24 hours. The state of water shortage will not be solved until there is water in the pipe.
Technical parameters:| Rated voltage | 110V/230V |
| Max. Current | 30(16)A |
| Frequency | 60Hz/50Hz |
| Max. Power | 2.2KW |
| Joint Screw: | G1" |
| Starting pressure | 1.2-2.2bar |

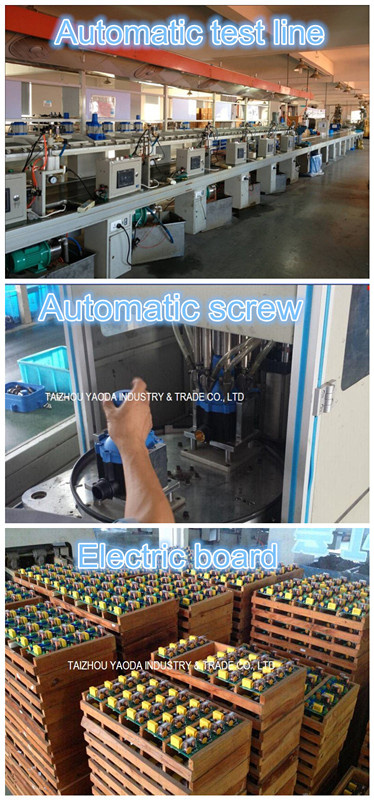

Production photos:
FAQ of Automatic pressure control:
1.Are you a manufacturer or a trading company?
A: We are a professional automatic pressure control manufacturer with over 20 years' experience.
2.What's your payment terms?
A: T/T, L/C is also acceptable.
3.What's your MOQ?
A: Trial order is OK.
4.What's your delivery time?
A: Finish the production within 30 days once we receive the advance.
5.What's your warranty for automatic pressure controller?
A:1 year warranty for pressure controller
6.Can we make the products with OEM?
A: Yes, of course. We can do oem for you.
7. Do you have any other pump accessories?
A: Yes, we are the manufacturer of pressure tank for water pump. Its capacity range is 1L-300L.
