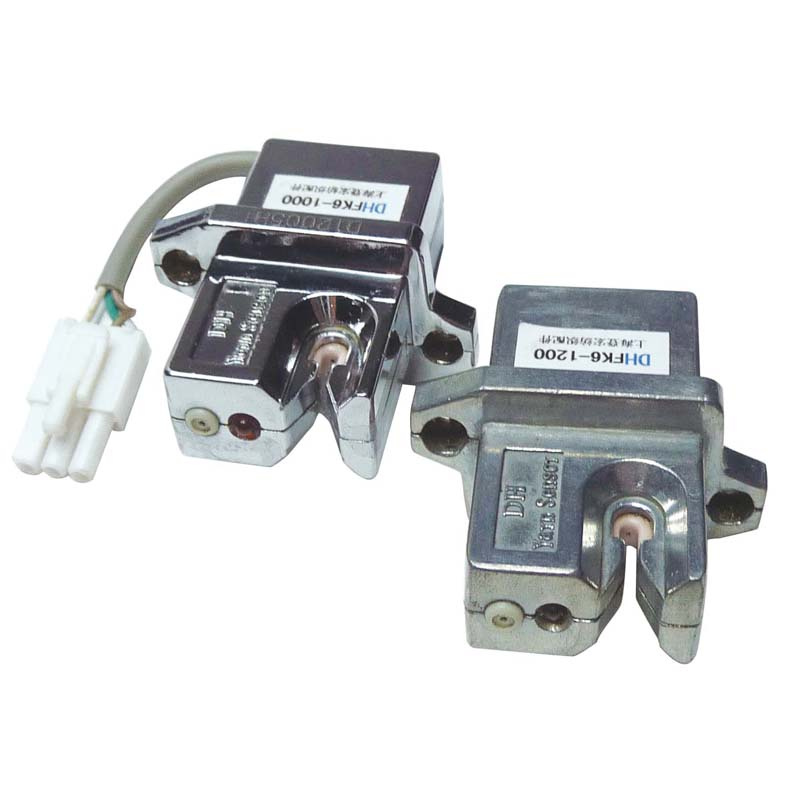

DTY Machinery Fk6 Yarn Sensor Barmag
Price: |
Negotiable/Piece |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Western Union |
Product Description: ITEM | DHYS007 FK6 1000(B) Barmag texturing machinery yarn break detector |
Material | Aluminum housing |
Current ouput | PNP output |
Working Voltage | 18~30 VDC |
Working current | MAX 1.2 A |
Static current | < 20 mA |
Response time | < 0.1 second |
Guarantee | One year without operation mistake |
Origin | Shanghai, China |
Application | Barmag texile machines |

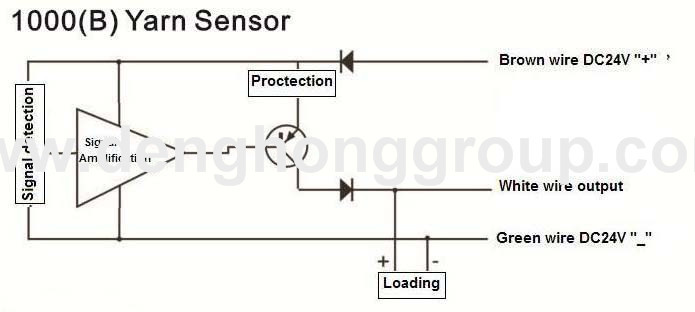

Circuit Connection:
Capacitive Yarn sensors are able to be used in Winding, doubling, texturing or Elasticizers and so on.
Main Function
Capacitive yarn sensor can detect the working of various yarns on textile machines. If the yarn breaks or stops, yarn sensor will inform the user via a flashing LED that a position is defective.
Working Principle
Capacitive yarn sensor probe will check tension variations produced by electrical charges of a moving yarn.
Company Information:Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities.
Samples are free, you only need pay the shipping fee.
Delivery time: Samples 1-3 working days and
Orders for 3-7 working days.Our srtongest point is that we consult. So anything you want to know about our products, please ask us!
Prod Model: |
DHYS007 |
Voltage: |
24VDC |
Output: |
PNP Output |
Type: |
Rubbing Static Electricity |
Production Process: |
Electric Board |
Material: |
Aluminum |
Application: |
Textile Machines |
