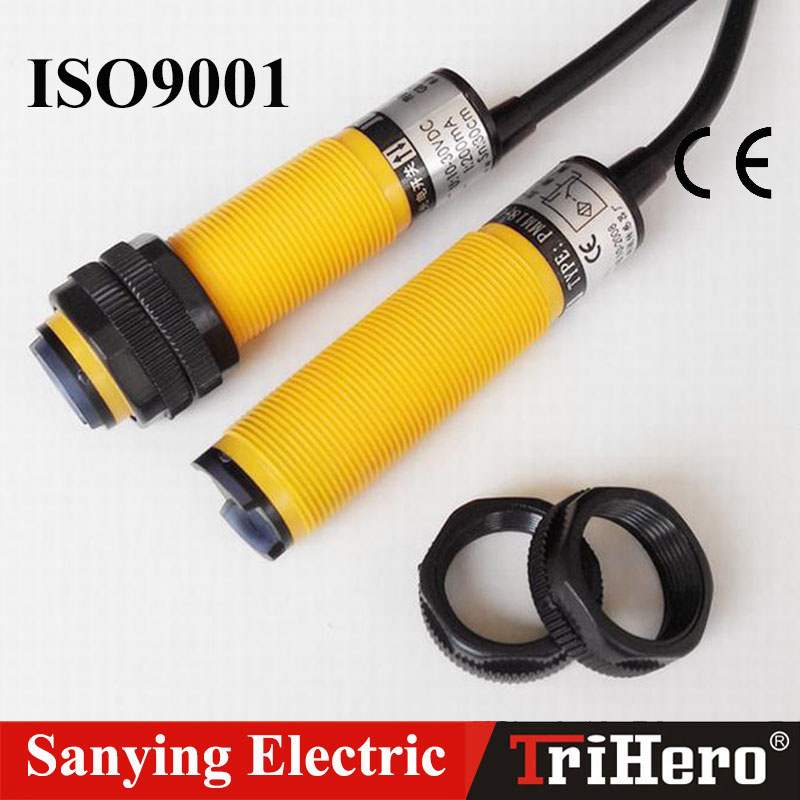

E3f-Ds Series Photo Sensor Switch

Name: E3f-Ds Series Photo Sensor Switch
Brand: all-electronics-online.com
SKU: 789586145
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

E3F-DS series Photoelectric Sensor

Specifications:

Mounting way				Diffuse type
Type	DC type	NPN	NO	E3F-DS10C4	E3F-DS20C4	E3F-DS30C4
			NC	E3F-DS10B2	E3F-DS20B2	E3F-DS30B2
			NO+NC	E3F-DS10C3	E3F-DS20C3	E3F-DS30C3
		PNP	NO	E3F-DS10P1	E3F-DS20P1	E3F-DS30P1
			NC	E3F-DS10P2	E3F-DS20P2	E3F-DS30P2
			NO+NC	E3F-DS10P3	E3F-DS20P3	E3F-DS30P3
		Two-wire	NO
			NC
	AC type	Two-wire	NO	E3F-DS10Y1	E3F-DS20Y1	E3F-DS30Y1
			NC	E3F-DS10Y2	E3F-DS20Y2	E3F-DS30Y2
		Three-wire	NO
Delection range				10cm ± 10%	10-20cm ± 10%	10-30cm ± 10%
Delection range regulation				Fixed	Sensitivity adjuster	Sensitivity adjuster
Connection delay				1.5ms
Light source				infrared light 660nm
Supply voltage				DC type:DC12-24V(6-36V)Impulse(p-p)10% below AC type:AC110-220V(90-250V)50/60Hz
Withstand voltage				AC1000V 50/60HZ 1min between charging part and housing
Voltage influence				Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current				N.P type:13mA below, D type:0.8mA below, A type:1.7mA below below,A type:1.7mA below
Control output				N.P type: 300mA below,D type:200mA below,A type:400mA below
Loop protection				N.P.D type: reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption
Ambient temperature & humidity				During operation,storage:individually-30~+65ºC (no freeze,no drew),During operation, storage:individually 35~95%RH
Temperature influence				Temperature range -30-+65ºC,at+23ºC, ±15%detection distance Temperature range -25-+60ºC,at+23ºC, ±10%detection distance
Insulation impedance				50MΩ above(DC500 megameter)between charging part and housing
Material				Housing:Nickel plated brass Detection surface:ABS
Protection level				IP67( IEC specification)

Prod Model:	E3F-DS
Sensing Method:	Diffuse Type
Delection Range:	10cm
Materials:	Housing:Nickel Plated Brass Detection Surfa
Control Output:	N.P Type: 300mA Below,D Type:200mA Below,a Type:40
Light Source:	Infrared Light 660nm

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
