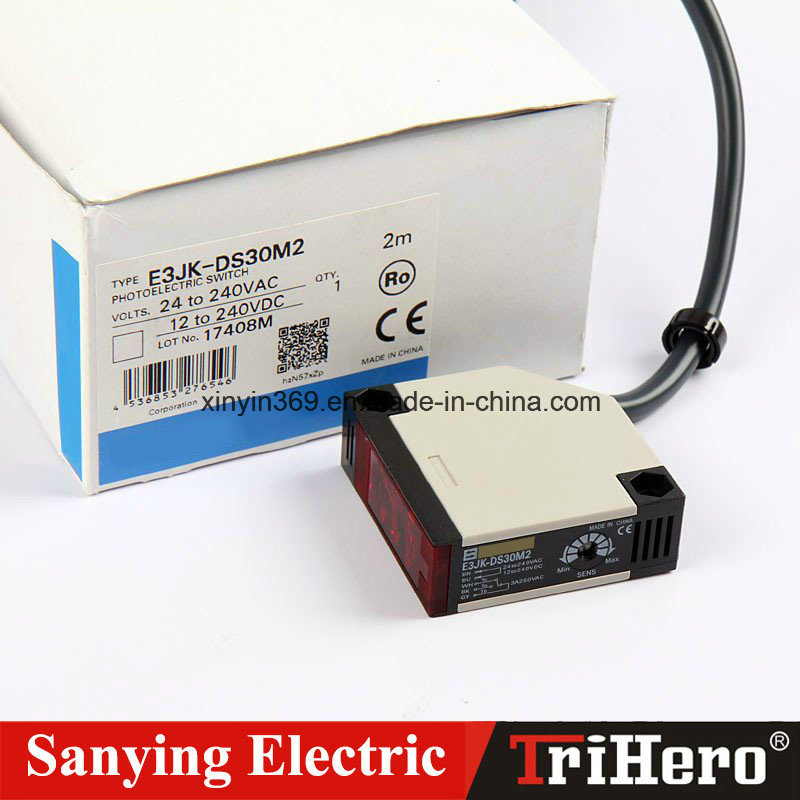

Built-in Power Supply Photoelectric Sensor
E3JKFeatures:Long sensing distance that is approximately 8 times that of our conventional model (for the Through-beam and Diffuse-reflective models).
(Through-beam: 40 m, Retro-reflective: 7 m, and Diffuse-reflective: 2.5 m.)
Improved visibility:
• A red LED that makes the spot visible.
• Large indicators that can be seen even from a distance.
Improved operability.
(Enlarged sensitivity adjuster and operation selector)
Freely selectable power supply input (24 to 240 VDC, 24 to 240 VAC).
(Additional types added to the DC type lineup.)
Models with infrared LEDs are also available.
Specifications:| Sensing method | Diffuse-reflective |
|---|
| Model | E3JK-DR11-[] | E3JK-DR12-[] | E3JK-DR13-[] | E3JK-DR14-[] |
|---|
| Sensing distance | White paper
(300 × 300 mm): 2.5 m | White paper
(100 × 100 mm): 300 mm | White paper
(300 × 300 mm): 2.5 m | White paper
(100 × 100 mm): 300 mm |
|---|
| Standard sensing object | - |
|---|
| Differential travel | 20% max. of sensing distance |
|---|
| Directional angle | - |
|---|
| Light source (wavelength) | Red LED (624 nm) | Infrared LED (850 nm) |
|---|
| Power supply voltage | 24 to 240 VDC ±10%,
ripple (p-p): 10% max.
24 to 240 VAC ±10%, 50/60 Hz |
|---|
Power
consumption | DC | 2 W max. |
|---|
| AC | 2 W max. |
|---|
| Control output | Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1),
5 VDC, 10 mA min.,
Light-ON/Dark-ON selectable |
|---|
| Protection circuits | Mutual interference prevention function |
|---|
Life
expectancy
(relay output) | Mechanical | 50,000,000 times min. (switching frequency: 18,000 times/h) |
|---|
| Electrical | 100,000 times min. (switching frequency: 1,800 times/h) |
|---|
| Response time | 20 ms max. |
|---|
| Sensitivity adjustment | One-turn adjuster |
|---|
Ambient illumination
(Receiver side) | Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max. |
|---|
| Ambient temperature range | Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation) |
|---|
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
|---|
| Insulation resistance | 20 MΩmin. at 500 VDC |
|---|
| Dielectric strength | 1,500 VAC, 50/60 Hz for 1 min |
|---|
Vibration
resistance | Destruction | 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions |
|---|
| Malfunction | 10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions |
|---|
Shock
resistance | Destruction | 500 m/s2 for 3 times each in X, Y, and Z directions |
|---|
| Malfunction | 100 m/s2 for 3 times each in X, Y, and Z directions |
|---|
| Degree of protection | IEC 60529 IP64 |
|---|
| Connection method | Pre-wired (standard length: 2 m) |
|---|
| Weight (packed state) | Approx. 180 g |
|---|
| Material | Case | ABS (Acrylonitrile Butadiene Styrene) |
|---|
Lens/Display
window | Methacrylic resin |
|---|
| Adjuster | POM |
|---|
| Cable | PVC |
|---|
| Bending radius of cable | R18 |
|---|
| Accessories | Instruction manual and Mounting Bracket (E3JK-DR1[]-C only) |
|---|
