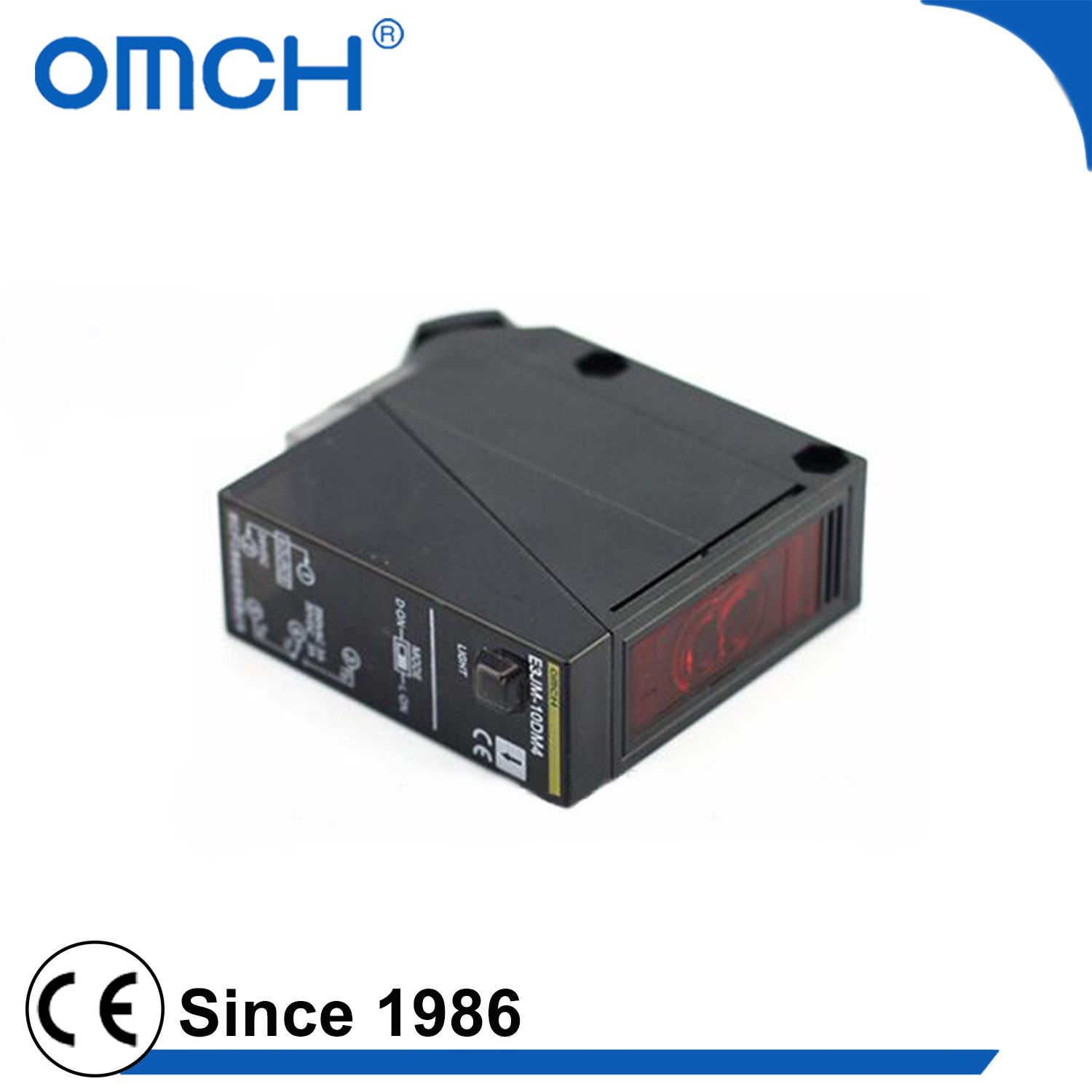

E3jm 4m Relay Output Reflectior Photoelectric Infrared Sensor Switch

Name: E3jm 4m Relay Output Reflectior Photoelectric Infrared Sensor Switch
Brand: all-electronics-online.com
SKU: 840549405
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

E3JM 10m Relay Output Photocell Through Beam Sensor Switch

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Multiple functions, built-in relay, can drive high current load
Cabling type and connection terminal type
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it's available to derect the sensor operating state
Countermeasure to improve the housing intensity and to solve disconnection
Can provide time-delay output type
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

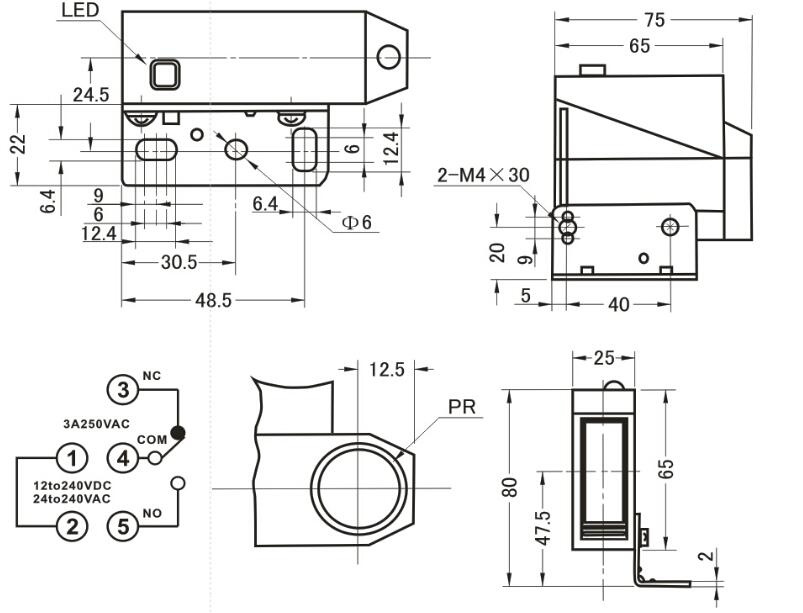

Dimension (mm)			25×65×75
Detection method			Diffuse type	Feedback reflection	through beam type
type	Relay outpu	DC illuminate	E3JM-DS70M4	E3JM-R4M4	E3JM-10DM4-10L
		AC illuminate	E3JM-DS70M4	E3JM-R4M4	E3JM-10DM4-10L
		DC non-illuminate	E3JM-DS70M2	E3JM-R4M2	E3JM-10DM2-10L
		AC non-illuminate	E3JM-DS70M2	E3JM-R4M4	E3JM-10DM2-10L
Detection range			70cm±10%	4m±10%	10m±10%
Detection target			Transparent/Opaque object	Opaque object	Opaque object
Detection range regulation			Sensitivity adjuster	Sensitivity adjuster	Fixed
Response time			30ms	30ms	30ms

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Prod Model:	E3JM
