E3s 30cm Built-in Diffuse Reflection Photoelectric Motion IR Sensor Switch

Name: E3s 30cm Built-in Diffuse Reflection Photoelectric Motion IR Sensor Switch
Brand: all-electronics-online.com
SKU: 840547845
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

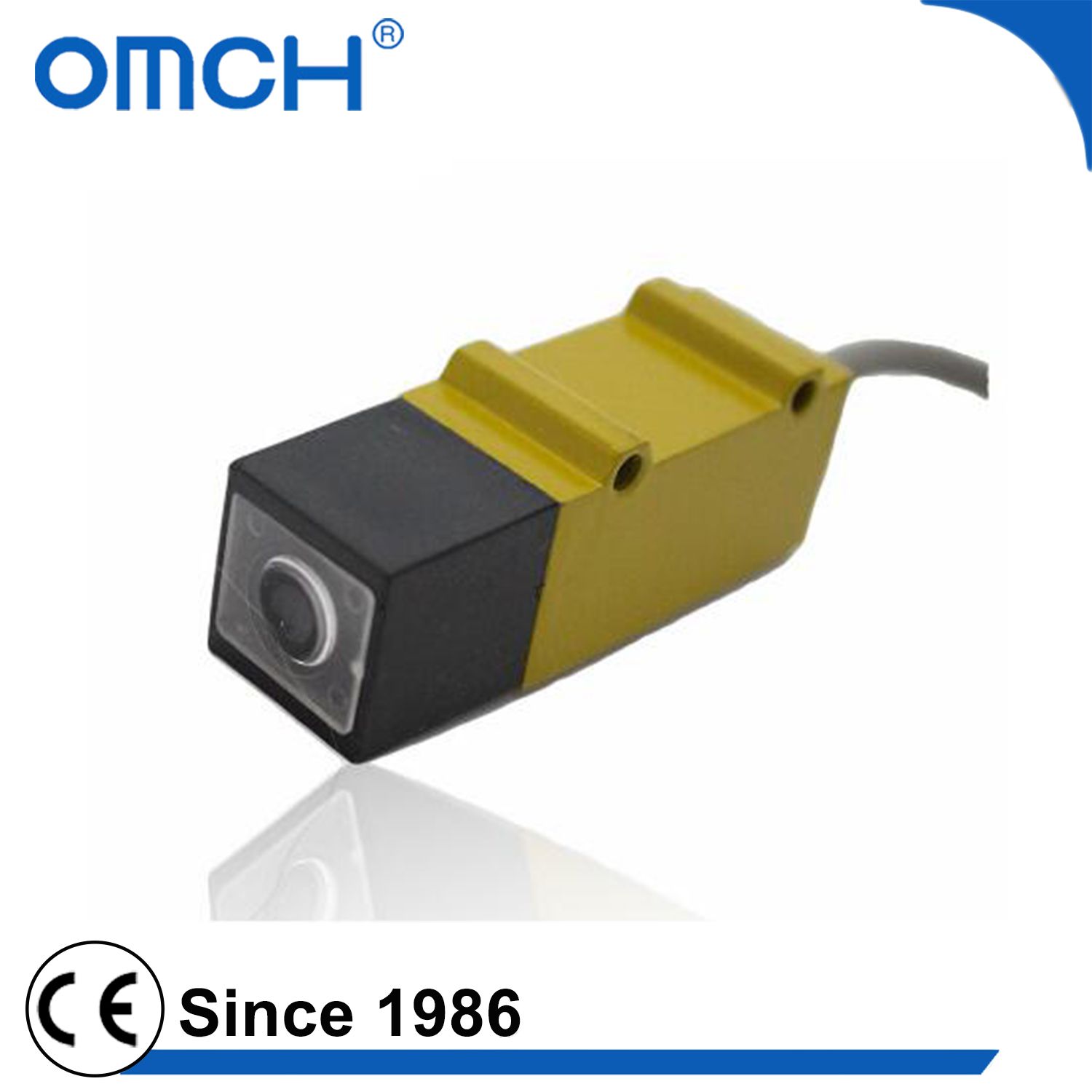

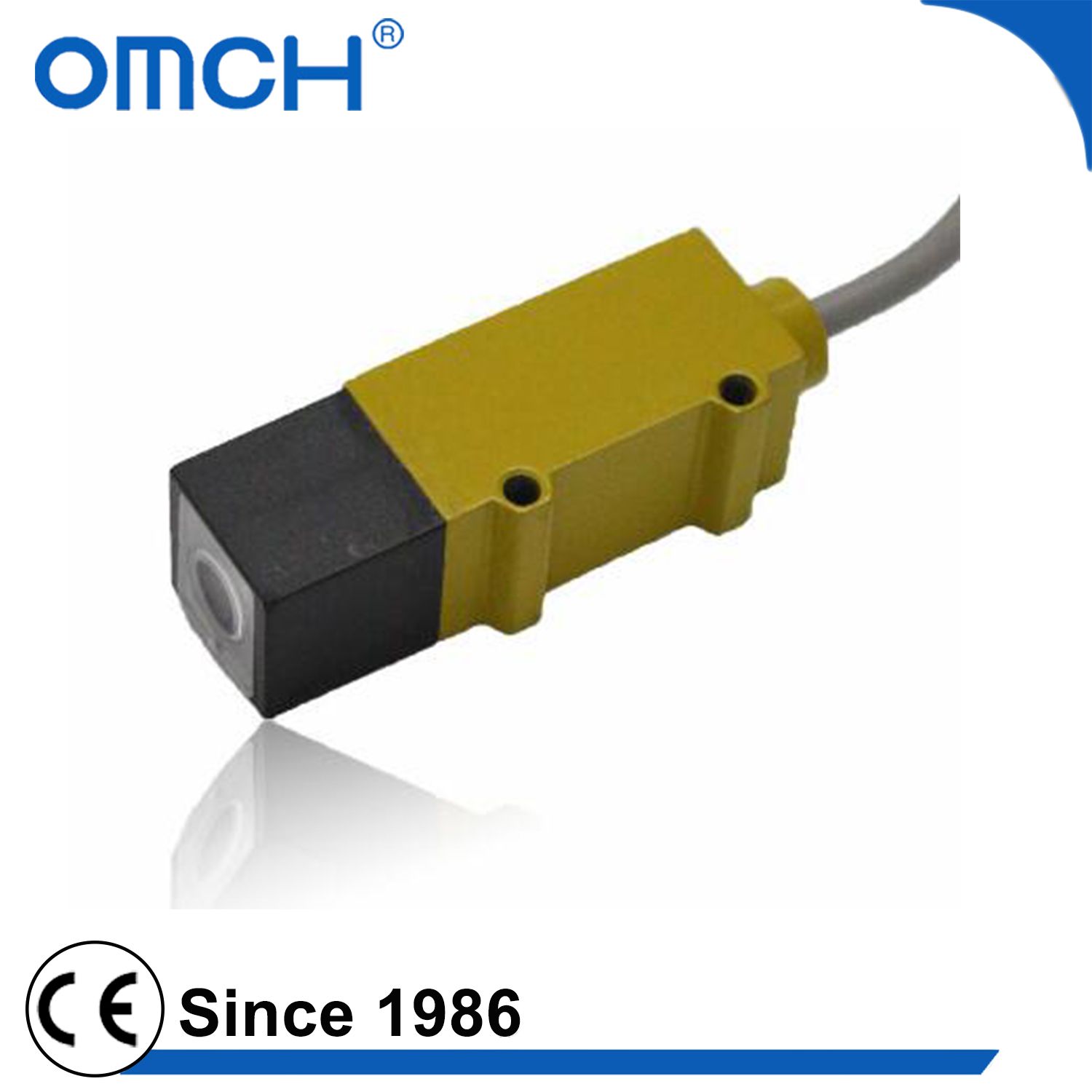

E3S 30cm Built-in Diffuse Reflection Photoelectric Motion IR Sensor Switch

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Multiple functions, built-in relay, can drive high current load
Cabling type and connection terminal type
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it's available to derect the sensor operating state
Countermeasure to improve the housing intensity and to solve disconnection
Can provide time-delay output type
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

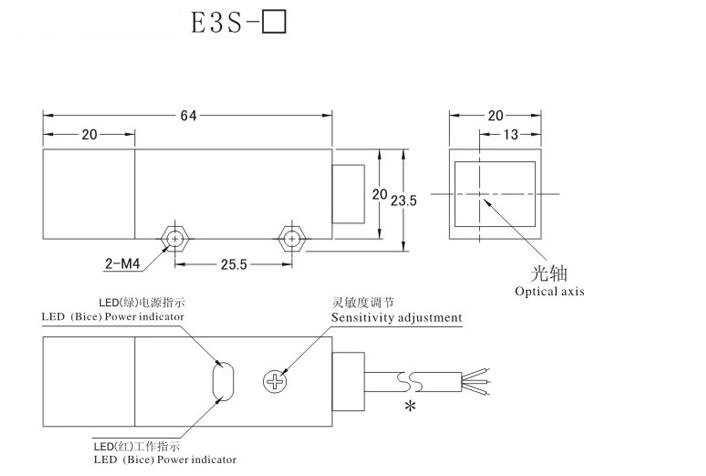

Dimension				202064
Mounting way				Transmission type	Feedback reflex	Transmission type
Type	DC type	NPN	NO	E3S-DS30N1	E3S-R2N1	E3S-5DN1-5L
			NC	E3S-DS30N2	E3S-R2N2	E3S-5DN2-5L
			NO+NC	E3S-DS30N3	E3S-R2N3	E3S-5DN3-5L
		PNP	NO	E3S-DS30P1	E3S-R2P1	E3S-5DP1-5L
			NC	E3S-DS30P2	E3S-R2P2	E3S-5DP2-5L
			NO+NC	E3S-DS30P3	E3S-R2P3	E3S-5DP3-5L
		NPN/PNP/NO/NC
	AC type	Two wire	NO	E3S-DS30A1	E3S-R2A1	E3S-5A1
		Two wire	NC	E3S-DS30A2	E3S-R2A2	E3S-5A2
		Three Wire No
		Reply output
Dectection distance				30cm±10%	2m±10%	5m±10%
Set distance				Transparent/Opaque Object	Opaque Object	Opaque Object
Standard detection object				Sensitivity	Fixed	Fixed
Response frequency				DC: 1ms; AC:30ms

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Prod Model:	E3S

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
