E3z-D61 10cm 50cm Diffuse Rectangular Photo Optical Sensor Switch

Name: E3z-D61 10cm 50cm Diffuse Rectangular Photo Optical Sensor Switch
Brand: all-electronics-online.com
SKU: 840552945
Availability: InStock
Rating: 4.9 (99 reviews)

Price:	US $ 2-15piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

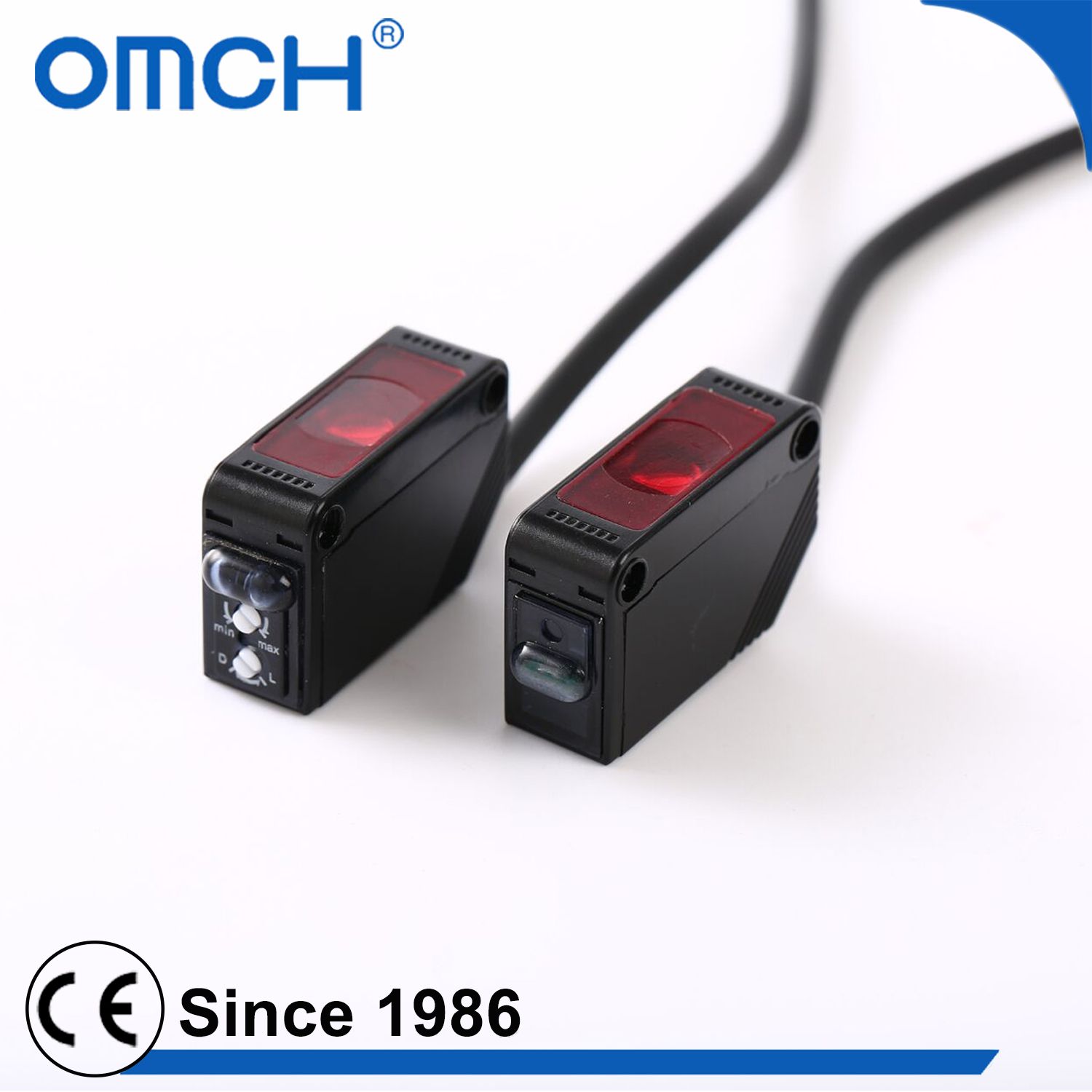

E3Z-D61 10cm 50cm diffuse rectangular photo optical sensor switch

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Newly added current over-load protection

Long service life, high reliability and strong resistance property to environment

Red LED indicates that it's available to detect the sensor operating state

Newly added metal housing to improve the installation intensity

Countermeasure to improve the housing intensity and to solve disconnection

IP67 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

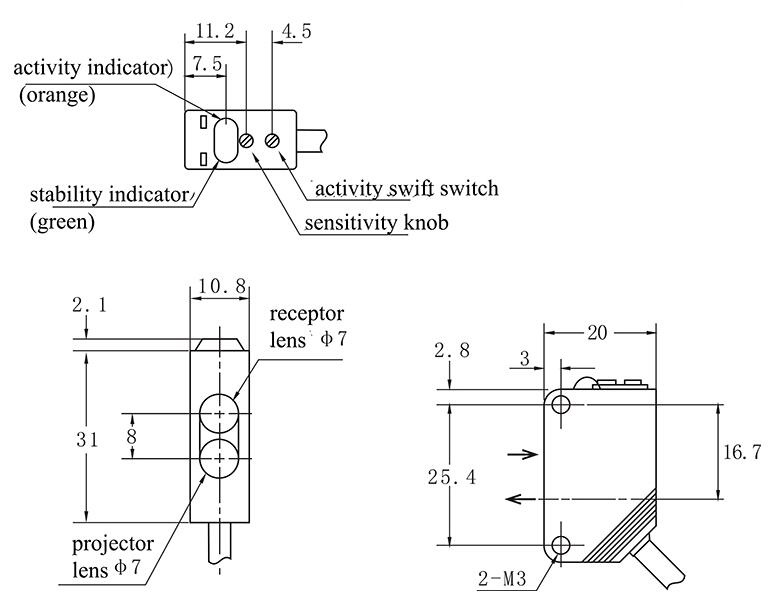

Dimension				31x20x10.8
Mounting way				Diffuse type
Type	DC type	NPN	NO	E3Z-D61
			NC
			NO+NC
		PNP	NO	E3Z-D81
			NC
			NO+NC
	AC type	Two wire	NO
			NC
Detection distance				5-10cm±10%
Set distance				Transparent/Opaque Object
Standard detection object				sensitivity adjuster Response time
				1ms

Connection delay	1.5ms
Light Source	Infrared light 660nm
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:20mA below A type:1.7mA below
Control output	N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection sturcture	IP67 ICE specification
material	Nickel plated brass(ABS); Detection surface(lens)PMMA

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Prod Model:	E3Z-D61
