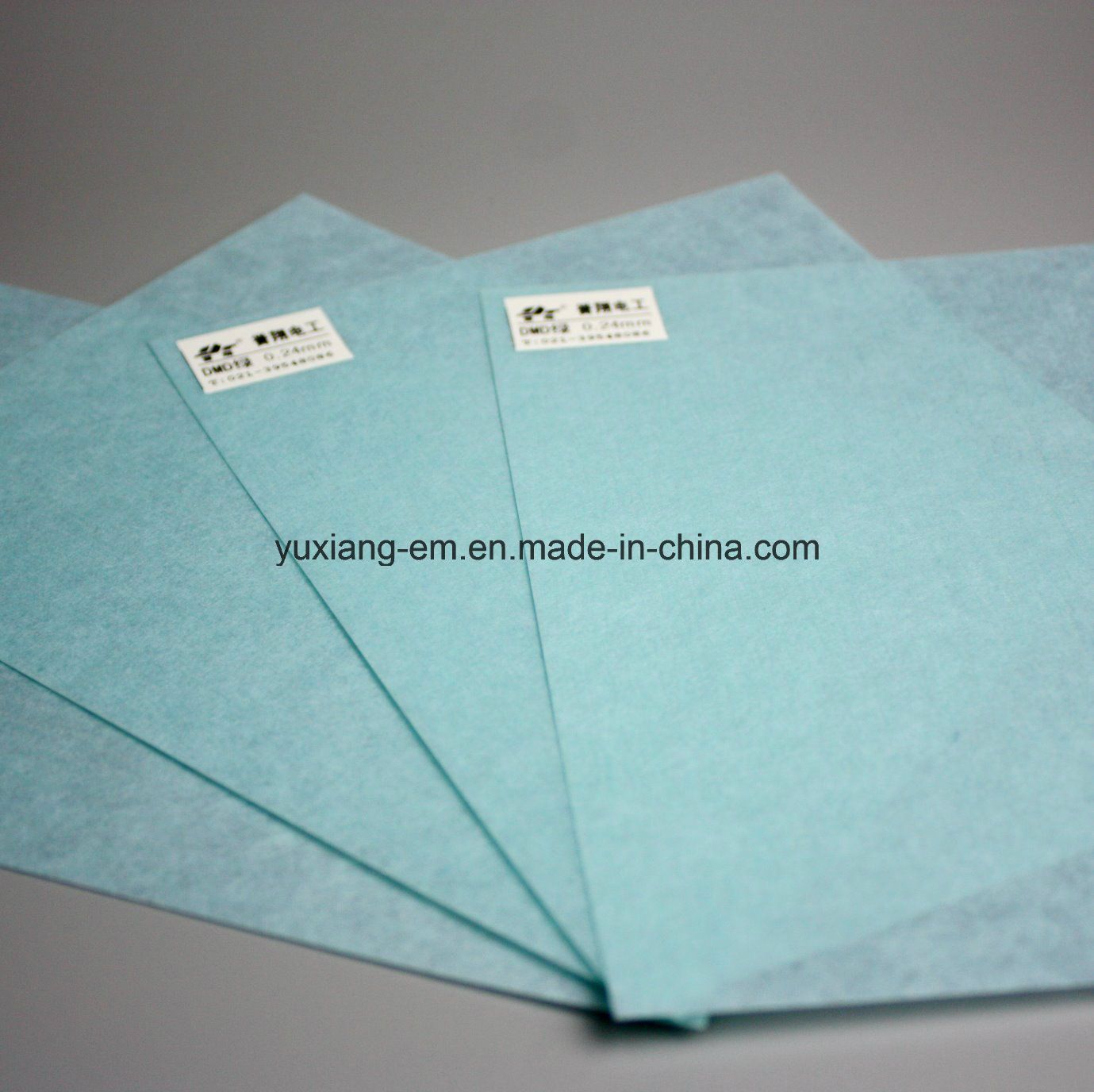

Electrical Insulation Material DMD (F Class) Insulation Paper (Green-All Colour)

Name: Electrical Insulation Material DMD (F Class) Insulation Paper (Green-All Colour)
Brand: all-electronics-online.com
SKU: 806909945
Availability: InStock
Rating: 5 (65 reviews)

Price:	US $ 1.95-4.5kg
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	6641
Application:	Transformer
Type:	Insulation Paper
Chemistry:	Organic Insulation
Thermal Rating:	F 155
Material:	Nonwoven and Polyester
Color:	All Colour
Brand:	Yuxiang\Yohann

Product Description

Class F(155ºC)
Good mechanical properties
Absorbs well impregnation varnishes and resins

General description
Yuxiang® DMD is composed of two layers of non-woven fabric and a layer of polyester film,with high heat-resistant adhesive for gluing pressing of three soft composite material.
Application
Yuxiang® DMD is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 155ºC. It is used in low or medium voltage rotating machines as ground and slot insulation. It can be used as well as intermediate layer in transformers.

Typical properties

Product	Construction	Thickness	Weight	Tensile Strength			BDV		Thermal Aging Test
Product	Construction	Thickness	Weight		MD	TD	BDV		Thermal Aging Test
		mm	g/m2		N/cm		KV
DMD70	2/1/2	0.13	125.0±10%	≥	90.0	70.0	≥	7.0	180ºC 10min
	2/2/2	0.15	160.0±10%	≥	120.0	80.0	≥	7.0
	2/3/2	0.18	198.0±10%	≥	120.0	105.0	≥	8.0
	2/4/2	0.20	230.0±10%	≥	130.0	125.0	≥	9.0
	2/5/2	0.23	265.0±10%	≥	180.0	155.0	≥	10.0
	2/6/2	0.25	290.0±10%	≥	200.0	180.0	≥	14.0
	2/7.5/2	0.30	350.0±10%	≥	230.0	200.0	≥	13.0
	2/10/2	0.35	440.0±10%	≥	300.0	270.0	≥	18.0
	2/12/2	0.40	500.0±10%	≥	380.0	350.0	≥	20.0
	2/14/2	0.45	560.0±10%	≥	400.0	350.0	≥	22.0
DMD100	2/1/2	0.13	130.0±10%	≥	90.0	70.0	≥	7.0	180ºC 10min
	2/2/2	0.15	165.0±10%	≥	120.0	80.0	≥	7.0
	2/3/2	0.18	203.0±10%	≥	120.0	105.0	≥	8.0
	2/4/2	0.20	235.0±10%	≥	130.0	125.0	≥	9.0
	2/5/2	0.23	270.0±10%	≥	180.0	155.0	≥	10.0
	2/6/2	0.25	295.0±10%	≥	200.0	180.0	≥	14.0
	2/7.5/2	0.30	355.0±10%	≥	230.0	200.0	≥	13.0
	2/10/2	0.35	445.0±10%	≥	300.0	270.0	≥	18.0
	2/12/2	0.40	505.0±10%	≥	380.0	350.0	≥	20.0
	2/14/2	0.45	565.0±10%	≥	400.0	350.0	≥	22.0
Test method:GB/T 5593.3-2008 or IEC 60626-2:1995

Shelf life
The shelf life of Yuxiang® DMD series is in excess of one year when stored at room temperature.

Form of delivery
Jumbo rolls: 25~200kg/roll, 1580mm width, 76mm paper cores
Strips: 6mm~1580mm width according to customer requirements, maximum roll diameter 400mm.
