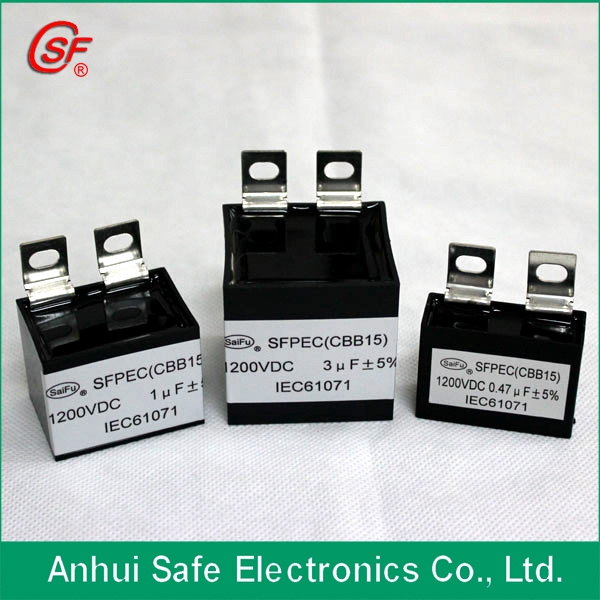

Extra High Voltage High Frequency Inverter Resonance Capacitors

Name: Extra High Voltage High Frequency Inverter Resonance Capacitors
Brand: all-electronics-online.com
SKU: 783771945
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

extra high voltage high frequency inverter resonance capacitors

Features:
1.Used in high-power high-frequency switching power supply of high-frequency pulse current absorption, filter
2.Low ESR, high ripple current and Large current shock handling capabilities
3. Low Ls, good high frequency characteristics
4.Self-healing property
5.Long lifetime
6.Plastic case, Filled with resin

Applications:
2.Used in high frequency switching power supply filter, absorption, blocking, resonant circuit
3. Widely applied to EMI, Such as high frequency welding inverter, UPS, electric vehicles, etc.

Technical Specification:

Cn (μF)	Un (V)	Imax (A)	dv/dt (V/μs)	Ls (nH)	U t-t (V)	U t-c (V)	tgδ (20ºC,10kHz)	Size (mm)
CBB15(SFPEC)
0.47	1200VDC	7	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	46×18×34
1	1200VDC	15	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	46×34×36
2	1200VDC	25	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	50×46×50
3	1200VDC	35	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	50×46×50
30	1250VDC	30	200	≤10	1800V, 10S	3000VAC,60S	≤100×10-4	74×46×49
40	1250VDC	40	200	≤10	1800V, 10S	3000VAC,60S	≤100×10-4	75×50×44
CBB16(SFPEC)
2	500VAC	25	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	63×49
3	500VAC	35	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	63×49
4	500VAC	50	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	63×49
5	500VAC	60	1300	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	63×49
6	500VAC	80	1400	≤10	1800V, 10S	3000VAC,60S	≤10×10-4	76×49
10	1400VDC	18	200	≤10	1800V, 10S	3000VAC,60S	≤30×10-4	50×60
20	1400VDC	35	200	≤10	1800V, 10S	3000VAC,60S	≤50×10-4	50×60
50	350VAC	35	200	≤10	600V, 10S	3000VAC,60S	≤55×10-4	50×60

Note:Other specifications and size outside table are negotiable.

Prod Model:	cbb15 capacitor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Saifu/Csf
Rated Voltage:	200VAC-500VAC
Operating Temperature:	40/85/21
Terminal:	Lead Wire,Pin or Cable (Also Customize)
Shape:	Square
Shell:	Plastic
Outer Shape:	Oval
Protection Class:	P0,P2
Certificate:	UL,TUV,CQC,ISO9001,SGS
Factory:	Anhui Safe Electronics Co.,Ltd
Type:	Polystyrene-film-capacitors
Application:	Washing Machine
Package Type:	Through Hole
Capacitance:	1~60UF
Structure:	Film Capacitor
Electrolyte:	Castor Oil
Usage:	Fan/AC/Motor
Tuning:	Film Capacitor
Filter:	Film Capacitor
