| Prod Model: |
F21-4SD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
F21-4SD Industrial Wireless Remote Control |
| Control Distance: |
100m |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature: |
-35°c___+80°c |
| Enclosure Protection Class: |
IP65 |
| Transmitter Power: |
DC3V |
| Output Capacity: |
5 Amperes |
| Control Point: |
4/6 |
| Certificate: |
CE, FCC, ISO9001:2008 |
| Receiver Power: |
AC 380V/ 36V/220V or DC12V/24V |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Application: |
Cranes, Hoists, Heavy Trucks, Excavator, Trailer, |
| Voltage: |
AC380V/ 36V/220V or DC12V/24V |
Product Description

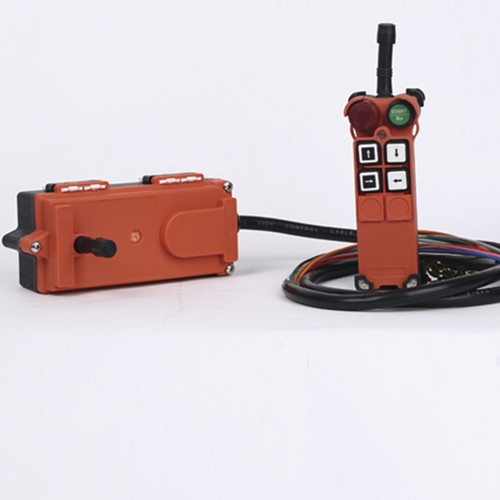

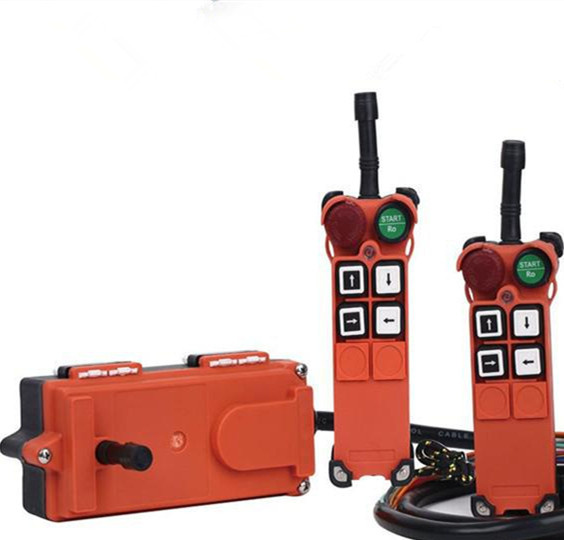

F21-4SD Industrial Wireless Remote Control for Crane and Hoist
Brief introduction:
1.With more than 10 years experience on this electric Hoists remote controls business area .
2.Our main products is :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control and explosion-proof remote controls.
3. Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality
4. One year warranty.
5. competitive price with excellent quality and good after-sales service.
6. OEM acceptable.
Products Application:
Single hook,Single speed hoist and Hoist crane and for Electric Hoists remote controls l use which under 4 control points etc.
Brief Introduction:
Transmitter Size:196*65*53mm weight:320g
Receiver Size:171*86*85mm weight:550g
Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
SPECIFICATION:
Application | Hoist, winches, lifts, doors and other industrial machine |
Frequency | 310.0325~331.165Mhz |
Frequency generation: | Crystal (plug in) |
Channel | 80 |
Channel Spacing | 0.2675MHz |
Control motions | 4/6 |
Control distance | Up to 100m |
Certificates | CE, FCC, ISO9001:2008 |
Number of push button | 4 Single/Double speed push button +1 start+1 stop |
Unique code | Over 4.3billon unique ID codes . |
Working temperature | -35°C ~ +80°C |
Enclosure protection class | IP65 |
Transmitter power | AA-size batteries |
Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
Output capacity | Full sealed relay output with 5 amperes |
Warranty | 1 year |
Material | glass fiber |

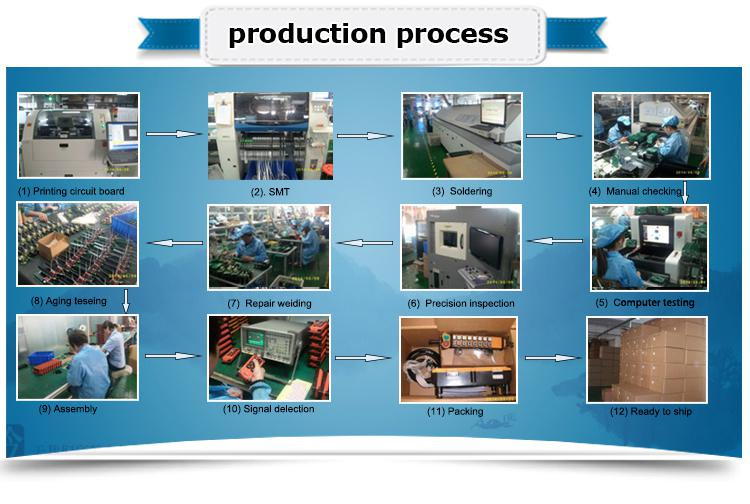

Production Process:
Certificates:
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
