F21-E1 Industrial Wireless Radio Remote Control for Bridge Crane
| Price: |
US $ 80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |
| Prod Model: |
F21-E1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
F21-E1 |
| Product Name: |
Radio Remote Control for Crane |
| Frequency Generation: |
Crystal |
| Remote Control: |
Push Button |
| Frequency: |
310.0325~331.165MHz |
| Channel: |
6 |
| Push Button: |
6 |
| Application: |
Industrial Machinery |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 380V/110V/ 48V/36V/220V or 12V/24V |
Product Description

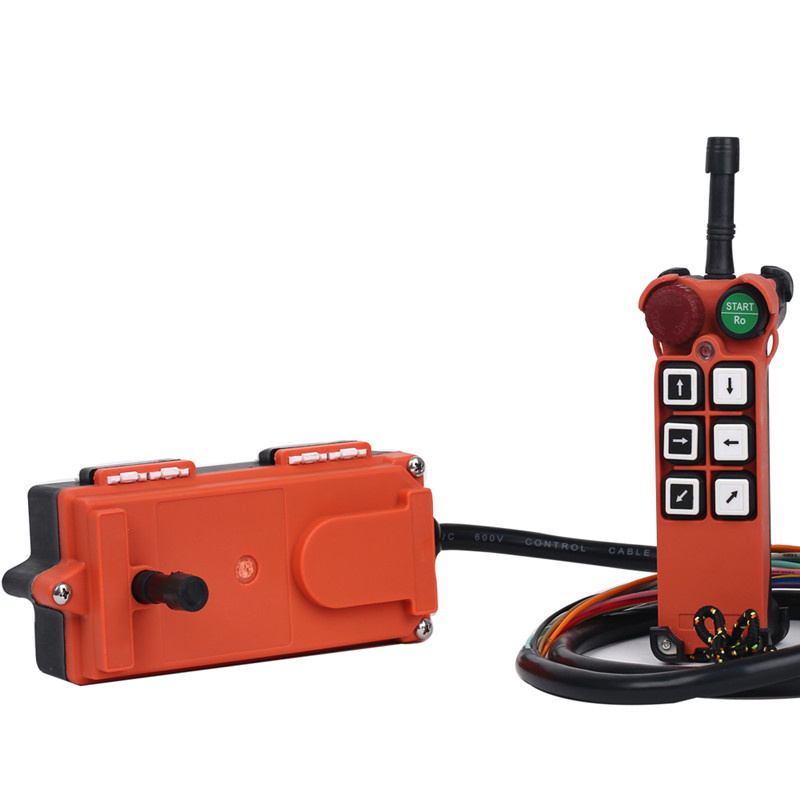

F21-E1 industrial wireless radio remote control system for bridge crane
Company advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001: 2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable F21-E1 Photo: Features:
*6 Single speed push buttons +one EMGS button+ one START button + one SWITCH
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down, east/west, south/north push button can be set start, close, speed up, jump strokes, ordinary etc
radio remote control
Specification:| Control distance | Up to 100m |
| Unique code | Over 4.3billon unique ID codes. |
| Temperature | -35° C~+80° C |
| Enclosure protection class | IP65 |
| Transmitter power | DC3v |
| Receiver powder | AC 380v/ 36v/220V or DC12V/24V |
| Output capacity | Full sealed relay output with 5 amperes (using ac 250v/10A relay, 5 amp fuse) |
Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual.
Application:
Single hook electric cable hoist, monorails, single speed electric hoist or electric single speed hoist crane, and used for the industrial remote control which are under 6 connection

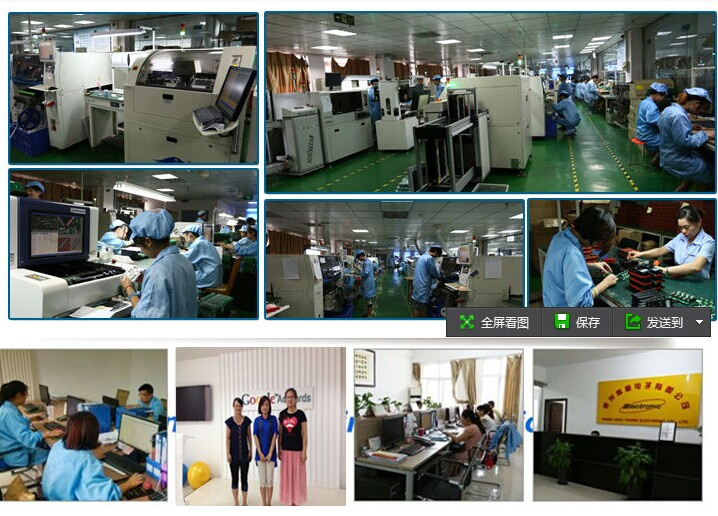

Our Factory
