| Prod Model: |
F24-12D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Industrial Wireless Remote Control |
| Control Distance: |
up to 100m |
| Model No: |
F24-12D |
| Direction: |
18 |
| Relay No: |
20 |
| Push Button No: |
12 |
| Speed: |
Double Speed |
| Frequency Generation: |
Crystal |
| Certificates: |
Ce, FCC, ISO9001:2008 |
| Working Temperature: |
-35°c___+80°c |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 380V/220V/110V/48V/36V/24V or DC12V |
Product Description

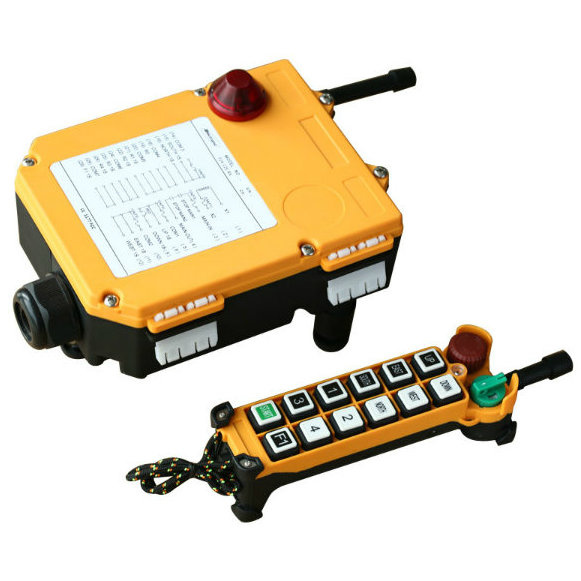

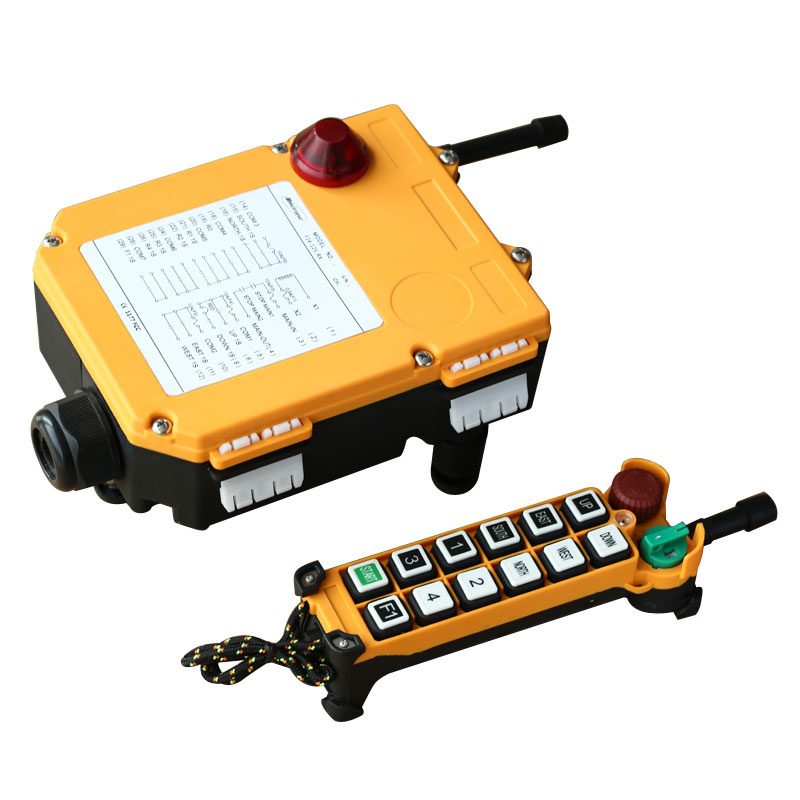

F24 Series F24-12D Double speed industrial wireless remote control for overhead craneBrief information:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.Application:Single hook/Double speed hoist crane, double hook/single spped hoist crane. And used for the industrial remote control which are under 18 connectionBrief IntroductionTransmitter size: 239*65*65mm weight: 255g
Receiver size: 200*165*227mm weight: 1400g
Photos:
Specification of remote control: | Control distance | Up to 100m |
| Unique code | Over 4.3billon unique ID codes. |
| Temperature | -35° C~+80° C |
| Enclosure protection class | IP65 |
| Transmitter power | DC3V |
| Receiver powder | AC 380V/ 36V/220V or DC12V/24V |
| Output capacity | Full sealed relay output with 5 amperes |
Standard configuration:One transmitter;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual.Packing
Features:* 12 Dual speed push button + one EMGS button+one STOP button + one START button + one SWITCH key
* control points are up to 18
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*up/down, east/west, south/ north push button can be set mutual inhibition or not.
*power button can be set start, speed up, jump strokes, ordinary etc.

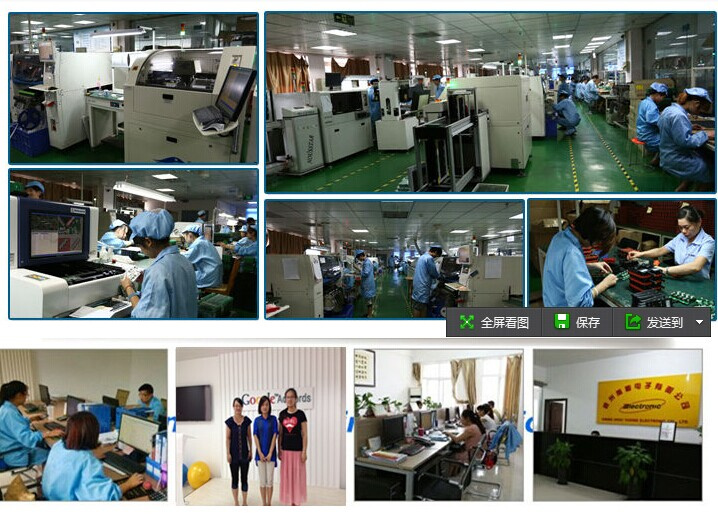

*spare 1-2, 3-4 key can be set ordinary, interlock, jump strokes, switch etc.Our Factory :
