Henan Dirk Electronic Co., Ltd. >> F24-6D 6 Button Double Speed Industrial Crane Radio Remote Controller

F24-6D 6 Button Double Speed Industrial Crane Radio Remote Controller

F24-6D 6 Button Double Speed Industrial Crane Radio Remote Controller
Price: US $ 268/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union

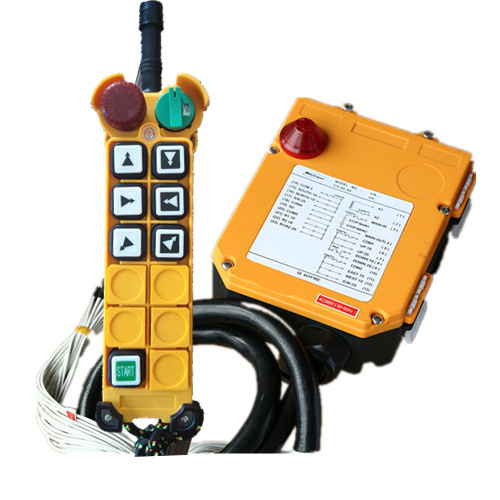

F24-6D 6 button double speed industrial crane radio remote controller


Brief introduction:
1.More than 10 years researching and exporting experience in Radio Remote Control industry.

2.More than 20 people R&D working team, have the ability to research and develop new product independently.

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT

 machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.

4. Well and high quality control, all working process according to ISO9001:2008.

5. CE, FCC & ISO certificates.

6. OEM acceptable

7. One year warranty

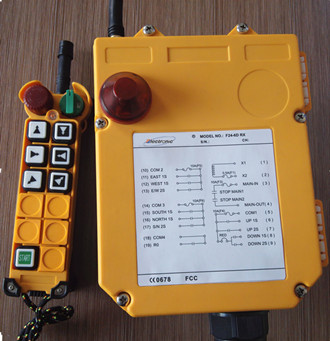

Photos:


Specification:


Application

Overhead cranes, hoist ,chain hoist and other industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

10

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

6 Double speed push button+1 start+1 stop

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber



Standard configuration:

                          One transmitter;

                          One receiver;

                          One 1m cable connect with receiver;

                          One operation and maintain manual


Feature:

*6 Dual speed push buttons +one EMGS button+ one START button+ one STOP button + one SWITCH

* control points up to 10

* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.

* with the Rotate key switch to guarantee the safety.

* set the internal functions by computer interface

* up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc.

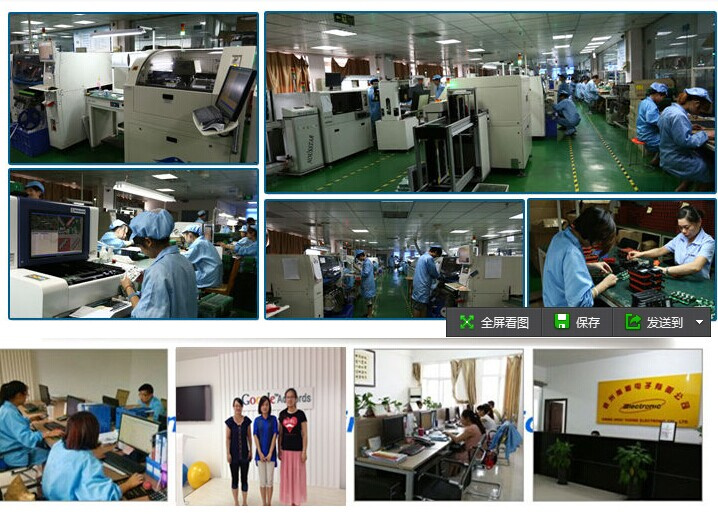

Our Factory:
Our Certificate:( CE , FCC ID ,ISO )


If you are interest this products; please feel free to contact us







Prod Model: F24-6D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No: F24-6D
Speed: Double Speed
Control Distance: 100m
Application: Industrial Machinery
Signal Transmission: Radio Waves
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: >100m
Voltage: 3V
Material: Plastic
Battery Type: AA Battery
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
