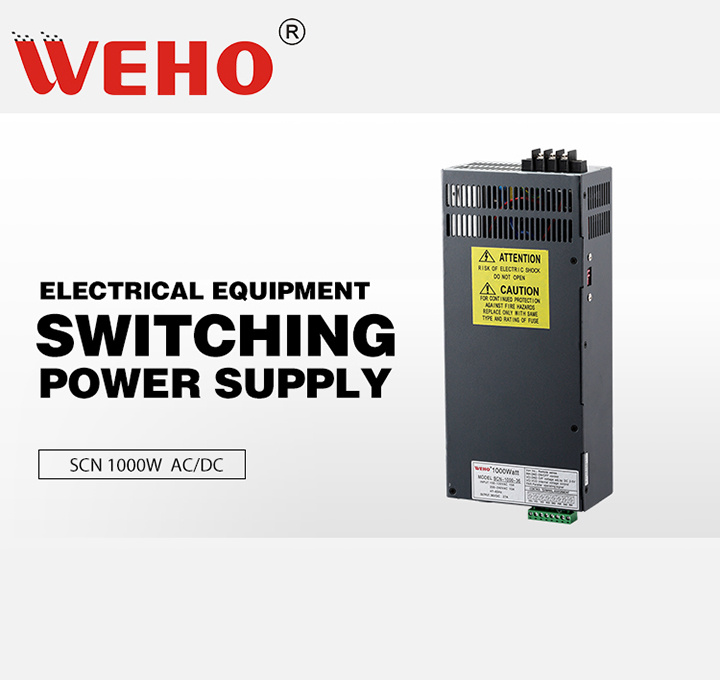

Factory Price 1000W 220V 12V Switching Power Supply

Name: Factory Price 1000W 220V 12V Switching Power Supply
Brand: all-electronics-online.com
SKU: 832497635
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCN-1000-12
Output Current:	83A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	2.65kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Output Power:	1000W
Input Voltage:	110V/220V
Brand:	Weho

Product Description

1000W 12V in parallel switching power supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

Model	SCN-1000-12	SCN-1000-13.5	SCN-1000-15	SCN-1000-24	SCN-1000-27	SCN-1000-48
DC Output Volta	12V	13.5V	15V	24V	27V	48V
Output voltage tolerance(Note 2)	±1%	±1%	±1%	±1%	±1%	±1%
Output current range	0-83A	0-74A	0-67A	0-42A	0-37A	0-21A
Ripple and noise(Note 3)	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability(Note 4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note 5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	1000W	1000W	1000W	1000W	1000W	1000W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
DC voltage adjustable range	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
Input voltage range	88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC
Input current	7A/115V 3.5A/230V
Surge Current	0.95/100~240VAC
Leakage Current	18A/115V 36A/230V
Overload protection	<3.5mA/240VAC
over-voltage protection	105%~135% type:FOLDBACK cut off output reset:Automatic recovery
High temperature protection	13.8~16.2V	15.5~18.2V	18~21V	27.6~32.4V	31~36.5V		57.6~67.2V
temperature coefficient	RTH1 OR RTH2>=55°C FAN ON,<=45°C FAN OFF,>=70°C cut off output
Start-up,upper,rentention time	±0.03%°C(0~50°C)
shock resistance	1.5s,50ms,20ms
Withstand	10~500Hz,2G 10min./1circle,time:60min.,axes
Insulation Resistance	Input to Output Isolation:3KVAC,input&shell:1.5KVAC output &shell:0.5KVAC
work Temperature/ humidity	Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms
Storage Temperature,temperature	-10°C~+50°C,20%~90%RH
Outline dimension	-20°C~+85°C,10%~95%%RH
Weight	29113268mm shell:910
Safety standards	2.65Kgs
EMC Standard	UL1950,TUV EN60950
Model Performance	CISPR22(EN55022),IEC1000-42,3,4,5,6,8,11 IEC100-3-2

Our Workshop:

Packaging:

Exhibition:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
