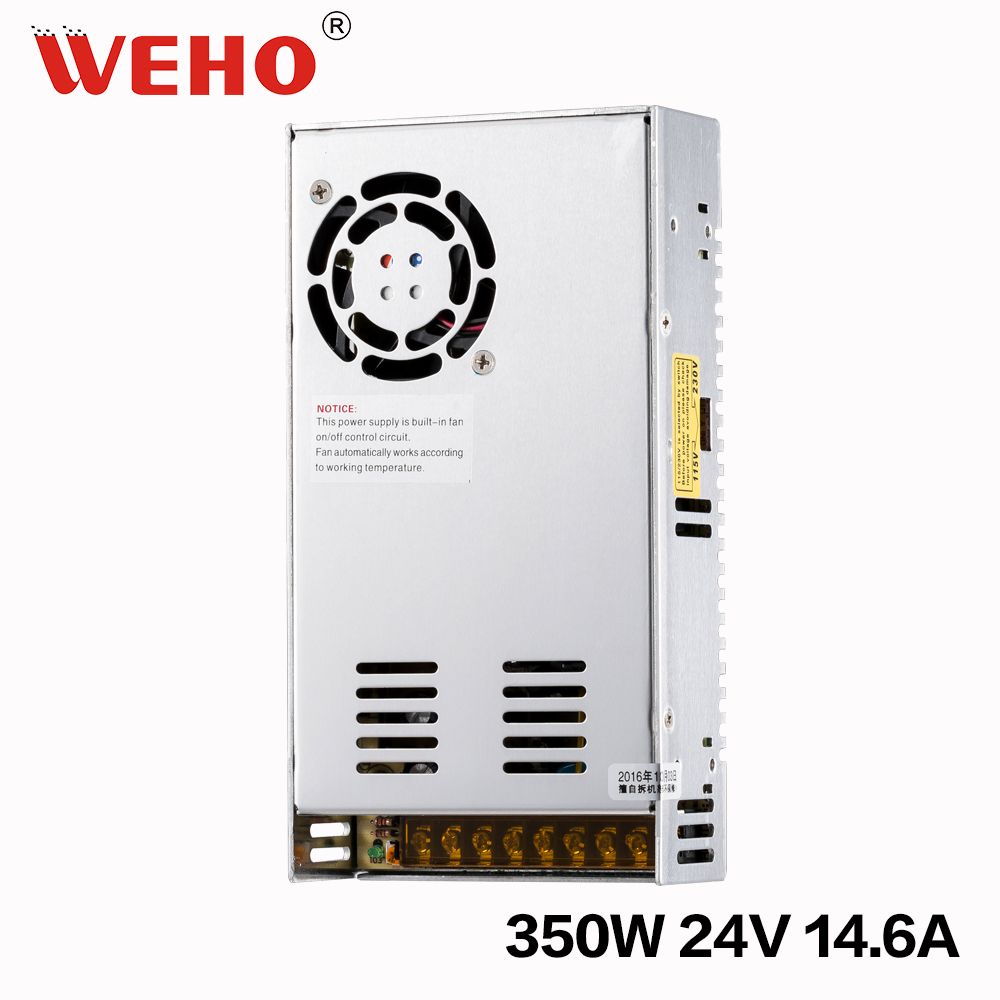

LED Driver S-350-24 AC/DC Switching Power Supply

Name: LED Driver S-350-24 AC/DC Switching Power Supply
Brand: all-electronics-online.com
SKU: 668170022
Availability: InStock
Rating: 4.6 (27 reviews)

Price:	US $ 14-18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

S-350 350W LED power supply

Feature:

1. High efficiency, high reliability, low cost
2. Universal AC input / full range
3. 100% full load burn-in test
4. Short circuit / overload / over-voltage protection
5. Cooling by free air convection
6. 2 year warranty
7. Dimension: 230*115*50mm

Specifications:

MODEL		S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
OUTPUT	DC VOLTAGE	5V	7.5V	12V	13.5V	15V	24V	27V	48V
	VOLTAGE TOLERANCE	± 2%	± 2%	± 1%	± 1%	± 1%	± 1%	± 1%	± 1%
	RATED CURRENT	50A	40A	29A	25.8A	23.3A	14.6A	13A	7.3A
	CURRENTRANGE	0-50A	0-40A	0-29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
	RATED POWER	250W	300W	348W	348.5W	348W	350.4W	351W	350.4W
	RIPPLE & NOISE(MAX)	120mVp-p	120mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	DC VOLTAGEFRE QUENCY RANGE	0.05
	SETUP, RISE, HOLD TIME	200ms, 50ms, 20ms
INPUT	VOLTAGERANGE	90132 VAC/180264VACselected by switch 4763 Hz254370VDC
	AC CURRENT	Cold start 6.5A/115 V 4A/ 230 V
	EFFICIENCY	74%	76%	76%	79%	78%	82%	82%	83%
	INRUSH CURRENT	25A/115V50A/230V
	LEAKAGE CURRENT	3.5 mA/240VAC
PROTECTION	OVERLOAD PROTECTION	105%135% Shut down O/P voltage, re-power on to recover
	OVER-VOLTAGE PROTECTION	5.75-6.7	9.4-10.9	13.8-16.2	15.5-18	18-21	27.6-32	33.7-39	56.7-67.2
	HIGH TEMPERATURE PROTECTON
ENVIRONMENT	WORKING TEMP. & HUMIDITY	-10+5020%90 %RH
	STORAGE TEMP. & HUMIDITY	-20+8510%95 %RH
	VIBRATION	10500Hz, 2G 10min. /1cycle, period for 60min, each along X. Y. Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P1.5KVACI/P-FG1.5KVACO/P-FG0.5KVAC
SAFETY	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG500VDC/100MΩ
STANDARDS	SAFETY STANDARDS	Design refer to UL1950
STANDARDS	EMC STANDARDS	Design refer to EN55022, EN55024, EN61000
OTHERS	WEIGHT	1.15Kg
OTHERS	PACKING	12pcs/ 13.8Kg / 0.98CUFT
NOTE
	1. Tolerance: Includes set up tolerance, line regulationand load regulation.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor.

Packaging:

Workshop:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Prod Model:	S-350-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Guarantee:	2 Years
Material:	Aluminnum Case
Type:	Constant Voltage
Weight:	1.15kg
Efficiency:	82%
Output Current:	14.6A
IP Code:	20
Test:	Full Lode 100% Bure-in Test
Output Type:	Single
Warranty:	2 Years
Output Power:	301 - 400W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
