Prod Model: |
LRS-200-12 |
IP Code: |
IP20 |
Test: |
100% Full Load Burn-in Test |
MOQ: |
1-5PCS Sample Order |
Payments: |
T/T/Western Union/Paypal |
Shipping: |
Sea Air DHL FedEx EMS UPS TNT |
Material: |
Aluminium |
Service: |
24hours on Line |
Item Name: |
12V Power Supply |
Dimension: |
215*115*30mm |
Weight: |
0.6kg |
Output Type: |
Single |
Warranty: |
2 Years |
Input Voltage: |
110-220V |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Voltage Regulating Mode: |
Frequency Modulation Type |
Power Supplying System: |
Terminal Power Distribution Equipment |
Certification: |
PSE |
Output Power: |
200W |
Brand: |
Weho |
Product Description
![](/proimages/44f3j00ZrhQgDoKsEqu/lrs-slim-200w-12v-ac-dc-led-switching-mode-power-supply.jpg)

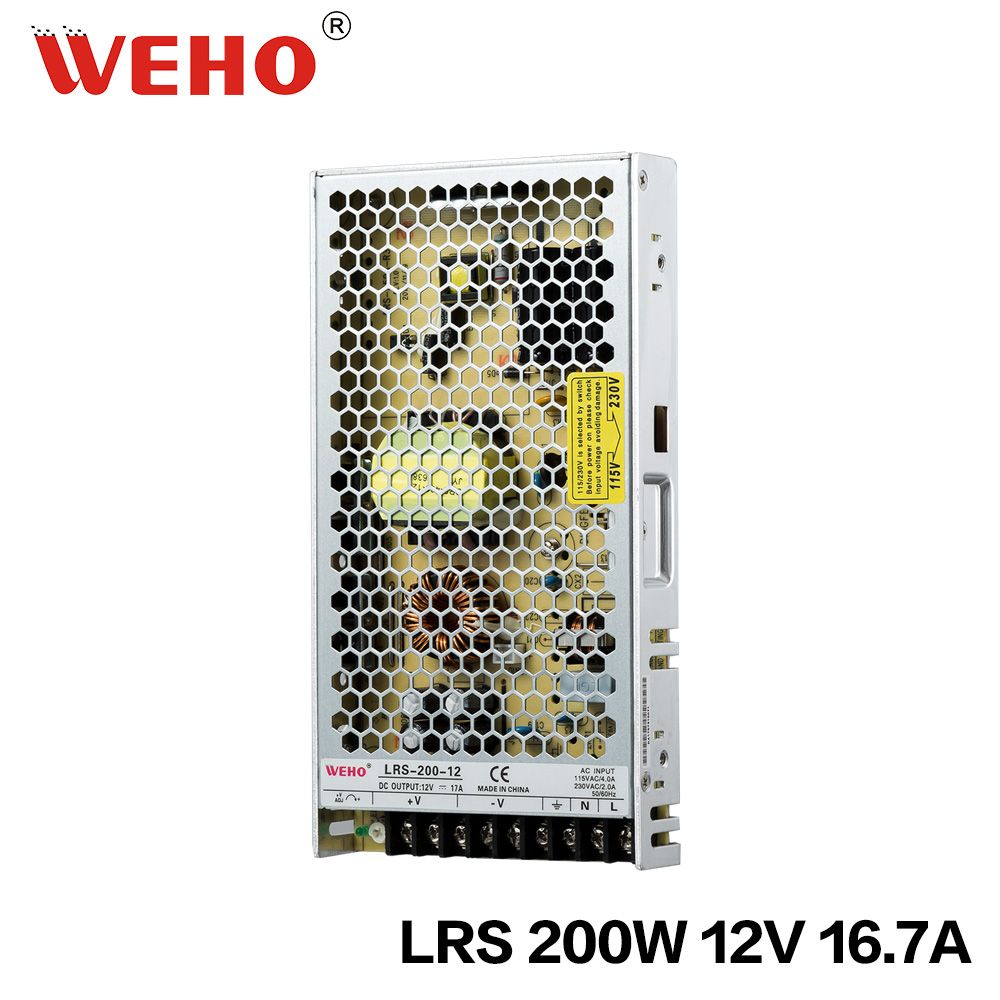

LRS 200W 12V AC/DC LED Switching mode Power Supply
MODEL | LRS-200-12 | LRS-200-24 |
OUTPUT | DC VOLTAGE | 12V | 24V |
RATED CURRENT | 17.0A | 8.8A |
CURRENT RAGE | 0~17.0A | 0~8.8A |
RATED POWER | 200W | 200W |
RIPPLE&NOISE(max.)(Note 2) | 150mVp-p | 150mVp-p |
VOLTAGE ADJ.RANGE | 10.2~13.8V | 21.6~28.8V |
VOLTAGE TOLERANCE(Note 3) | ±1.0% | ±1.0% |
LINE REGULATION(Note 4) | ±0.5% | ±0.5% |
LOAD REGULATION(Note 5) | ±0.5% | ±0.5% |
SETUP ,RISE TIME | 500ms,30ms/230VAC 500ms,30ms/115VAC at full load |
HOLD UP TIME (Typ.) | 16ms/230VAC 12ms/115VAC at full load |
INPUT | VOLTAGE RANGE | 85~132VAC /170~264VAC by switch 240~370VDC (switch on 230VAC) |
FREQUENCY RANGE | 47~63Hz |
EFFICIENCY | 87.50% | 89.00% |
AC CURRENT(Typ.) | 4.0A/115VAC 2.2A/230VAC |
INRUSH CURRENT (Typ.) | COLD STAR 60A/230VAC |
LEAKAGE CURRENT | <2.0mA/240VAC |
PROTECTION | OVER LOAD | 110~140% rated output power |
Protection type :Hiccup mode,recovers automatically after fault condition is removed |
OVER VOLTAGE | 13.8~16.2V | 28.8~33.6V |
Protection type :Shut down o/p voltage , re-power on to recover | |
OVER TEMPERATURE | Shut down o/p voltage , re-power on to recover |
ENVIROMENT | WORKING TEMP. | -30~+70ºC |
WORKING HUMIDITY | 20~90% RH non-condensing |
STORAGE TEM.,HUMIDITY | -40~+85ºC , 10~95% RH |
TEMP.COEFFICIENT | ±0.03%/ºC (0~50ºC) |
VIBRATION | 10~500Hz , 5G 10min./1cycle , 60min. each along X,Y,Z axes |
SAFETY & EMC (Note 7) | SAFETY STANDARDS | EN60950-1 |
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/ P-FG:1.5 KVAC O/P-FG:0.5 KVAC |
ISOLATION RESISTANCE | I/ P-O/P, I/ P-FG, O/P-FG:100M Ohms / 500VDC / 25 ºC/ 70% RH |
EMC EMISSION | Compliance to EN55022 (CISPR22) ,EN55024 |
EMC IMMUNITY | Compliance to EN61000-3-2,3 |
OTHERS | MTBF | 601K h r s min. MIL-HDBK-217F ( 25 ºC) |
DIMENSION | 215*115*30mm (L*W*H) |
PACKING | 0.6Kg ; 30pcs/18.5Kg/38*25*39CM |
![](/proimages/44f3j00SzWtphqKOEbr/lrs-slim-200w-12v-ac-dc-led-switching-mode-power-supply.jpg)
![](/proimages/44f3j00jzVQpckZJTbr/lrs-slim-200w-12v-ac-dc-led-switching-mode-power-supply.jpg)
![](/proimages/44f3j00sriEzBbIvTqg/lrs-slim-200w-12v-ac-dc-led-switching-mode-power-supply.jpg)
![](/proimages/44f3j00srlTzZkhOQop/lrs-slim-200w-12v-ac-dc-led-switching-mode-power-supply.jpg)
With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

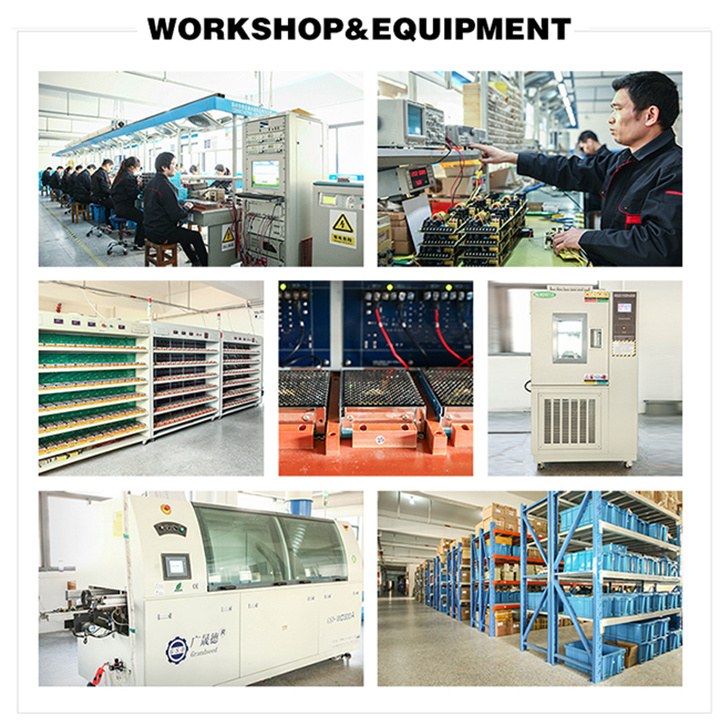

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.
