Factory Supply Reasonable Price Bare AAC Conductor Aluminum Cable
| Price: |
US $ 1200-2500/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
AAC conductor |
| Product Name: |
Factory Supply Reasonable Price Bare AAC Conductor |
| Standard: |
ASTM, CSA, BS, DIN, IEC, NFC |
| Advantages: |
High Quality, Competitive Price, Fast Delivery |
| AAC Code: |
Poppy, Aster, Oxlip, Syringa, Lilac |
| OEM: |
Yes |
| Related Voltage: |
0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv |
| Type Of Company: |
Professional Manufacturer |
| Sample: |
Free |
| Exoprt Experience: |
South America, Africa, Middle East Ect |
| Delivery Time: |
15-25days |
| Application: |
Power Station |
| Current: |
DC & AC |
| Insulation Material: |
Bare |
| Voltage: |
Low, Medium, High Voltage |
| Sheath Material: |
Bare |
| Wire Core Material: |
Aluminum |
| Certification: |
ISO9001, CCC, BV, SGS |
| Model: |
Stranded |
| Brand: |
Rmjt |
Product Description
Factory Supply Reasonable Price Bare AAC Conductor Aluminum cable
Application:All Aluminum Conductor is used in overhead electric power transmission and distribution lines with various grade voltage.
It can replace part of the aluminum conductors or ACSR for overhead distribution lines. Temperature for continuous use is up to 90.C, Temperature of heat-resistant aluminum alloy strands is up to 150.C and above. it has high current carrying capacity and good corrosion performance.
Refered Standards(1). IEC 61089: Round wire concentric lay overhead electrical stranded conductors
(2). DIN 48 201-5: All Aluminium Conductors
(3). BS 215-1: Aluminium strander conductors
(4). ASTM B231: Stranded Specification for Concentric-Lay-Stranded Aluminium 1350 Conductors
(5). AS 1531: Conductors-Bare overhead-Aluminium and aluminium alloyConstructionAluminum alloy 1350-H-19 wires. Additional corrosion protection is available through the application of grease to the corrosion or infusion of the complete cable with grease.SpecificationArea:from 10mm2 to 1500mm2 The detailed speicification is as follows.
All Aluminum stranded conductor according to ASTM B231| Code word | Size of Conductor | Stranding and Wire Diameter | Overall Diameter | Max.D.C. Resistance at 20°C | Code word | Size of Conductor | Stranding and Wire Diameter | Overall Diameter | Max.D.C. Resistance at 20°C |
| AWG or MCM | mm | mm | ohm/km | AWG or MCM | mm | mm | ohm/km |
| Peachbell | 6 | 7/1.554 | 4.67 | 2.1692 | Verbena | 700 | 37/3.493 | 24.45 | 0.0813 |
| Rose | 4 | 7/1.961 | 5.89 | 1.3624 | Nasturtium | 715.5 | 61/2.75 | 24.76 | 0.0795 |
| Lris | 2 | 7/2.474 | 7.42 | 0.8577 | Violet | 715.5 | 37/3.533 | 24.74 | 0.0795 |
| Pansey | 1 | 7/2.776 | 8.33 | 0.6801 | Cattail | 750 | 61/2.817 | 25.35 | 0.0759 |
| Poppy | 1/0 | 7/3.119 | 9.36 | 0.539 | Petunia | 750 | 37/3.617 | 25.32 | 0.0759 |
| Aster | 2/0 | 7/3.503 | 10.51 | 0.4276 | Lilac | 795 | 61/2.90 | 26.11 | 0.0715 |
| Phlox | 3/0 | 7/3.932 | 11.8 | 0.339 | Arbutus | 795 | 37/3.724 | 26.06 | 0.0715 |
| Oxlip | 4/0 | 7/4.417 | 13.26 | 0.2688 | Snapdragon | 900 | 61/3.086 | 27.78 | 0.0632 |
| Valerian | 250 | 19/2.913 | 14.57 | 0.2275 | Cockscomb | 900 | 37/3.962 | 27.73 | 0.0632 |
| Sneezewort | 250 | 7/4.80 | 14.4 | 0.2275 | Goldenrod | 954 | 61/3.177 | 28.6 | 0.0596 |
| Laurel | 266.8 | 19/3.01 | 15.05 | 0.2133 | Magnolia | 954 | 37/4.079 | 28.55 | 0.0596 |
| Daisy | 266.8 | 7/4.96 | 14.9 | 0.2133 | Camellia | 1000 | 61/3.251 | 29.36 | 0.0569 |
| Peony | 300 | 19/3.193 | 15.97 | 0.1896 | Hawkweed | 1000 | 37/4.176 | 29.23 | 0.0569 |
| Tulip | 336.4 | 19/3.381 | 16.91 | 0.1691 | Larkspur | 1033.5 | 61/3.307 | 29.76 | 0.055 |
| Daffodil | 350 | 19/3.447 | 17.24 | 0.1625 | Bluebell | 1033.5 | 37/4.244 | 29.72 | 0.055 |
| Canna | 397.5 | 19/3.673 | 18.36 | 0.1431 | Marigold | 1113 | 61/3.432 | 30.89 | 0.0511 |
| Goldentuft | 450 | 19/3.909 | 19.55 | 0.1264 | Hawthorn | 1192.5 | 61/3.551 | 31.05 | 0.0477 |
| Syringa | 477 | 37/2.882 | 20.19 | 0.1193 | Narcissus | 1272 | 61/3.668 | 33.02 | 0.0477 |
| Cosmos | 477 | 19/4.023 | 20.12 | 0.1193 | Columbine | 1351.5 | 61/3.78 | 34.01 | 0.0421 |
| Hyacinth | 500 | 37/2.951 | 20.65 | 0.1138 | Carnation | 1431 | 61/3.89 | 35.03 | 0.0398 |
| Zinnia | 500 | 19/4.12 | 20.6 | 0.1138 | Gladiolus | 1510.5 | 61/4.00 | 35.09 | 0.0376 |
| Dahlia | 556.5 | 19/4.346 | 21.73 | 0.1022 | Coreopsis | 1590 | 61/4.099 | 36.51 | 0.03568 |
| Mistletoe | 556.5 | 37/3.114 | 21.79 | 0.1022 | Jessamine | 1750 | 61/4.302 | 38.72 | 0.0325 |
| Meadowsweet | 600 | 37/3.233 | 22.63 | 0.0948 | Cowslip | 2000 | 91/3.76 | 41.4 | 0.02866 |
| Orchid | 636 | 37/3.33 | 23.31 | 0.0894 | Lupine | 2500 | 91/4.21 | 46.3 | 0.023 |
| Heuchera | 650 | 37/3.366 | 23.56 | 0.0875 | Trillium | 3000 | 127/3.90 | 50.75 | 0.0192 |
| Flag | 700 | 61/2.72 | 24.48 | 0.0813 | Bluebonnet | 3500 | 127/4.21 | 54.8 | 0.01653 |
All Aluminum stranded conductor according to IEC61089 Code Number
(No.) | Area
(mm²) | No. Of
Wires
(No.) | Diameter
(mm) | Linear Mass
(kg/km) | Rated Strength
(kN) | D.C.
Resistance
(Ω/km) |
| Wire | Conductor |
| 10 | 10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68.4 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109.4 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.2 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.9 | 274.8 | 17.00 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.5 | 343.6 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.4 | 439.8 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.3 | 549.7 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.5 | 687.1 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23.0 | 867.9 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26.0 | 1102.0 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.5 | 1239.8 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29.0 | 1377.6 | 80.00 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.7 | 1542.9 | 89.60 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.6 | 1738.3 | 100.80 | 0.0458 |
| 710 | 710 | 61 | 3.85 | 34.6 | 1959.1 | 113.60 | 0.0407 |
| 800 | 800 | 61 | 4.09 | 36.8 | 2207.4 | 128.00 | 0.0361 |
| 900 | 900 | 61 | 4.33 | 39.0 | 2483.3 | 144.00 | 0.0321 |
| 1000 | 1000 | 61 | 4.57 | 41.1 | 2759.2 | 160.00 | 0.0289 |
| 1120 | 1120 | 91 | 3.96 | 43.5 | 3093.5 | 179.20 | 0.0258 |
| 1250 | 1250 | 91 | 4.18 | 46.0 | 3452.6 | 200.00 | 0.0231 |
| 1400 | 1400 | 91 | 4.43 | 48.7 | 3866.9 | 224.00 | 0.0207 |
| 1500 | 1500 | 91 | 4.58 | 50.4 | 4143.1 | 240.00 | 0.0193 |
All Aluminum stranded conductor according to BS215 Part1| Code name | Nominal aluminum area | Stranding and wire diameter | Sectional area | Overall diameter | Linear mass | Max. DC resistance at 20ºC | Rated strength | Final modulus of elasticity | Coefficient of linear expansion |
| | mm2 | mm | mm2 | mm | kg/km | Ω/km | daN | hbar | /ºC |
| Midge | 22 | 7/2.06 | 23.33 | 6.18 | 63.8 | 1.227 | 399 | 5900 | 23.0x10-6 |
| Aphis | 25 | 3/3.35 | 26.40 | 7.2 | 73 | 1.081 | 411 | 5900 | 23.0x10-6 |
| Gnat | 25 | 7/2.21 | 26.8 | 6.6 | 73 | 1.066 | 459 | 5900 | 23.0x10-6 |
| Weevil | 30 | 3/3.66 | 31.6 | 7.9 | 86 | 0.9082 | 486 | 5900 | 23.0x10-6 |
| Mosquito | 35 | 7/2.59 | 37.0 | 7.8 | 101 | 0.7762 | 603 | 5900 | 23.0x10-6 |
| Ladybird | 40 | 7/2.79 | 42.8 | 8.4 | 117 | 0.6689 | 687 | 5900 | 23.0x10-6 |
| Ant | 50 | 7/3.10 | 52.83 | 9.30 | 145 | 0.5419 | 828 | 5900 | 23.0x10-6 |
| Fly | 60 | 7/3.40 | 63.55 | 10.20 | 174 | 0.4505 | 990 | 5900 | 23.0x10-6 |
| Bluebottle | 70 | 7/3.66 | 73.7 | 11.0 | 202 | 0.3881 | 1134 | 5900 | 23.0x10-6 |
| Earwig | 75 | 7/3.78 | 78.5 | 11.4 | 215 | 0.3644 | 1194 | 5900 | 23.0x10-6 |
| Grasshopper | 80 | 7/3.91 | 84.1 | 11.7 | 230 | 0.3406 | 1278 | 5900 | 23.0x10-6 |
| Clegg | 90 | 7/4.17 | 95.6 | 12.5 | 262 | 0.2994 | 1453 | 5900 | 23.0x10-6 |
| Wasp | 100 | 7/4.39 | 106.0 | 13.17 | 290 | 0.2702 | 1600 | 5900 | 23.0x10-6 |
| Beetle | 100 | 19/2.67 | 106.0 | 13.4 | 293 | 0.2704 | 1742 | 5600 | 23.0x10-6 |
| Bee | 125 | 7/4.90 | 132.0 | 14.7 | 361 | 0.2169 | 1944 | 5600 | 23.0x10-6 |
| Cricket | 150 | 7/5.36 | 157.9 | 16.1 | 432 | 0.1818 | 2385 | 5600 | 23.0x10-6 |
| Hornet | 150 | 19/3.25 | 157.6 | 16.25 | 434 | 0.1825 | 2570 | 5600 | 23.0x10-6 |
| Caterpillar | 175 | 19/3.53 | 186 | 17.7 | 512 | 0.1547 | 2863 | 5600 | 23.0x10-6 |
| Chafer | 200 | 19/3.78 | 213.2 | 18.9 | 587 | 0.1349 | 3240 | 5600 | 23.0x10-6 |
| Spider | 225 | 19/3.99 | 236.9 | 20.0 | 652 | 0.1211 | 3601 | 5600 | 23.0x10-6 |
| Cockroach | 250 | 19/4.22 | 265.7 | 21.10 | 731 | 0.1083 | 4040 | 5600 | 23.0x10-6 |
| Butterfly | 300 | 19/4.65 | 322.7 | 23.25 | 888 | 0.08916 | 4875 | 5600 | 23.0x10-6 |
| Moth | 350 | 19/5.00 | 373.2 | 25.0 | 1027 | 0.07711 | 5637 | 5600 | 23.0x10-6 |
| Drone | 350 | 37/3.58 | 373.3 | 25.1 | 1029 | 0.07741 | 5745 | 5600 | 23.0x10-6 |
| Locust | 400 | 19/5.36 | 428.5 | 26.8 | 1179 | 0.06710 | 6473 | 5600 | 23.0x10-6 |
| Centipede | 400 | 37/3.78 | 415.2 | 26.46 | 1145 | 0.06944 | 6310 | 5600 | 23.0x10-6 |
| Maybug | 450 | 37/4.09 | 486.9 | 28.6 | 1342 | 0.05931 | 7401 | 5600 | 23.0x10-6 |
| Scorpion | 500 | 37/4.27 | 529.5 | 29.9 | 1460 | 0.05441 | 7998 | 5600 | 23.0x10-6 |
| Cicada | 600 | 37/4.65 | 628.6 | 32.6 | 1733 | 0.04588 | 9495 | 5600 | 23.0x10-6 |
| Tarantula | 750 | 37/5.23 | 794.6 | 36.6 | 2191 | 0.03627 | 12010 | 5600 | 23.0x10-6 |
About UsPeople's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
Packing & DeliveryPacking Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
Customers VisitWe have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
CertificationAs top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
FAQQ:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.

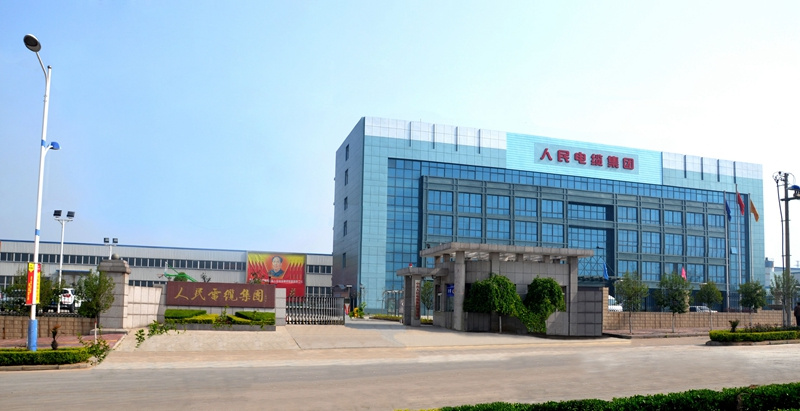

People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
