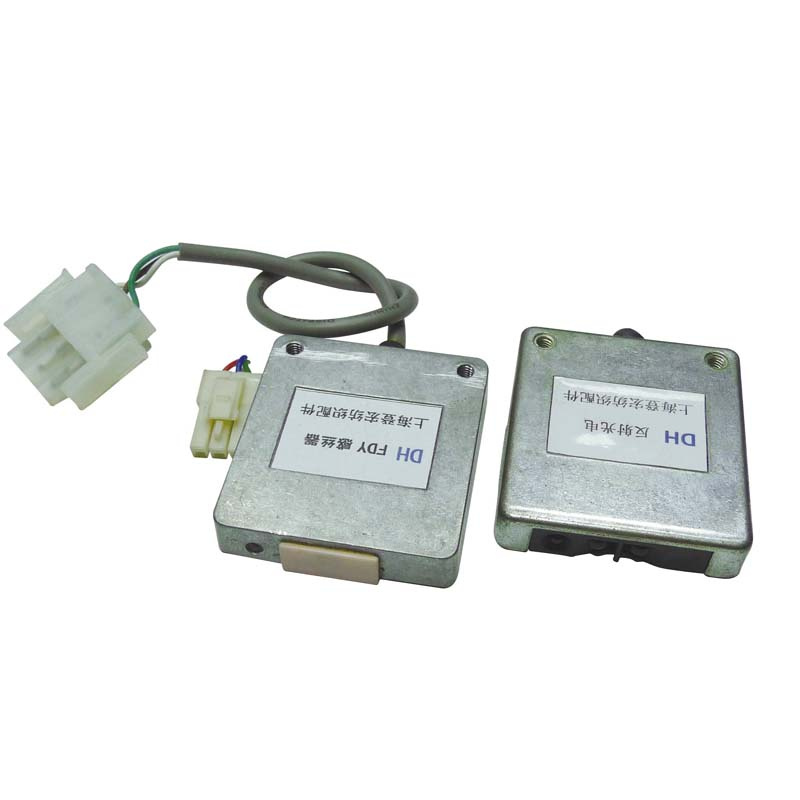

FDY Machinery Yarn Break Sensor
Price: |
Negotiable/Piece |
Min Order: |
5/Piece |
Pay Type: |
T/T,Western Union |
Product description: ITEM | Spinning Machine FDY Optical Yarn Sensor | Material | Aluminmun housing | Current ouput | PNP output | Working Voltage | 18~30 VDC | Working current | MAX 1.2 A | Static current | < 20 mA | Response time | < 0.1 second | Guarantee | One year without operation mistake | Origin | Shanghai, China | Application | Murata texile machines |
| |
| |

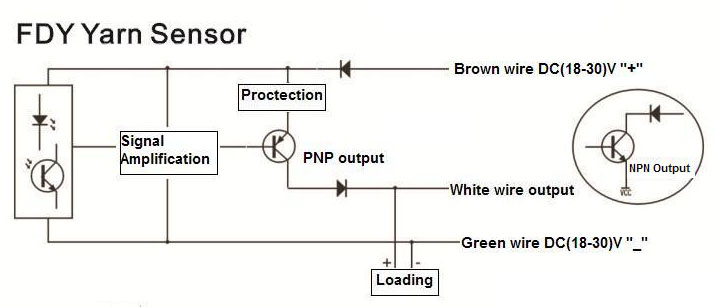

Circuit connection:Company Information:Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities.
Function and Application:In Chemical Fiber machine, fore-spinning machines, when the breakage of stoppage of one or more yarns are detected by the sensor, the sensor will give the operate on duty an alarm with a visible LED flaring signal. It will simultaneously send out an electrical signal to the yarn cutter in order to cut off the broken yarn and grip the cut end by the device attached to the yarn cutter itself.
In winding, spinning, twisting machines, the yarn should be cut off when the bobbin is full.
Samples are free. You only pay shipping fee.
Samples: 1-3 working days
Order: 3-7 working daysOur srtongest point is that we consult. So anything you want to know about our products, please ask us!
Prod Model: |
DHYS005 |
Voltage: |
24VDC |
Output: |
NPN Output |
Response Time: |
<0.1 Second |
Cable Length: |
as Per Required |
Plug Wire: |
3 Wires |
Price Terms: |
Fob, CIF, CNF, Ex Works |
Application: |
Textile Machinery Spare Parts |
Guarantee: |
One Year Without Operation Mistake |
Production Process: |
Electrical Board |
Material: |
Aluminum |

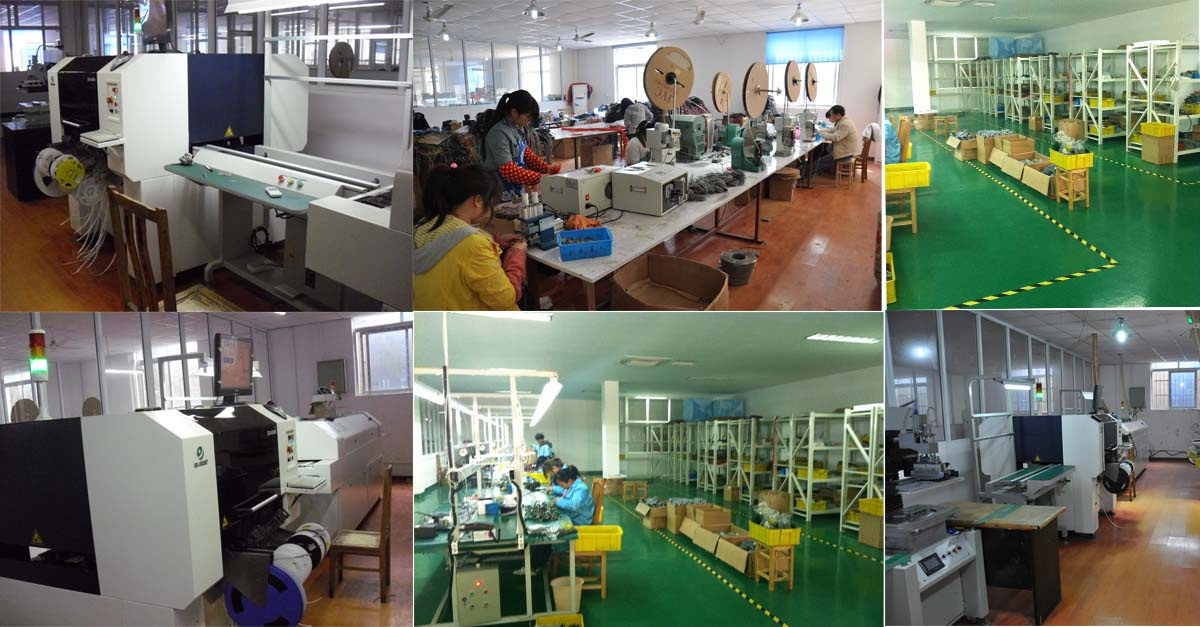

Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Old name: Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.
The main products of our company:
I. Yarn cutter: Suitable for various textile machines
II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor
III. Meter counter: Multi-Function and easy operation
Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.
With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers.
