| Prod Model: |
TF-0024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Urn Loss: |
PC >45db APC>60db |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Attenuation Value: |
-41 3 5 10 15 20 25db |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Lead Time: |
5 Days |
| Color: |
Red, Green... |
| Warranty: |
3 Years |
| Delivery Time: |
Within 3 Days |
| Transmission Medium: |
Single-Mode |
| Structure: |
MU |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Connector Type: |
All Kinds |
| Brand: |
Takfly |
Product Description

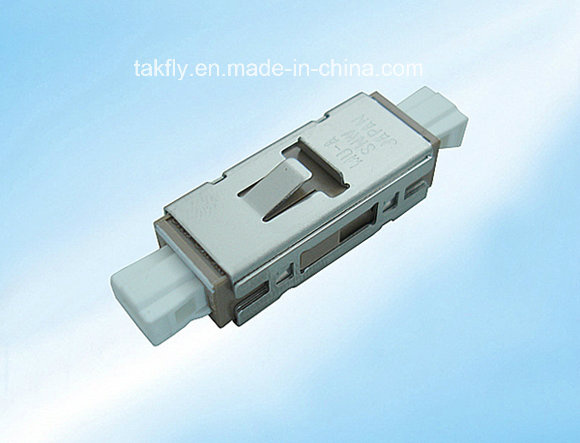

MU Fiber Optical Adapter Manufacturer with High Quality and Low Price
1. Details:
MU fiber adapter
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
MU adapters are approximately half the size of an SC coupler and utilize zirconia sleeves for precision alignment.
2. Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex
3. Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
4. Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry, our commissioners will promptly get in touch with the customers.
5. After Sale Service:
Takfly Communications Co., Ltd. Is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you. We are equipped with the good after service department and never escape our responsibility.
6. Why contact Takfly Communications Co., Ltd?
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry.
1. Fast delivery
2. Competitive price
3. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Longtime warranty
7. Value-added service: Except good products, we can provide good services on logistic and other help you may need.
7. FAQ
Q1. The MOQ Order?
A1: Fiber optical adaptor MOQ is 50pcs.
Q2. What about the packing?
A2: The package will be packed according to standard export requirements.
Label printing: Customer logo are available
Inner packing: 25pcs or 50pcs in a plastic box
Outer packing: The carton will be packed with sack.
Q3. Payment term?
A3: T/T 30% deposit, 70% against the copy of BL. For our familiar customer, we can support good credit payments date.
Q4. Is there cheap shipping cost to import to our country?
A4: For small order, express will be best. And for bulk order, sea ship way is best but take much time.
For urgent orders, We suggest via air or airport plus our ship partner send to your door.
8. How to contact us?
Send your Inquiry Details in the Below, Click "Send" Now! Free samples are waiting for you.
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 |
| SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Durability | Time | >1000 | >1000 | >1000 |
| Operating Temperature | degree | -40~75 | -40~75 | -40~75 |
| Storage Temperature | degree | -45~85 | -45~85 | -45~85 |
