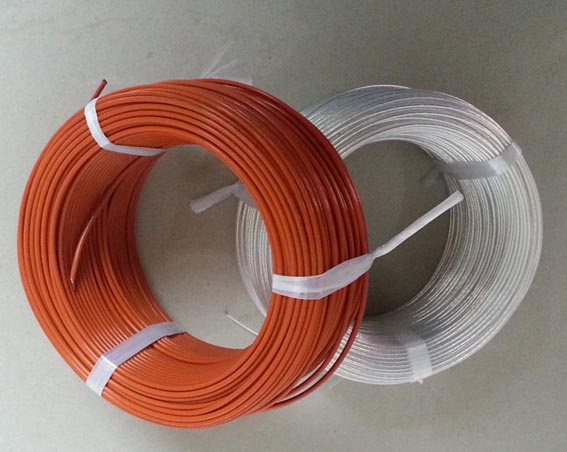

Flexible Single Core Teflon Insulated Cable

Name: Flexible Single Core Teflon Insulated Cable
Brand: all-electronics-online.com
SKU: 761935595
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	US $ 0.02/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1.Conductor:bare, tinned copper
2. Inner Insulator: Fluoroplastic of FEP
3. Outer Insulator Layer: FEP

Rated Volt.: 300/500V
Test Voltage: 2000V. 1Min
Rated Temp.:-100ºC~+180ºC

Mechanical properties
Un-aged condition:

Tensile strength: ≥17.2N/mm²

Elongation at break of insulation: ≥200%

Min.Bending radius: 4×OD

Standards: Standard: DIN VDE 0250, IEC60245
Meet with RoHS, REACH rules.
Characteristics:
Teflon Wire has very good flexibility and good performance of resistance to high and low temperature, range from -60ºC up to 180ºC.

The use of fluoroplastic, also called Teflon, abbreviated as FEP, PFA, and ETFE is a transparent material. It can be added other agents like color powder, it has high grade corona resistant, be good at impact resistant, distortion resistance, flexibility under low temperature are excellent.Non-toxic, non-viscous. Additional, it has stable performance of resistant to chemical,solvent,oil etc.

Application:
Teflon wire & cable are used where high flexibility is required and high temperature conditions. It is therefore a suitable connection cable for home electric appliance, instrument control,auto wire harness.

Size MM²	Conductor Construction	Insulation Thickness(mm)	Outer Dia.(MM)	Max. Resist. (Ω/KM)	Ref.Cable Weight(KG/KM)
22AWG	19/0.16	0.30/0.30	1.97	59.4	10
20AWG	19/0.20	0.30/0.30	2.12	36.7	12
18AWG	19/0.25	0.30/0.30	2.39	23.2	17
16AWG	19/0.30	0.30/0.30	2.74	14.6	24
0.50	19/0.18	0.30/0.30	2.07	40.1	11
0.75	19/0.23	0.30/0.30	2.31	26.7	15
1.0	19/0.26	0.30/0.30	2.45	20.0	18
1.5	19/0.32	0.30/0.30	2.74	13.7	24

Prod Model:	F6Y6Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Teflon
Certification:	VDE
Sheath Material:	Teflon
Brand:	Hoochan

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
