Flush Mounted Magnetic Contact Switches

Name: Flush Mounted Magnetic Contact Switches
Brand: all-electronics-online.com
SKU: 698106922
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

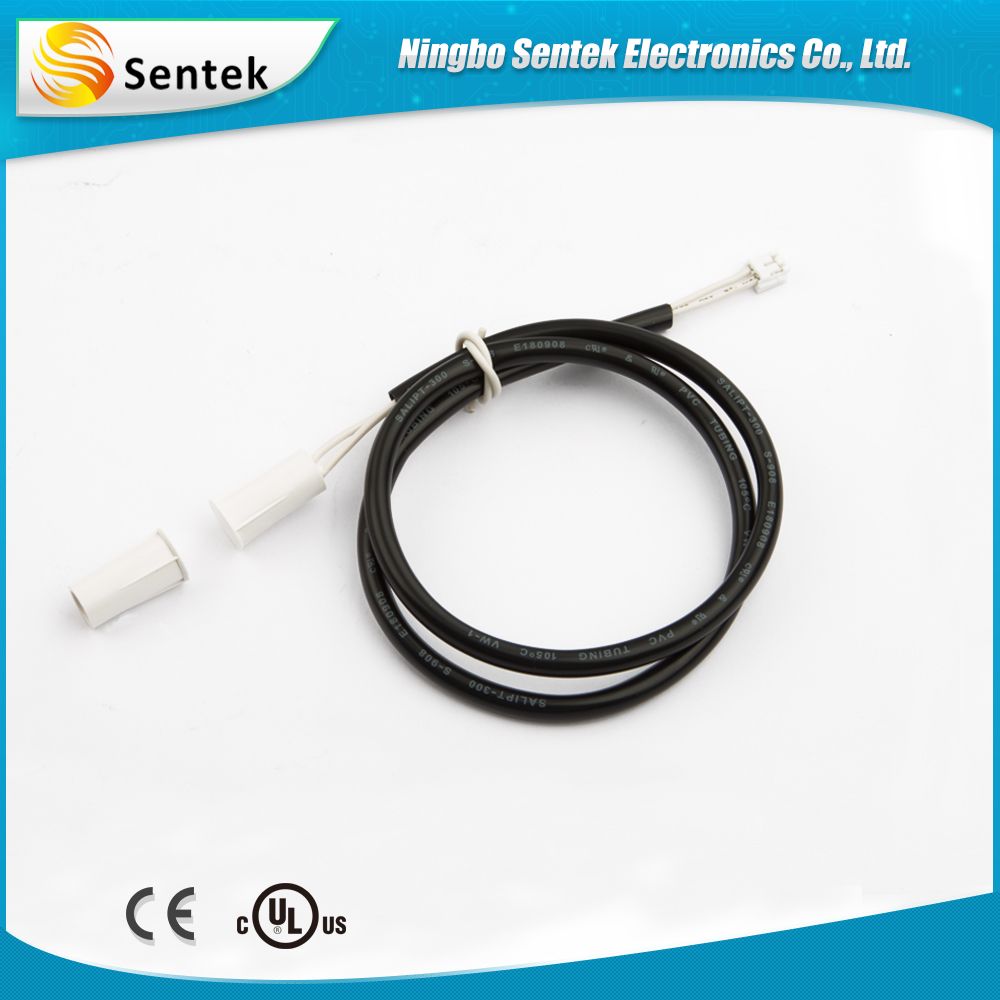

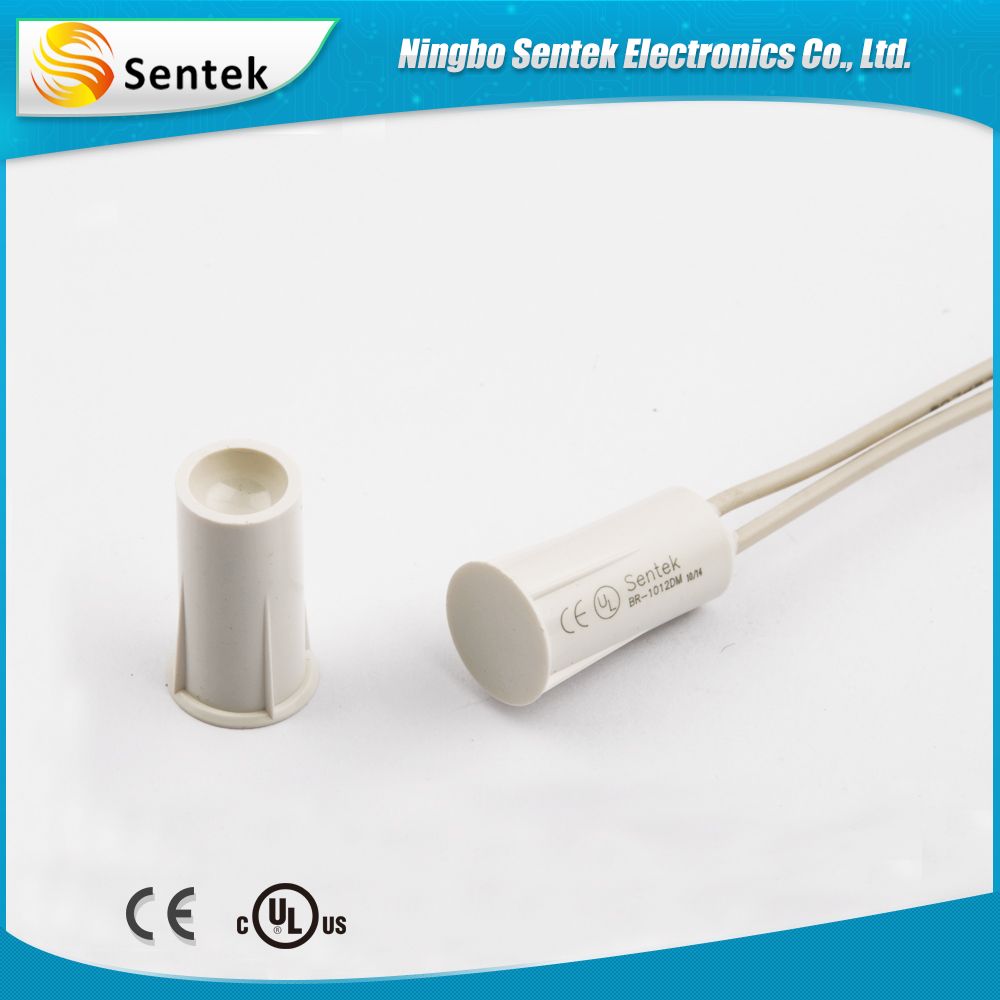

flush mounted magnetic contact switch

.3/8"diameteser miniature flush mounted
.Press to fit
.Standard 18"#22AWG Leads
.Special leads upon request

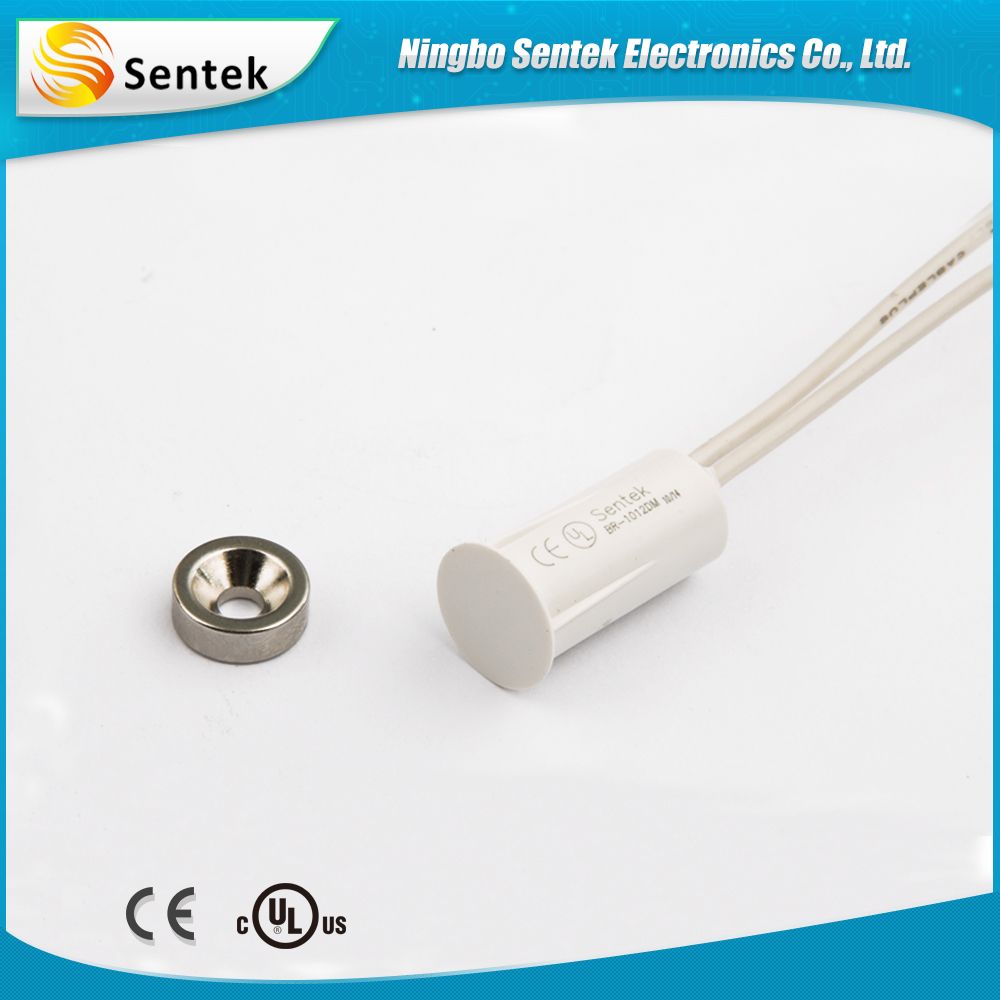

.Switch or magnet are available separately
.Resistor,Diode and Supervisory Loop available on request
.Colors:White,Brown,Grey

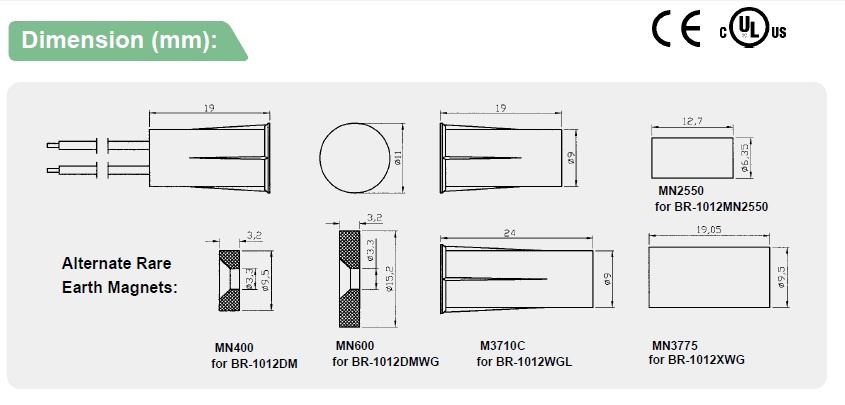

Order Information:

Part Number	Loop Type	Reed Form	Closed Gap [Inch (mm) ]	Depature Gap [Inch (mm) ]	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
BR-1012	Closed	N/O	3/4(19)	0.8(20)	0.150	10	100	0.5
BR-1012WG	Closed	N/O	1^1/4(32)	1.45(37)	0.150	10	100	0.5
BR-1012WGL	Closed	N/O	1^1/8(28)	1.1(28)	0.150	10	100	0.5
BR-1012MN2550	Closed	N/O	3/4(20)	0.9(23)	0.150	10	100	0.5
BR-1012DM	Closed	N/O	5/8(16)	0.75(19)	0.150	10	100	0.5
BR-1012DMWG	Closed	N/O	1(25)	1.05(27)	0.150	10	100	0.5

Sentek is a company specializing in designing, developing and manufacturing fire & security detection products, such as smoke detectors, heat detectors, flame detectors, combustible and toxic gas detectors, magnetic door contact switches, PIR mostion sensors and so on.
We are growing day by day by improving quality, introducing new technology, developing new products since establishment in 2001. Adhering to the principal of "Technology Innovation, Precision Manufacturing", all our products are designed and manufactured strictly in accordance with the standards of EN, UL, KFI, VDS, FCC,etc. Meanwhile, with implementation of ISO9001 and PDM & ERP system, we Sentek are in the position to provide much better service to our clients.
Warmly welcome customers from all over the world to visit our factory, Sentek wish to build a safe and harmonious society together with you.
Fire & Security Detection:
- Smoke Detector/Alarm
- Heat Detector
- Gas Alarm
- CO Alarm
- Reed Sensor
- Door window Sensor
- PIR Motion Sensor
- Fire Alarm Control Panel
- Smart Home GatewayWarmly

Prod Model:	BR-1012
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White/Brown/Grey
Approved:	CE/UL

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
