Surface Mount UL Approve Magnetic Contact

Name: Surface Mount UL Approve Magnetic Contact
Brand: all-electronics-online.com
SKU: 702761602
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	US $ 0.72-0.90/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

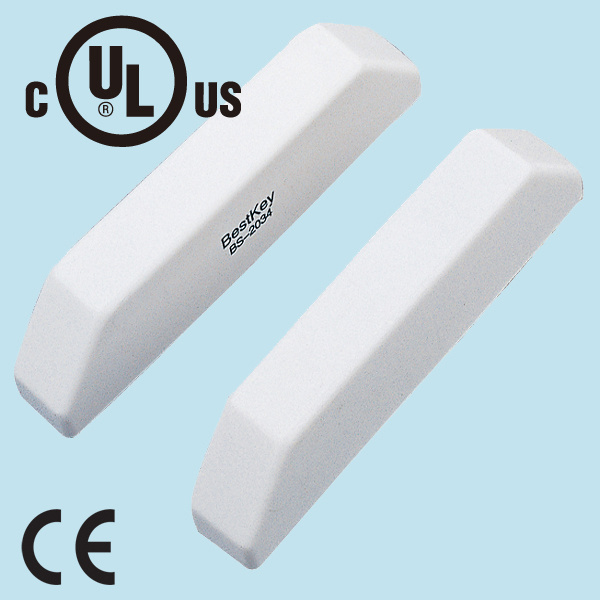

BS-2034 surface mount UL approve magnetic contact

* Screw mount

* Attractive cover keeps mounting screws

and terminal screws hidden

* Concealed or surface wiring

* Switches or magnets available seperately

* Colors: White, Brown, Grey

For more information ,pls feel free to contact us!

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BS-2034	Closed	N/O	1(25)	1.2(30)	0.150	10	100	0.5
BS-2034	Closed	N/O	1 1/4(31)		0.15	10	100	0.5
BS-2034A	Open	N/C	3/4(19)		0.150	3	30	0.2

Prod Model:	BS-2034
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Sentek (Bestkey)
Standard:	Standard
Certification:	UL
Wires:	2 or 3 Wires
Application:	Door Window

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
