Plunger Switch Magnetic Contact Sensor

Name: Plunger Switch Magnetic Contact Sensor
Brand: all-electronics-online.com
SKU: 703250712
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 0.70-0.90/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

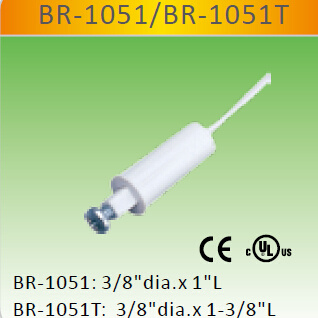

BR-1051 series

* Adjustable screw plunger

* 3/8" diameter press to fit

* Single drink hole

* 18" #22AWG leads or screw terminal

* Special leads available

* Flange style available

* Colors: White, Brown, Grey

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BR-1051	Closed	N/O	1/4(6.2)	0.8(21)	0.150	10	100	0.5
BR-1051T	Closed	N/O	1/4(6.2)	1.47(37)	0.150	10	100	0.5

Prod Model:	BR-1051
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
