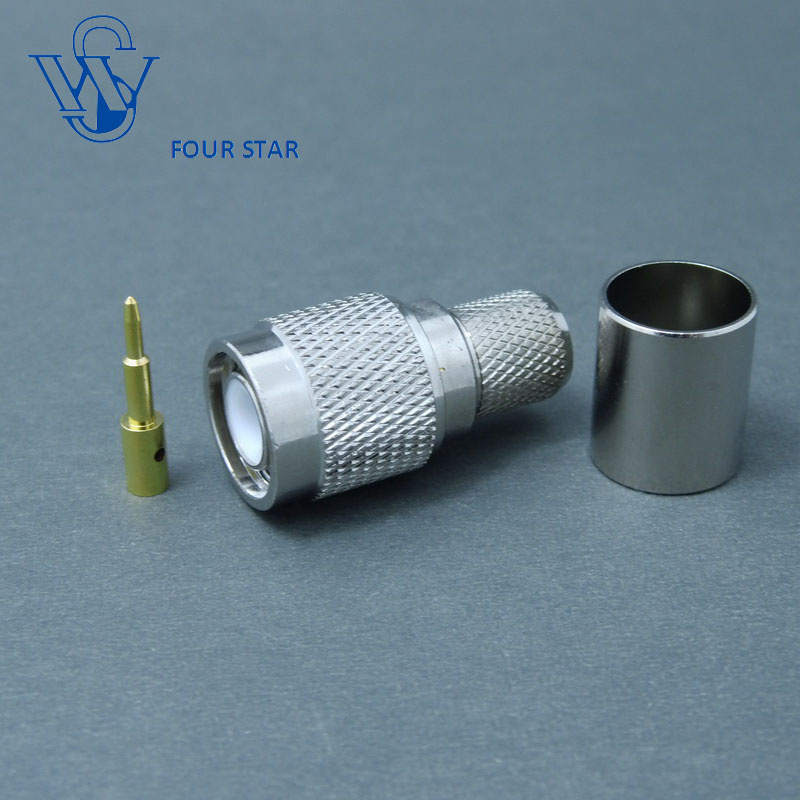

TYPE TNC is a kind of RF Coaxial Connector with screw coupling mechanism, characteristic impedance is 50ohm. The characteristic of connector is in wide working frequency, reliable connection,great vibration performance etc. They are used in connection with RF coaxial cable in the computer network, radio station, the mini-car telephone, navigation of spaceflight, microwave monitor system using radar and all kinds of radio equipmen free samples male plug crimp tnc connector for RG214 cable |
Model No. | TNC-C-J214B |
Interface | IEC 60169-17;CECC 22200 |
Electrical | |
Characteristic Impedance | 50ohm |
Frequency Range | DC-11GHz |
VSWR | ≤1.15@DC-3000MHz |
Insertion Losss | ≤0.2dB |
3rd Order IM (PIM3) | - |
Working Vlotage | 500V RMS,50Hz,at sea level |
Dielectric Withstanding Voltage | ≥1500V RMS,50Hz,at sea level |
Dielectric Resistance | ≥5000MΩ |
Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
Mating | - |
Mechanical | |
Durability | Mating cycles ≥500 |
Material and Plating | | |
Parts Name | Material | Plating |
Body | Brass | Ni |
Insulator | PTFE | - |
Inner Conductor | Phosphor Bronze | Au |
Coupling Nut | Brass | Ni |
Gasket | Silicone Rubber | - |
Ferrule | Annealed Copper | Ni |
Environmental | | |
Operating Temperature | -45 ºC~-85 ºC |
Weatherproof Rate | IP67 |
RoHs (2002/95/EC) | Compliant by exemption |
Suitable Cable Family | RG214 Cable |

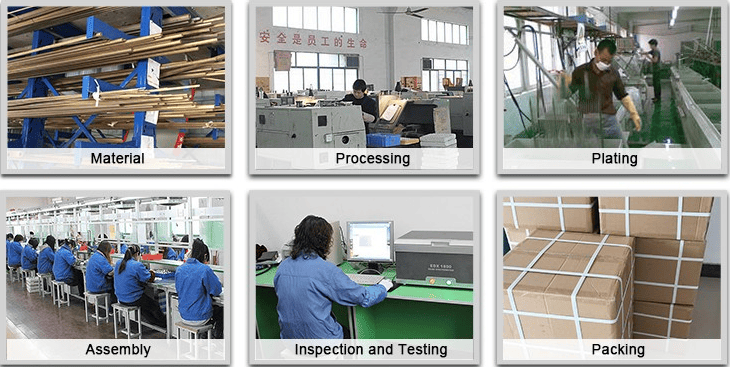

Famliy ModelProducetion Process
Our Service |
1.Reply your enquiry within 24 hours. |
2.Payment model: T/T, L/C,Paypal and Western Union |

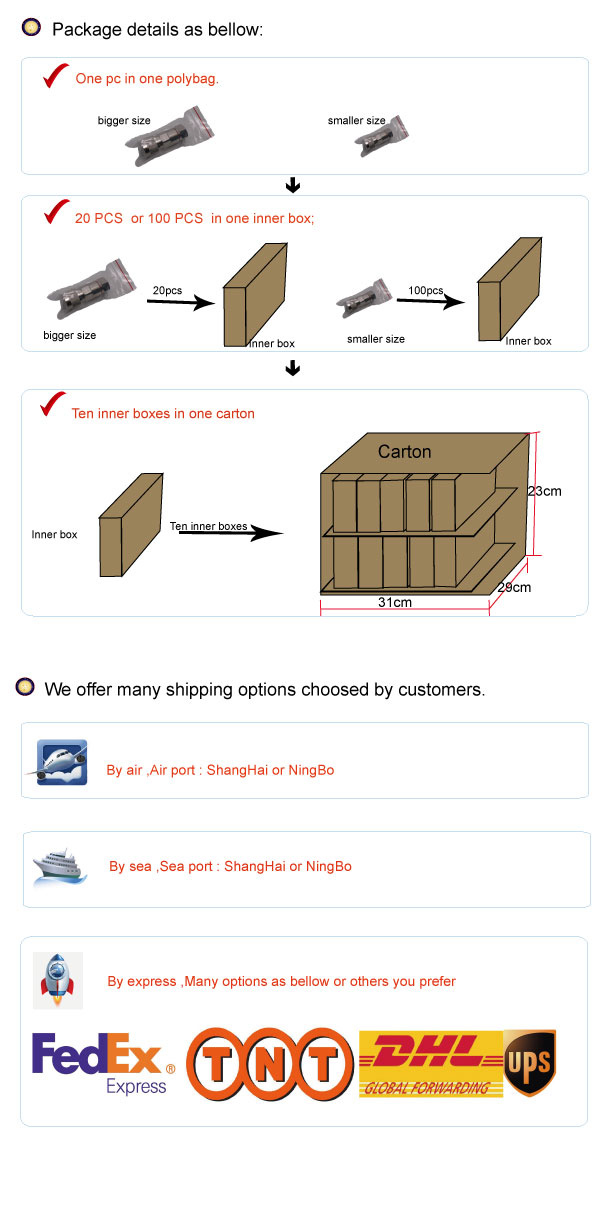

3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...) |
4.Lead(Delivery) time: Normally 14 days after getting order |
5.Port of loading: Shanghai, Ningbo and Shenzhen. |
6.Guarantee Period : Within 12 months after shipment. |
7.Operating guide(Instruction)upon request. |
8.Customized drawing ,sample and package can be done. |
|
FAQ |
Q:What about the quality of your products? |
A: Our production process is in conformity with ISO 9001:2008. All products we supplied are strictly tested by our QC department before shipment. |
Q:Can you offer samples to test before placing one formal order? |
A:Samples for test purpose can be presented free provided that you bear the shipping cost. |
Q:How long is usually your delivery time? |
A: Our delivery time is usually within 14 days after we receive your order . |
Q:What's your Shipping Methods? |
A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc. |
Q: Can you send a sample for us to develop? |
A: Yes, we can. The samples can be delivered within 7 business days. |
Q: Can we have our logo or company name to be printed on your products or the package? |
A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format. |
Q: Is the MOQ fixed? |
A: The MOQ is flexible and we accept small order in the first time as trial order. |
Company Information
Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components. Our products range:RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.RF coaxial Cable assembly(Jumper Cable)Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
Prod Model: |
TNC-C-J214B |
Impedance: |
50ohm |
Material: |
Brass and Teflon |
Plating: |
Gold and Nickel |
Frequency Range: |
DC-11GHz |
HS Code: |
85369090 |
Waterproof Rate: |
IP67 |
Certificate: |
Ce/ISO9001/RoHS |
Type: |
Generally Coaxial Connector |
Coupling Mechanism: |
Threaded Connection |
Application: |
RF |
Interface Type: |
TNC Connector |
VSWR: |
1.15:1 |
Brand: |
Four Star |

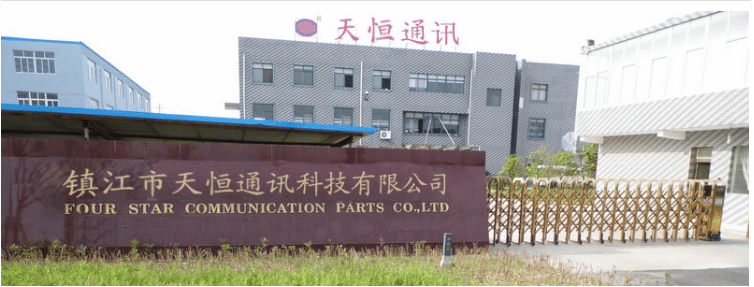

Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.
