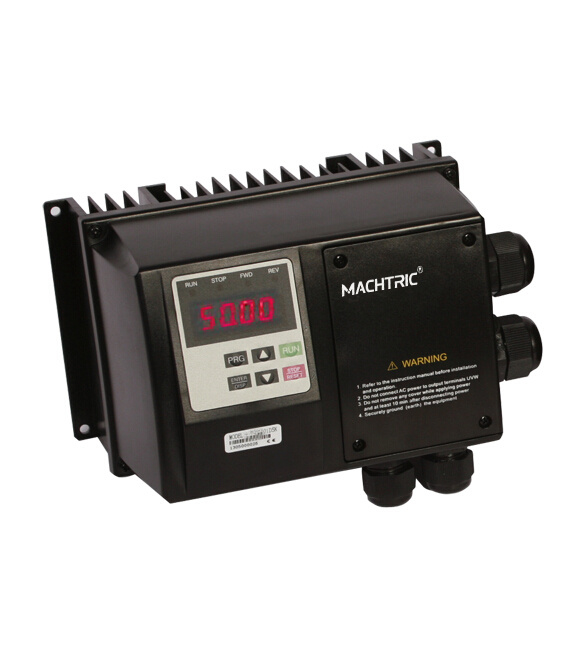

S2100S Series frequency Inverter
The S2100S series IP65 frequency inverters are sensorless vector variable
speed drives in a power range 0.4 to 11kW suitable for mounting in wet of dirty areas without a panel.
S2100S IP65 can be wall mounted in dusty, dirty and damp environments, even with low pressure jets, saving panel space and cost. Decentralised inverters: mounted directly on the motor or to the wall.
Big savings on installation:
With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated isolator to simplify your external connections.
Big performance:
The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.
Big advantages of easy handling:
The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.
Model |
S2100S |
Input |
Rated voltage,Frequency |
3 AC 380V / 220V; 50-60 Hz |
Voltage Range |
380V: 330V~440V;220V: 170-240V |
Output |
Voltage Range |
380 V: 0~380 V; 220V: 0-220V |
Frequency Range |
0.10~400.0 Hz |
Control method |
V/F control,Space verctor control |
Indication |
Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
Control Specification |
Output Frequency Range |
0.10~400.00 Hz. |
Frequency Setting Resolution |
Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
Output Frequency Accuracy |
0.01 Hz. |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
Multifuncional Input Terminal |
8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
Multifuntional Output Terminal |
3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
8 multifunitinal output terminals, 1 inverter can control 4 ciircular variable frequency pumps |
Acceleration/deceleration Time Setting |
0~6000 s acceleration/deceleration time can be set individually |
Other functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function (MODBUS) |
Frequency Setting |
Analog input 0~10V, 0~20, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
Multi-speed |
Eight multifunction input terminals,15 section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built-in 2 group of counters |
Overload |
120%,60second (variable torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat,output shortcircuit,over current,and parameter lock and so on. |
Environment |
Ambient Temperature |
-10~40(non-freezing) |
Ambient Humidity |
Max. 95% (non-condensing) |
Altitude |
Lower than 1000 |
Vibration |
Max. 0.5 g |
Structure |
Cooling Mode |
Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
Protective Structure |
IP 65 |
