Products Description ZC-EC3002 EOC Master Introduction
ZC-EC3002 are EOC Masters (Ethernet over Coax) with the access function of CATV(cable television) and internet broadband data. They can implement hybrid output of internet data signal and CATV signal through cable television distribution network to realize co-cable transmission of television programs, voice signal and internet content.
ZC-EC3002 EOC master adopt the latest Qualcomm Atheros 7410 solution, providing PHY rates of 700Mbps and up to 350Mbps of throughput over Coax in coaxial network.
ZC-EC3002 EOC master have built in PON ONU module, which can support seamless linkage with OLT and transform the passive optical signal output by OLT into standard Ethernet signal and then module it from Ethernet signal to RF signal that can be transmitted in coaxial cable. ZC-EC3002 adopt OFDM technology to ensure the reliable data transmission in a complex network environment.
ZC-EC3002 EOC master have a optical interface for 1310/1490/1550nm optical fibers(or two optical interfaces, video and data are separated) carrying CATV ,data and voice signal and ZC-EC3002 can modulate these optical signals to RF signals which can be transmitted by a coaxial cable.
ZC-EC3002 Eoc master have built in 1 EoC modules. And every EoC module can connect up to 64 EoC terminals according to bandwith demand.
ZC-EC3002 EOC Master have built in network management module(s), which support remote network management can enable you to log in ZC-EC3002 with WEB/SNMP/TELENT. And you can use it for centralized management on the connected EoC terminals such as QoS setting, encryption setting, statistical and status information inquiry and software upgrade.
ZC-EC3002 EOC Master occupies low frequency band under 65Mhz and has no collision with the current CATV system frequency, which can decrease mutual interference. Besides, it supports the current CATV network of tree and chain architecture, enable long distance transmission and enjoys high bandwith and good network adaptability. It completely meets the requirement of Triple-Play of broadcasting and television system.

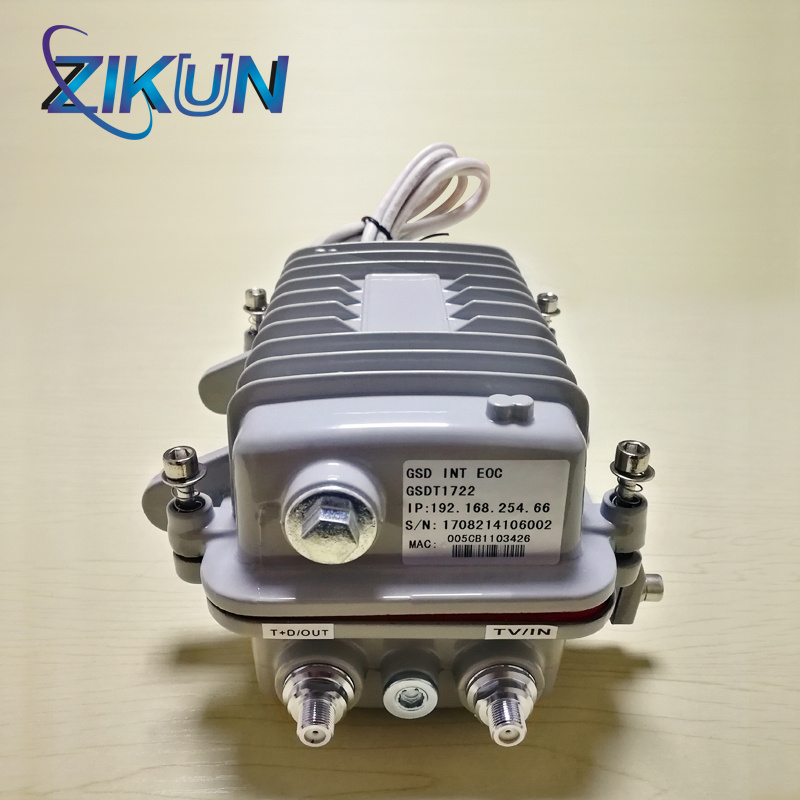

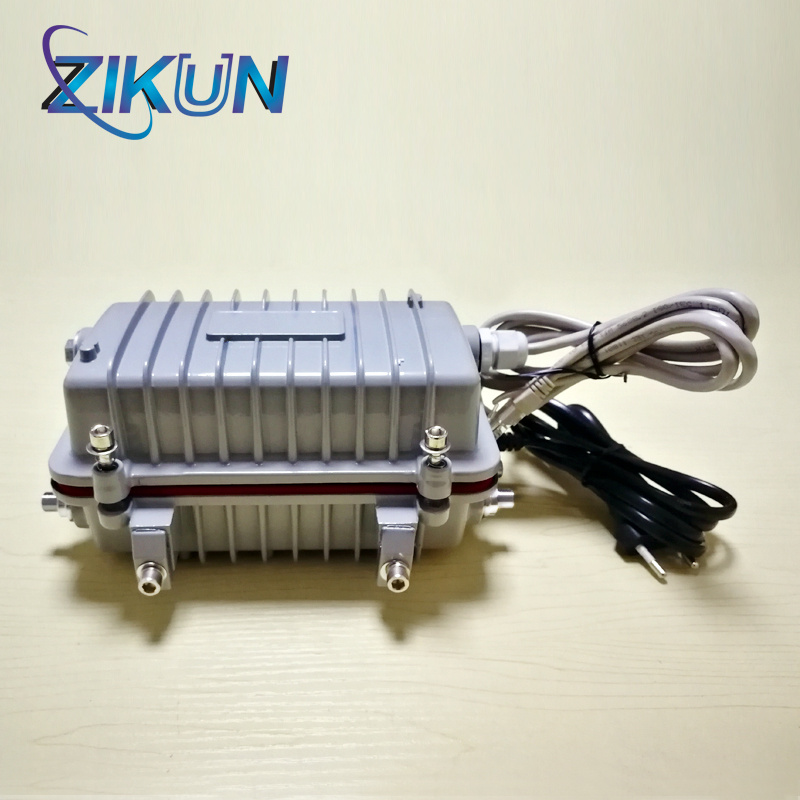

ZC-EC3002 EOC master are coated with Aluminum and have the broadcasting and television conventional waterproof shell for outdoor installation which makes it suitable for outdoor wire-lashing installation convenient for operatio
Specification & Function
Features:ITEM | ZC-EC3002 |
EoC Module | One Qualcomm 7410 EoC mater modules |
Power | 30W |
Transmission Speed | 350Mbps |
Homeplug RF | Occupied Bandwith:7.5~67.5MHz;Output Power:≥110dBuV |
CATV RF | Occupied Bandwith:87-1000MHz;Input Return Loss:>16dB; Insert Loss:≤1dB Flatness:±0.75dB C/N:≥51dB(-1dBmN); C/CTB: ≥65dB;C/CSO: ≥60dB RF Output Signal Level: ≥110dBuv |
Optertical Character | Data Optical Interface:1 PON interface, single mode, FC/PC Data Optical transmission Wavelength: 1310nm Data Optical Receiving Wavelength:1490nm TV Optical Receiving Wavelength:1100 to 1600nm, typical 1550nm TV Receiving Optical Power:-7dBm to +2dBm TV Receiving Optical recommended Power: -3dBm to +1dBm TV Optical Interface: Single, FC/APC |
Connection Type | F breakthrough Connector(inch/metric optional) |
RF Impedance | 75Ω |
Standards Compliance | IEEE HomePlug AV,IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI(X) |
Remote Management | Support remote WER management, TELENT, SNMP; Support centralized management on all connected EoC terminals |
Protocol | TDMA/CSMA |
Coding Mode | Asynchronous |
Modulation Mode | OFDM |
Transmission Distance | 500m-1000m |
Encryption Mode | 128-bit AES |
Power | 110-264VAC/40-95VAC |
Size(LxWxH) | 340×235×140mm |
Weight | 3.9kg |
Operation Temperature | -25~65 ºC |
Storage Temperature | -40~70 ºC |
Operation Humidity | 10%~90% non-condensing |
Storage Humidity | 10%~95% non-condensing |
Applications: for triple play network Our company
