Fuel Tank I2C Pressure Transducer (MPM3808)

Name: Fuel Tank I2C Pressure Transducer (MPM3808)
Brand: all-electronics-online.com
SKU: 830765025
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM3808
Thread Type:	as you require

Product Description

Water I2C Pressure Transducer (MPM3808)

Features
•Gauge, absolute, sealed gauge
•Standard male thread for option
•Isolated construction, enable to measure various liquid
•I2C digital Output Signal

Specifications

Range: -0.1MPa…0kPa~10kPa…3.5MPa
Pressure Type: Gauge, Absolute, Sealed Gauge
Overpressure: 1.5FS
Accuracy: ±0.5%FS (pressure) ±1.5ºC (Temperature)
Power Supply: (5±0.1)V DC; (3.3±0.1)V DC
Long Term Stability: ±0.3%FS/year Working Temperature: -10ºC~80ºC
Storage Temperature: -40ºC~125ºC
Shock: 10g,20Hz~2000Hz
Impact:100g,11ms

Introduction

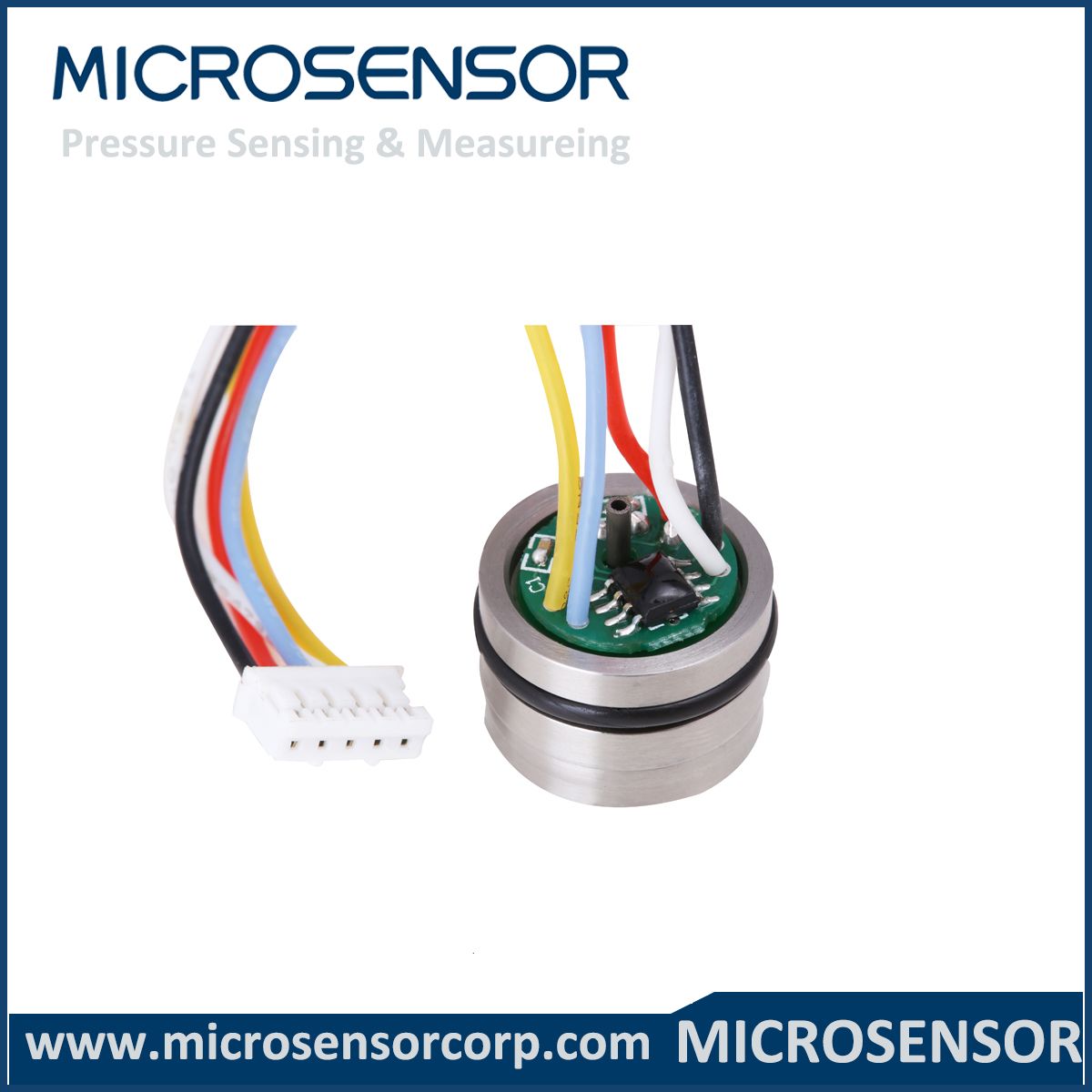

MPM3808 I2C Digital Output Pressure Transducer is the OEM piezoresistive pressure sensor with 316L stainless steel corrugated diaphragm and isolated oil-filling construction. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing die. The pressure is transformed to analog electric signal. By customized integrated circuit for temperature compensation and non-linearity correction, it outputs pressure data and temperature data conforming to I2C interface protocol. It is widely used for various liquid pressure measurement which is compatible with stainless steel and Viton.

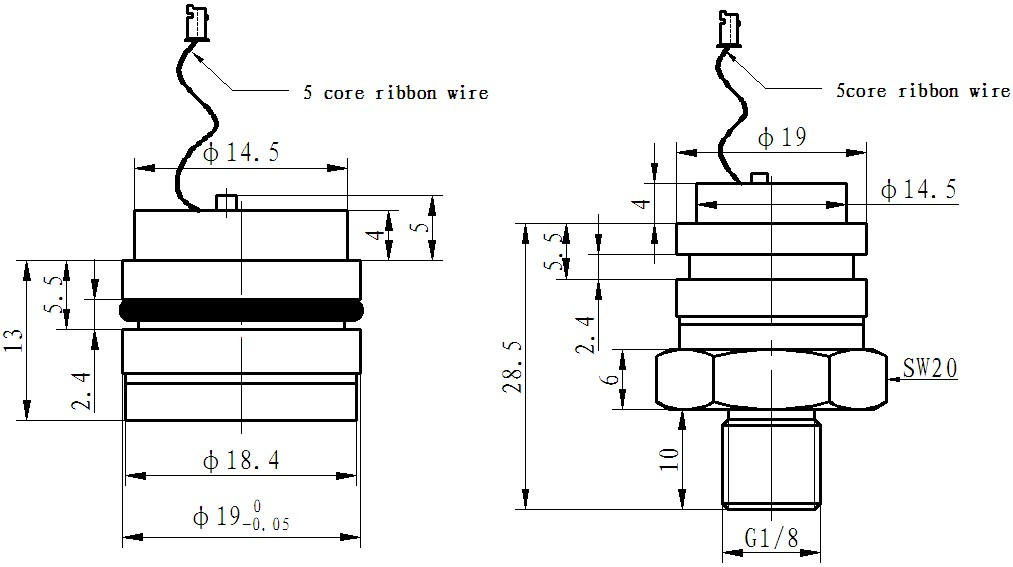

Outline Construction:

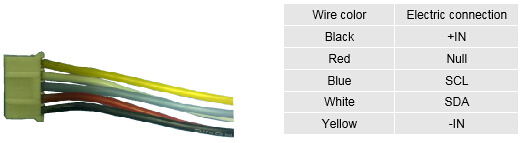

Electric Connection:

Order Guide:

MPM3808

I²C Digital Output Pressure Transducer

Range

Range: -0.1MPa...0kPa~10kPa...3.5MPa

[0~X]kPa or MPa

X: actual measured range

Code

Power Supply

(3.3+0.1)VDC

(5+0.1)VDC

Code

Output Signal

10%~90% (1638~14746)

5%~95% (819-15563)

Code

Pressure Type

Gauge

Absolute

Sealed Gauge

MPM3808 [0~200] kPa 5 A G the whole spec

Order Note:

1. Please pay attention that the measured media shall be compatible with contacted parts.
2. If Zero pressure is negative, please make special note of exact pressure range in purchase order.
3. For special requirements, please contact us and make note in purchase order.
