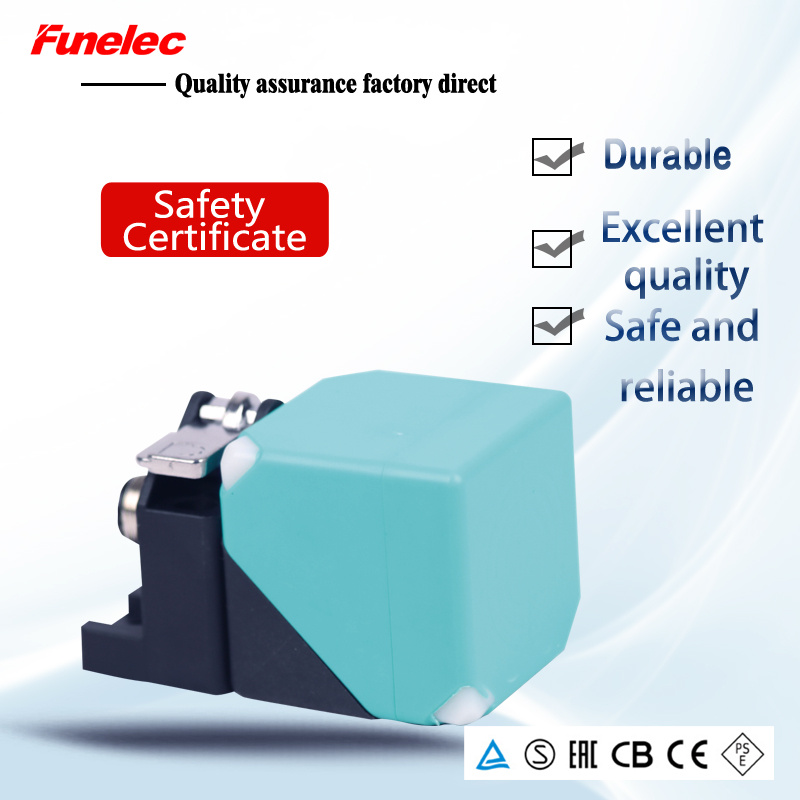

Funelec 0-10V Analog Output Proximity Sensor Switch Le40szsn15lum-E2 M12 Plug
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LE40SZSN15LUM-E2 |
| Material: |
Plastic |
| Rotection Degree: |
IP 67 |
| Mounting: |
Flushed/ Non-Flushed |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN/PNP |
| Application: |
Position Sensor, Speed Sensor |
Product Description
| Analog output type inductive sensors LR12X series |
Features
Providing equivalent signal output along with target position;
0-10V, 0-20mA, 4-20mA analog output;
Perfect choice for displacement and thickness measurement; |
|
|
|
|
|
| Part number |
| 0-10V LE40SZSF10LUM-E2 LE40SZSN15LUM-E2 | 4-20mA LE40SZSF10LI4M-E2 LE40SZSN15LI4M-E2 |
| 0-20mA LE40SZSF10LIM-E2 LE40SZSN15LIM-E2 | 0-10V + 0-20mA LE40SZSF10LIUM-E2 LE40SZSN15LIUM-E2 |
| Technical specifications |
| Mounting Flush Non-flush | Leakage current [lr] ≤20mA |
| Rated distance [Sn] 10mm 15mm | Circuit protection Reverse polarity protection |
| Sensing distance 2…10mm 3…15mm | Output indicator Yellow LED |
| Dimensions 40 mm *40 mm *66 mm | Ambient temperature -25ºC…70ºC |
| Output Current, voltage or current+voltage | Ambient humidity 35-85%RH |
| Supply voltage 15…30 VDC | Switching frequency [F] 100 Hz 50 Hz |
| Standard target Fe 40*40*1t Fe 45*45*1t | Voltage withstand 1000V/AC 50/60Hz 60s |
| Switch-point drifts [%/Sr] ≤±10% | Insulation resistance ≥50MΩ(500VDC) |
| Linearity ≤±5% | Vibration resistance 10…50Hz (1.5mm) |
| Repeat accuracy [R] ≤±3% | Degree of protection IP67 |
| Load current Voltage output: ≥4.7KΩ | Housing material PBT |
| Current output: ≤470Ω | Connection type 2m PVC cable |
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
FAQ
Q: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your product seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our product are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
