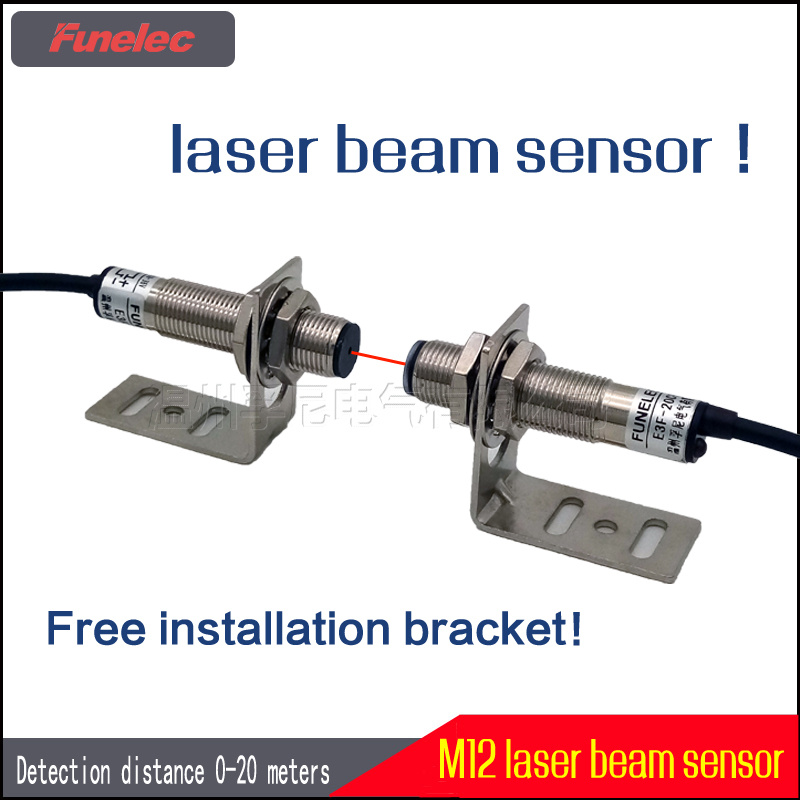

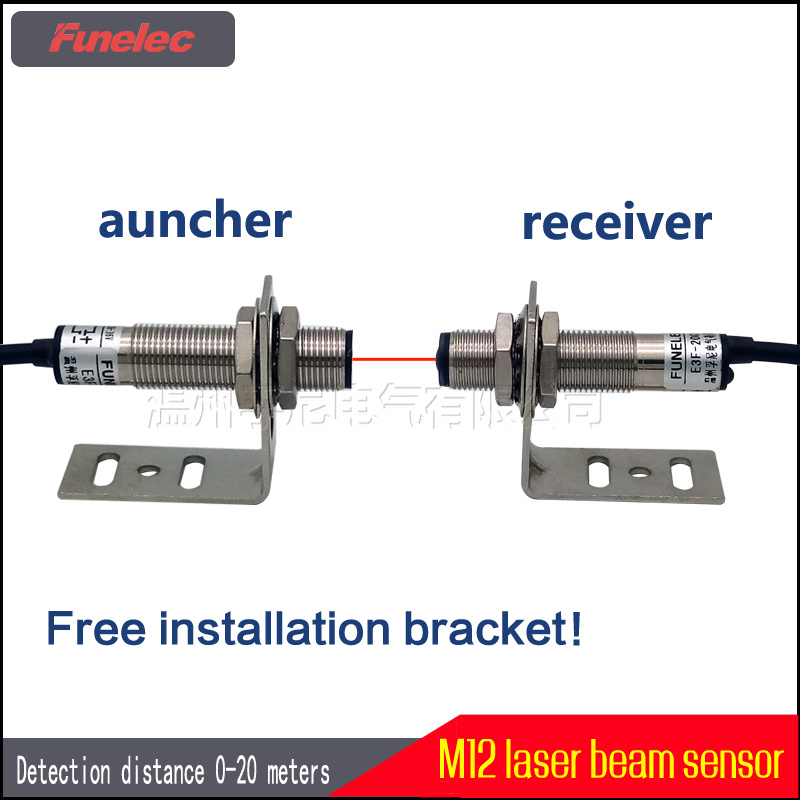

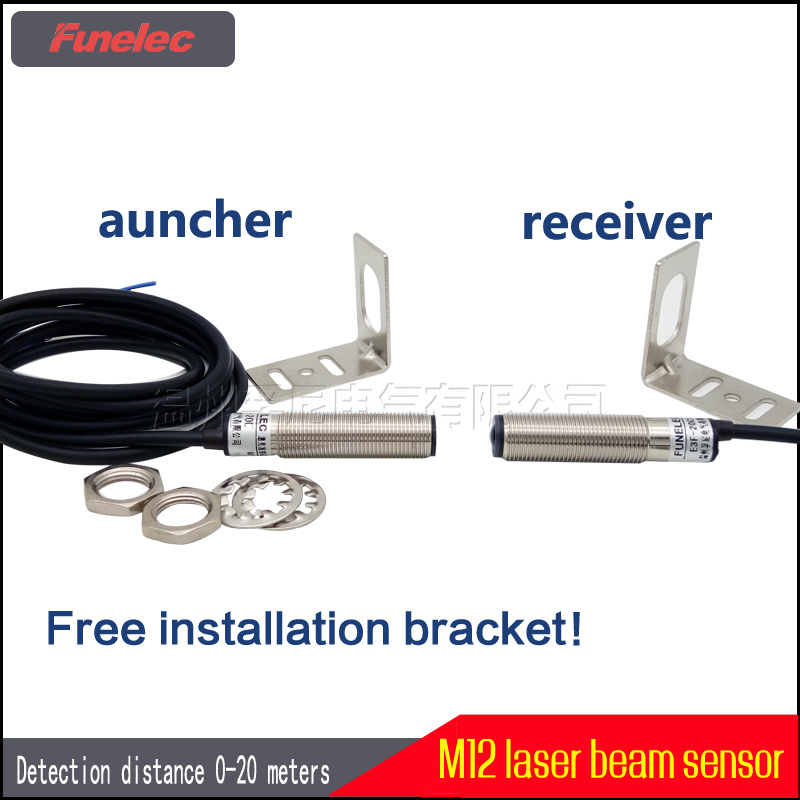

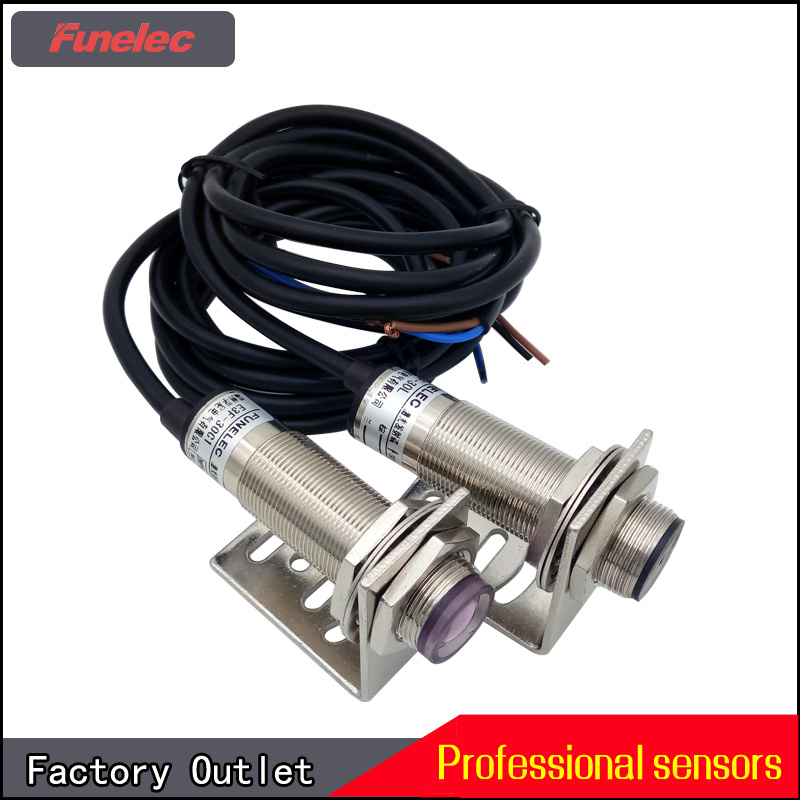

Through Beam Laser Distance Sensor Switch

Name: Through Beam Laser Distance Sensor Switch
Brand: all-electronics-online.com
SKU: 733755042
Availability: InStock
Rating: 5 (68 reviews)

Price:	US $ 7.11-7.74/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

For output type:
NPN, PNP, Normally Open, Normally Closed Selection, Select the option according to the need to use, and explain the output type as follows:

Normally open and normally closed, the main difference is based on the status of the contacts in the sensor when there is no induction.

Normally open type: The contact is open when the proximity switch sensor is not activated (when no object is sensed) and closed when the proximity switch sensor senses the object. Normally open is the signal output is in the open state in the normal state. When the object is sensed, the contact is closed and the signal is output.

Normally closed: The contact is closed when the proximity switch sensor is not active and is open when the proximity switch sensor senses an object. Normally closed is the signal output in the normal state is closed, the signal continues to output, when the object is touched when the contact is open, the output closes the signal.

NPN: After the installation, when there is no induction, the output is high (for example, input 24V, output 24V or so). When there is an object sensing, the output is low and the output signal is triggered to achieve the detection purpose.

PNP: After installation, when there is no induction, the output is low (for example, input 24V, output 0V or so). When there is an object sensing, it outputs a high potential and triggers the output signal to achieve the detection purpose.

Size(mm)	M8 x 50mm	M12 x 58mm
Sn(M)	through beam 100M	through beam 100M
Housing material	brass nickel plated	brass nickel plated
Operating voltage	10-30VDC
Output	NPN - PNP - NO - NC
No load current	Emitter 9mA Receiver 11mA
Output current	150mA
Max. load current	200mA
Leakage current	<0.01mA
Drop voltage	1.0V
Frequency	120Hz/s
hysteresis	10-15%
Short circuit protection	YES
Operating temperature	-5 ºC to 50ºC
Cable length	2M

Prod Model:	FNJG-M12-NO20L
Type:	Laser Illuminate Each Other's Laser Sensor
Feature:	IP 67

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
