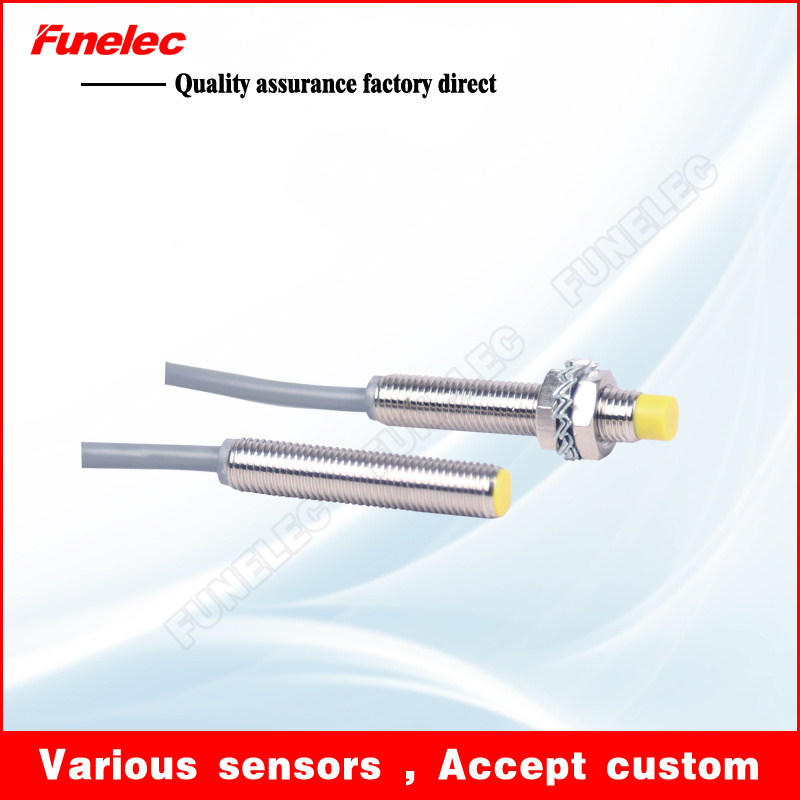

Lja18 Embedded Series of Cylindrical Inductive Proximity Sensor

Name: Lja18 Embedded Series of Cylindrical Inductive Proximity Sensor
Brand: all-electronics-online.com
SKU: 731283352
Availability: InStock
Rating: 4.4 (35 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Description

wellcome to FUNI electrical ,Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

LJA18 Long Cylinder Type
Operating State of Output			Flush	Non-flush
3-wire DC6-36V	NPN	NO	LJA18-5N1	LJA18M-10N1
		NC	LJA18-5N2	LJA18M-10N2
		NO+NC	LJA18-5N4	LJA18M-10N4
	PNP	NO	LJA18-5P1	LJA18M-10P1
		NC	LJA18-5P2	LJA18M-10P2
		NO+NC	LJA18-5P4	LJA18M-10P4
2-wire DC6-36V	NO		LJA18-5D1	LJA18M-10D1
2-wire DC6-36V	NC		LJA18-5D2	LJA18M-10D2
2-wire AC90-250V	NO		LJA18-5A1	LJA18M-10A1
2-wire AC90-250V	NC		LJA18-5A2	LJA18M-10A2
Detection distance			5mm±15%	10mm

A.Delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.

C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

Prod Model:	LJA18
Diameter And Length:	18mm, 52mm
Working Temperature:	-20 Centigrade to +70 Centigrade
Backlash:	<10% Proximity Distance
Usage:	Position Sensor
Working Power:	DC6-36V, AC90-250V
Measuring Material:	Magnetic Metal ( Iron Steel and Copper)
Length Of Output Wire:	Level 1.5m ( Elect by Yourself)
Output:	Switching Sensor
Theory:	Magnetic Sensor
