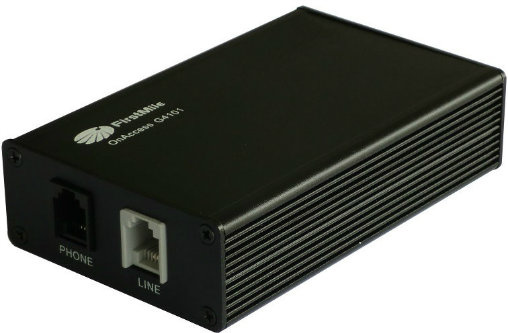

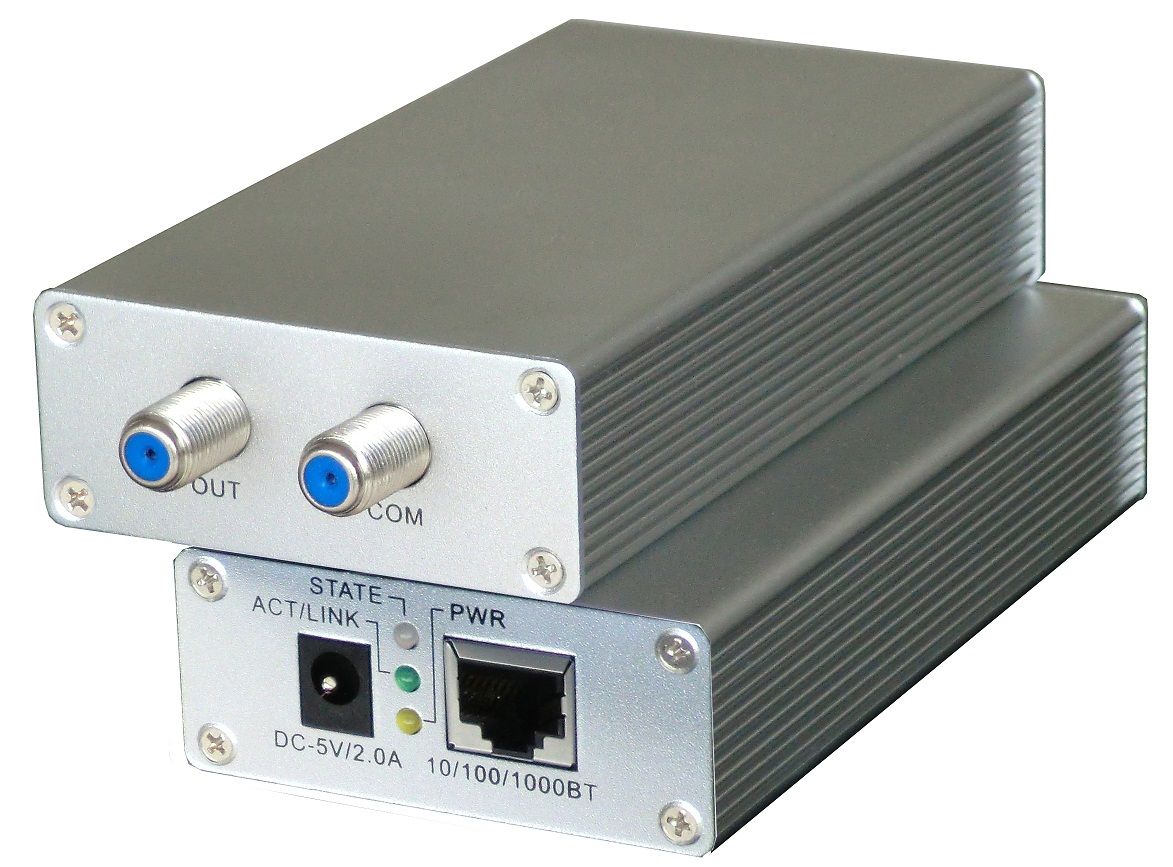

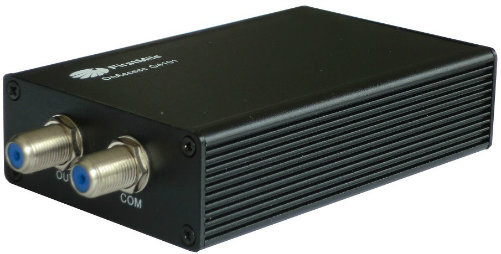

G. Hn Ethernet Eoc Slave over Coax
Egress /Ingress rate management control and broadcast storm control.
IEEE 802.1Q tagged VLAN, port based VLAN
Various QoS capability (IEEE 802.1p / port / Diffserv)
SFF 8472, Digital Diagnostic Monitor
Support port mirroring and port isolate
Support SNMP trap and SNMP client
MIB Counter
Upgrade firmware, backup configuration, restore configuration
Firmware upgrade via TFTP.
IGMP snooping for filtering multicast traffic
Perfect network management through web browser, CLI, Telnet /serial console.
Support SNMP v1/v2c/v3 for different levels of network management
Support three level user for manage
Supports 1Gbps PHY bit rate over single medium
State-of-the-Art LDPC forward error correction (FEC)
Remote configuration management integrated on-chip
Remote one-step firmware upgrade
Upload configuration files, notches management
Reliable HD IPTV and internet distribution
Unique solution for Last Mile, MDU & Campus
Up to 500m Bi-Directional solution with no need to upgrade/change the existing infrastructure
Up to 450 Mbps of actual throughput over coax
Compliance & Certifications
ITU-T G. Hn standard functionality (G. 9960 system architecture and PHY layer, G. 9961 data link layer, G. 9962 management plane)
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.1p for CoS (Class of Service)
IEEE 802.1Q for VLAN Tagging
Certifications: Complies with UL, CE, CUL, FCC Part 15 Class B, EMC 89/336/EEC, ICES-003Reliability:
MTBF: >50,000 Hours
Company Profile
After-sales Service
5-year Warranty
We want you to be fully satisfied with every item that you purchase from FirstMile. We provide 5-year warranty.
Exchange & Return Policy
1. Technical support hotline
Any technical related question you need to inquiry about during using products of FirstMile, please contact us.
Our technical support engineers will provide you with professional technical support.
2. Fast response
If you feedback equipment failure during product use, FirstMile will immediately respond to your requests and solve the failure in the shortest time.
Tel: +86-0755-26712428
Website:
http://www.firstmile.hk/en/
http://shenzhenfirstmile.en.made-in-china.com/
Founded in January 2003, FirstMile is a technology company focused on the development, manufacturing and marketing of active equipment of Ethernet fiber access.
Taking advantage of our solid technical knowledge and skills in fiber technology, Ethernet/IP and CATV networks, FirstMile introduced its first Active Ethernet based FTTH full service platform based OnAccess in 2005, with a mission to provide open access broadband networks through fiber. We have since become a reliable partner of many FTTH network operators.
Over the years we have also gained extensive technical expertise as well as practical experience in industrial communications. We now can offer a complete portfolio of industrial networking products. Our industrial switches can deliver a full suite of carrier Ethernet features under harsh operating conditions. FirstMile's industrial products have been widely applied in multiple industrial sectors such as energy, transportation and industrial automation.
Our customers are network operators worldwide who provide open access to service providers. Up to now, FirstMile's products have been shipped to over 50 countries including USA, Germany, Australia, Albania, Venezuela, Hungary, Russia, Bulgaria, Netherlands, Finland, Demark, Ukraine, Turkey, Macedonia, Poland, Sweden, Norway, Singapore and Malaysia.
FirstMile has also offered ODM and custom design services to customers from Germany, Sweden, Poland, Turkey, Netherlands, Australia, Hong Kong and etc.
