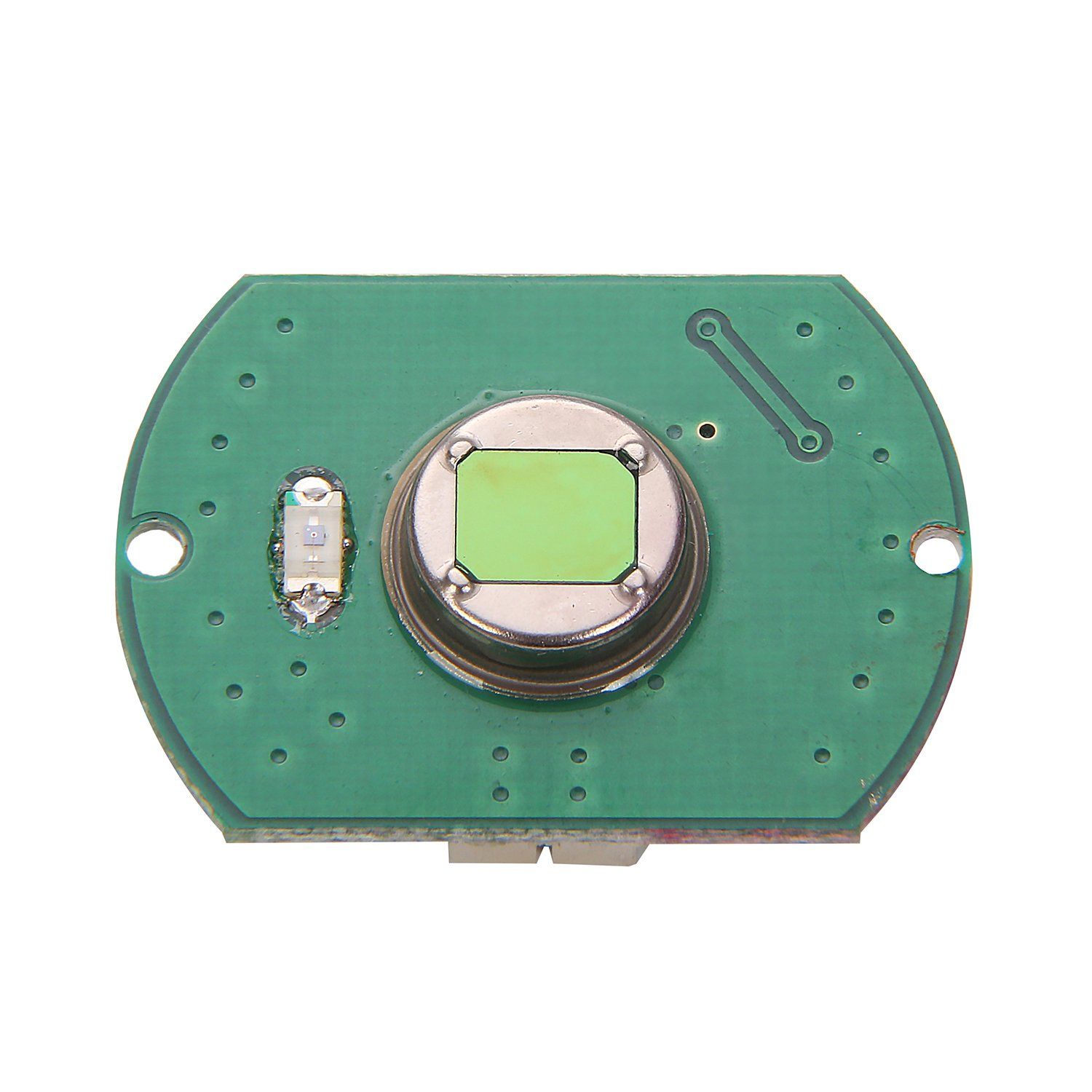

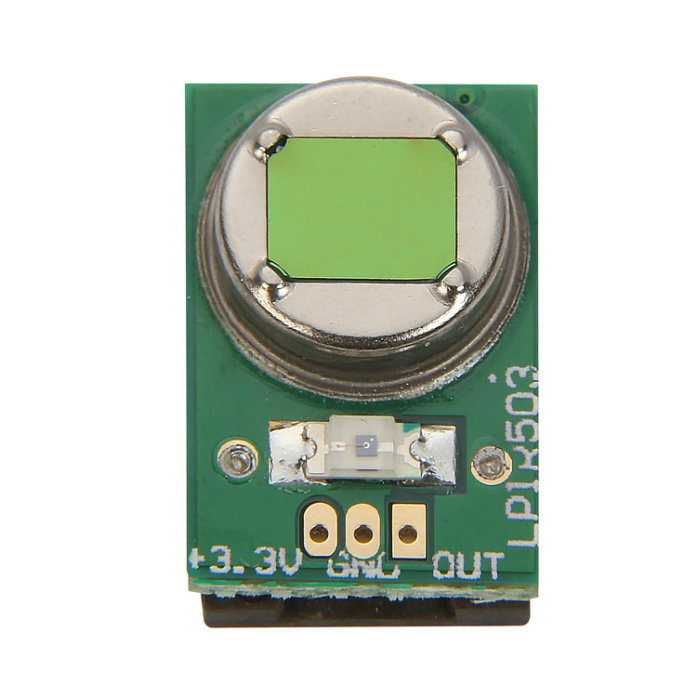

Good Quality Passive Infared Detector PIR Module for Sensor Switch

Name: Good Quality Passive Infared Detector PIR Module for Sensor Switch
Brand: all-electronics-online.com
SKU: 818931905
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	US $ 0.82-0.92/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Main features:
Full-digital treatment, low voltage and low power consumption;
Infrared detection elements and signal treatment lines integrate in the metal screening cam and have strong antijamming capability
Output signals have time, sensitivity, environment light enabled control to meet majorities of application requirements.
Small volume and convenient for small-scale applications

Performance Parameters

1. Maximum rating
Parameters	Symbols	Minimum	Maximum	Units	Remarks
Supply voltage	VDD	-0.3	15	V
Operating temperature	Tst	-20	60	ºC
Pin limit	Into	-100	100	mA
Storage temperature	Tst	-30	60	ºC

2.Working conditions(T=25c )
Parameters	Symbols	Minimum	Typical value	Maximum	Units	Remarks
Supply voltage	vdd	3.3	8	15	V	Internal steady pressure 3v
Working current	IDD	12	15	20	uA
Low output current	IOL	10			mA	VOL<1V
High output current	IOH			-10	mA	VOH>VDD-1V
Locking time of output low level	TOL		2.3		s	Unadjustable
Locking time of output high level	TOH	2.3		4793	s	Settable
Voltage range of delay time setting	VIN	0		0.75	V
Voltage range of sensitivity setting	VIN	0		0.75	V
Light control enabled low input voltage	VIL			0.6	V
Light control enabled high input voltage	VIH	1.2			V
Frequency domain of filters	FCLK	0.44		7	Hz
Internal frequency	CLK		64		KHz
Detection angle		-65		+65	.
Detection range		5		12	M

Frequency:	433.92MHz
Detection Type:	PIR
Material:	PVDF

LADDER ELECTRONICS Co., Ltd. is a high-tech Electronics Company, which was established in 2002. We have excellent teams - most managers have over ten years' experience in SAW field or other electronics fields. All employees have been well trained- over 26% are technical workers and over 10% are engineers.

The company has wide long-term cooperation with universities and colleges, such as Zhejiang University, Nanjing University, Zhejiang University of Technology, Sichuan University, etc. The company also introduced learned scholars team from Germany. There are three main independent design and manufacturing products, including infrared sensor module, intelligent lamp and infrared switch.

1. LED infrared sensor night lamp, infrared sensor switch.

2. Intelligent sensor model, Nano organic ferroelectric infrared detector, infrared control module and Infrared sensor array module.

3. SAW components: Manufacturing Surface Acoustic Wave (SAW) components.
