Green Environmental Electric Silicon Belt Heater

Name: Green Environmental Electric Silicon Belt Heater
Brand: all-electronics-online.com
SKU: 727485632
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 10-60/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Jaye
Voltage:	Customized
Wattage:	Customized
Logo Mark:	Make as Customer Required
Insulation:	Red Sponge Insulator
Thickness:	1.5mm or Customized
Power Design:	3-5W/Square Centimetre
Working Temperature:	-40-250 Degree
HS Code:	85168000

Product Description

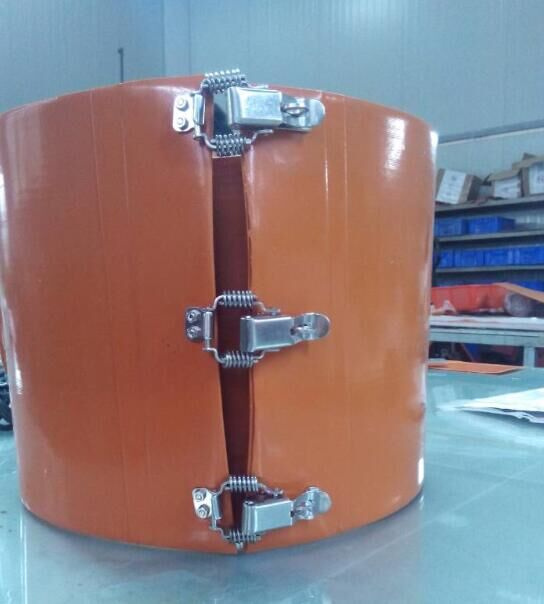

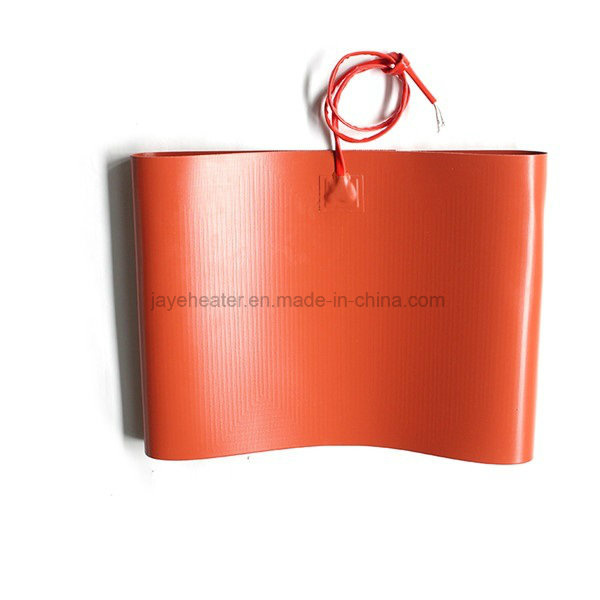

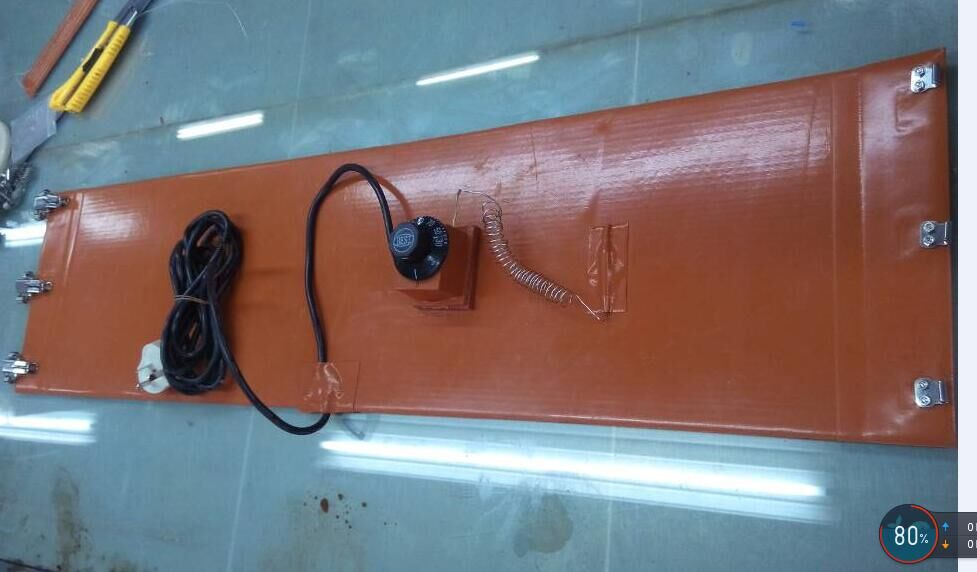

Green Environmental Electric Silicon Belt Heater

It is beneficial to take out liquid and coagulum in drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.

Product Specification

	Oil Drum Heater 200Liter	Oil Drum Heater 20Liter		Oil Drum Heater 200Liter		Oil Drum Heater 200Liter
Size	250×1740	200×860		125×1740		150*1740
Capacity	200V 2000W	200V 800W		200V 1000W		200V 1000w
The temperature regulates	30~150ºC
Weight	Invite:0.5kg		Invite:0.4kg	Invite:0.3kg	Invite:0.35kg

Applications

Freezing and compression prevention for various instruments and devices.Medical equipment such as blood analyzer, test tube heater.Computer auxiliary equipment, such as laser printer.Vulcanized surface of plastic film.

Technical Data

Rated Power	Customized	Lead Length	200mm
Rated voltage	12V-380V	Wire tension	15N×15N
Maximum size	1000m-1200m	Minimum size	20mm×20mm
Ambient Temperature	--60-----250ºC	Highest temperature	250ºC
Maximum thickness	1.5mm-4mm	Withstand voltage	1.5KV
Insulation resistance	≥5MΩ	Size deviation	±0.5%
Power deviation	±5%	Wire Type	Silicone braided wire

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
