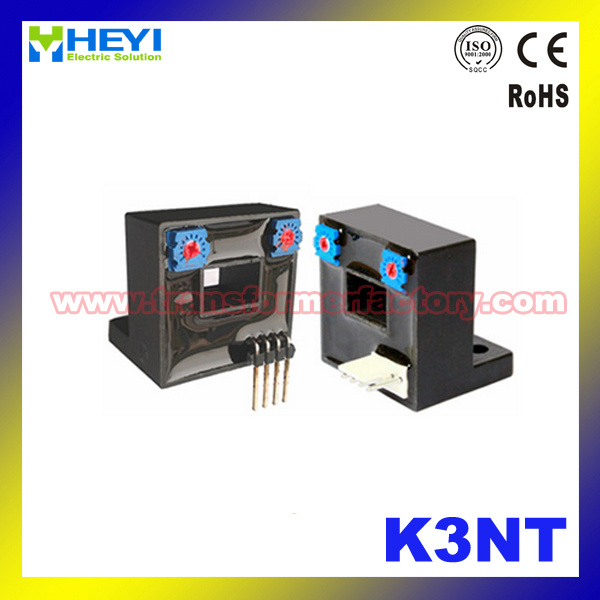

K3NT series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC,RL=2KΩ,CL=10000PF)

Type	K3NT-30A	K3NT-50A	K3NT-100A	K3NT-150A	K3NT-200A	Unit
Rated current(Ipn)	±30	±50	±100	±150	±200	A
Measure range(Ip)	0-±60	0-±100	0-±200	0-±300	0-±400	A
Rated output	@Ip=±Ipn ±1±1%					V
Zero voltage	@Ip=0 2.5±0.5%					V
Supply voltage	+5,+12,+15					V
Power Consumption	≤15					mA
Zero offset voltage	@Ip=0 ±20					mV
Magnetic offset	@Ip=±Ipn-0 ±15					mV
Offset drift	@ -40~+85ºC ≤±0.5					mV/ºC
Output drift	@ -40~+85ºC ≤±0.5					mV/ºC
Linearity	@Ip=0-±Ipn ≤1					%FS
Response time	@50A/μS, 10%-90% ≤5					μs
Galvanic isolation	@ 50HZ,AC,1min 2.5					KV

Applications

·AC variable speed drives
·Static converters for DC motor drives
·Variable speed drives
·Power supplies for welding applications
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Switched Mode Power Supplies (SMPS)

1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+5V 2:OV 3:V0UT 4:2.5V

Directions for use

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
2. Customs can adjust output amplitude of the sensor by needs.
3.Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	26	g

Prod Model:	K3NT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Usage:	Hall Sensor
Theory:	Hall Sensor
Courier:	DHL, TNT, FedEx
Material:	Mixture
