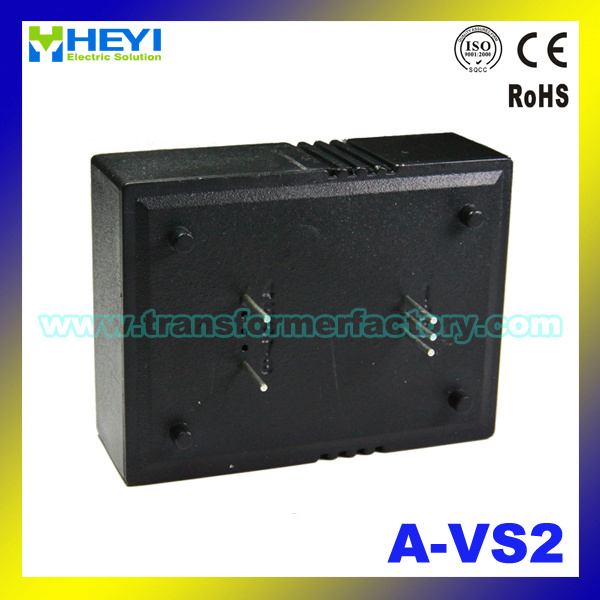

A-VS2 series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC,RL=2KΩ,CL=10000PF)

Type	A-VS2- 50V	A-VS2- 100V	A-VS2- 200V	A-VS2- 500V	A-VS2- 800V	Unit
Rated voltage(Vpn AC)	±50	±100	±200	±500	±800	V
Measure range(Vp AC)	0-±100	0-±200	0-±400	0-±1000	0-±1000	V
Rated output	@Vp=±Vpn ±20±1%					mA
Turns ratio(Np/Ns)	3000:1200					T
Measure resister	54~360					Ω
Supply voltage	±12,±15					V
Power Consumption	≤20+IpX(Np/Ns)					mA
Offset current	@Vp=0 ±0.2					mA
Offset drift	@ -40~+85ºC ≤±0.5					mA /ºC
Linearity	@Vp=0-±Vpn ≤0.2					%FS
Response time	≤20					ms
Galvanic isolation	@ 50HZ,AC,1min 2.5					KV

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+V 2:NC 3:-V
4:+15V 5:NC 6:OV 7:-15V 8:IOUT

Directions for use

1. When the voltage will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2.Custom design in the different rated input current and the output current are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature (TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	43	g
