High Accuracy Pressure Transmitter Ppm-T132A for Low Pressure Measurement

Name: High Accuracy Pressure Transmitter Ppm-T132A for Low Pressure Measurement
Brand: all-electronics-online.com
SKU: 829534875
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ppm-T132A
Certification:	CMC

Product Description

Description

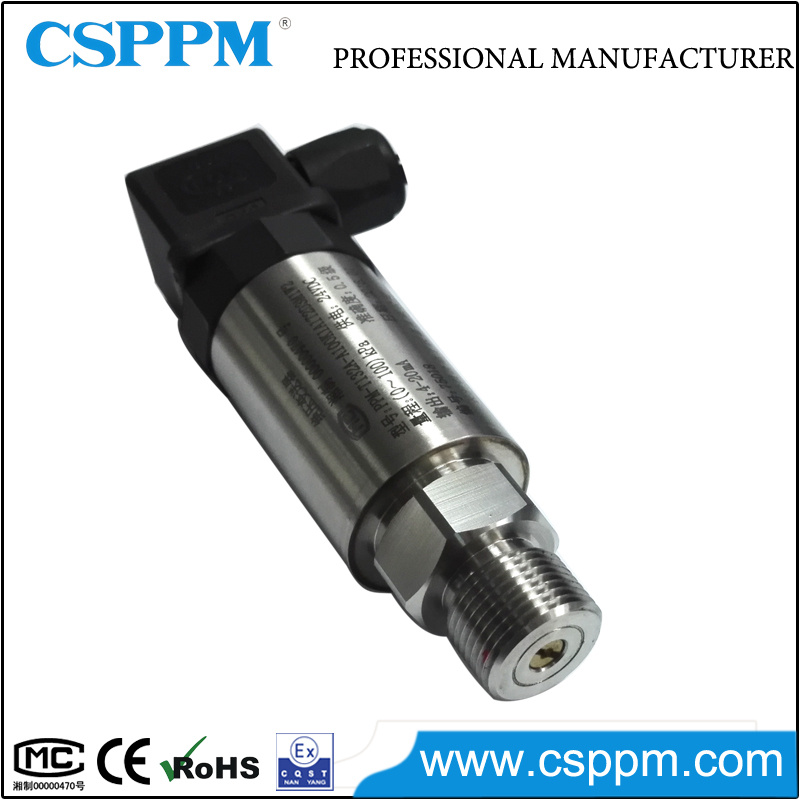

The model PPM-T132A pressure transmitter is especially designed for low pressure measurement, from 0...500 Pa to 0...60MPa. It adopts integral stainless steel fully sealed structure. It features small size, strong anti-overload ability, good stability and long working life. Different pressure types are available including Gauge pressure, Sealed pressure, Absolute pressure.

Features
Pressure range from 0...500 Pa to 0...60MPa
High accuracy up to 0.2%FS
Strong anti-overload ability
Output: 4-20mA, 0-5V, 0-10V and other on request
Process connection M20*1.5, G1/4 and other on request

Application
Machine building, Ship building, Measurement and control technology, Hydraulics and pneumatics, Pumps and compressors, urban water supply, Petroleum Industry , Chemical industry.

Specification

Measuring medium	Gas, liquid
Pressure type	Absolute pressure(A),Sealed pressure(S),Gauge pressure(G)
Measuring range	0~500Pa,1kPa, 2kPa, 5kPa, 10kPa, 20kPa, 30kPa, 40kPa, 50kPa,100kPa,150kPa,200kPa,300kPa,400kPa,500kPa,700kPa ,1MPa,1.5MPa,2MPa,3MPa,5MPa,6MPa,7MPa,10MPa,15MPa, 20MPa,30MPa,40MPa ,50MPa,60MPa
Power supply	12~36VDC
Output signal	4~20mA,0~5VDC,1~5VDC,0~10VDC,0.5~4.5VDC
Accuracy	0.2%FS,0.5%FS;1.0%FS
Temperature drift	≤±0.015%FS/ºC
Long-term stability	≤±0.5%FS/year
Ambient temperature	-30ºC~+85ºC
Medium temperature	-45ºC~+85ºC
Storage temperature	-40ºC~+105ºC
Ingress protection	IP65
Process connection	M20×1.5,M14×1.5,M12×1,G1/4,G1/2,1/4NPT or other on request
Over pressure	150%FS
Damage pressure	300%FS
Vibration resistance	5~1000Hz
Shock resistance	50g
Material	Stainless Steel 1Cr18Ni9Ti Stainless Steel 316

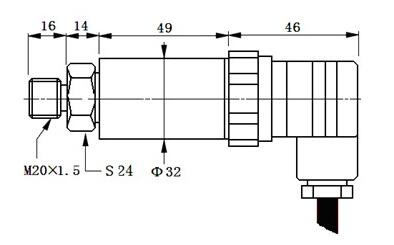

Dimensions in mm

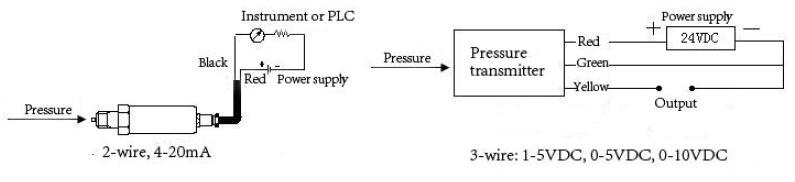

Wiring diagram

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
