High Efficiency Reflection Photoelectric Switch Sensor Price for Sale

Name: High Efficiency Reflection Photoelectric Switch Sensor Price for Sale
Brand: all-electronics-online.com
SKU: 840550295
Availability: InStock
Rating: 4.6 (115 reviews)

Price:	US $ 2-15piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

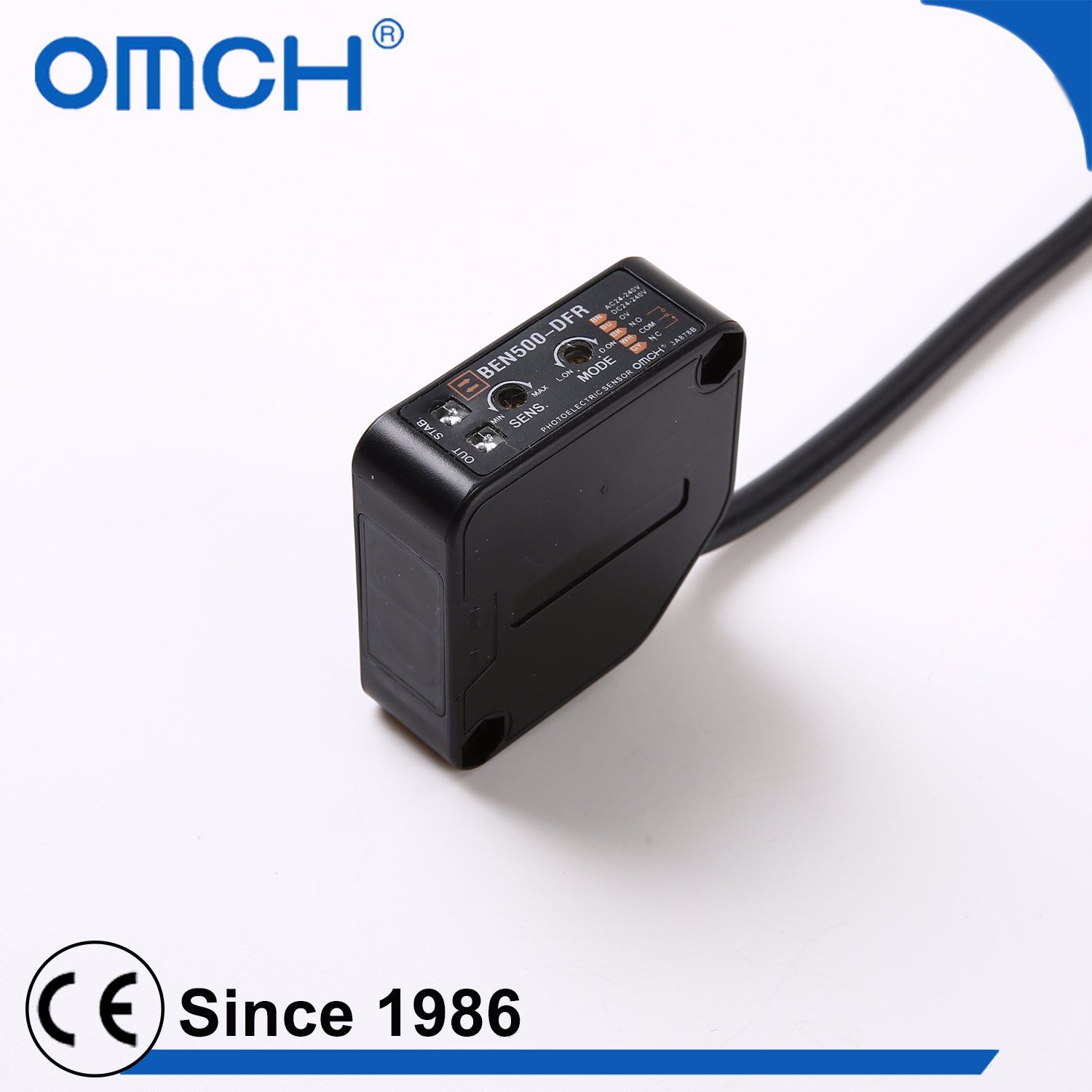

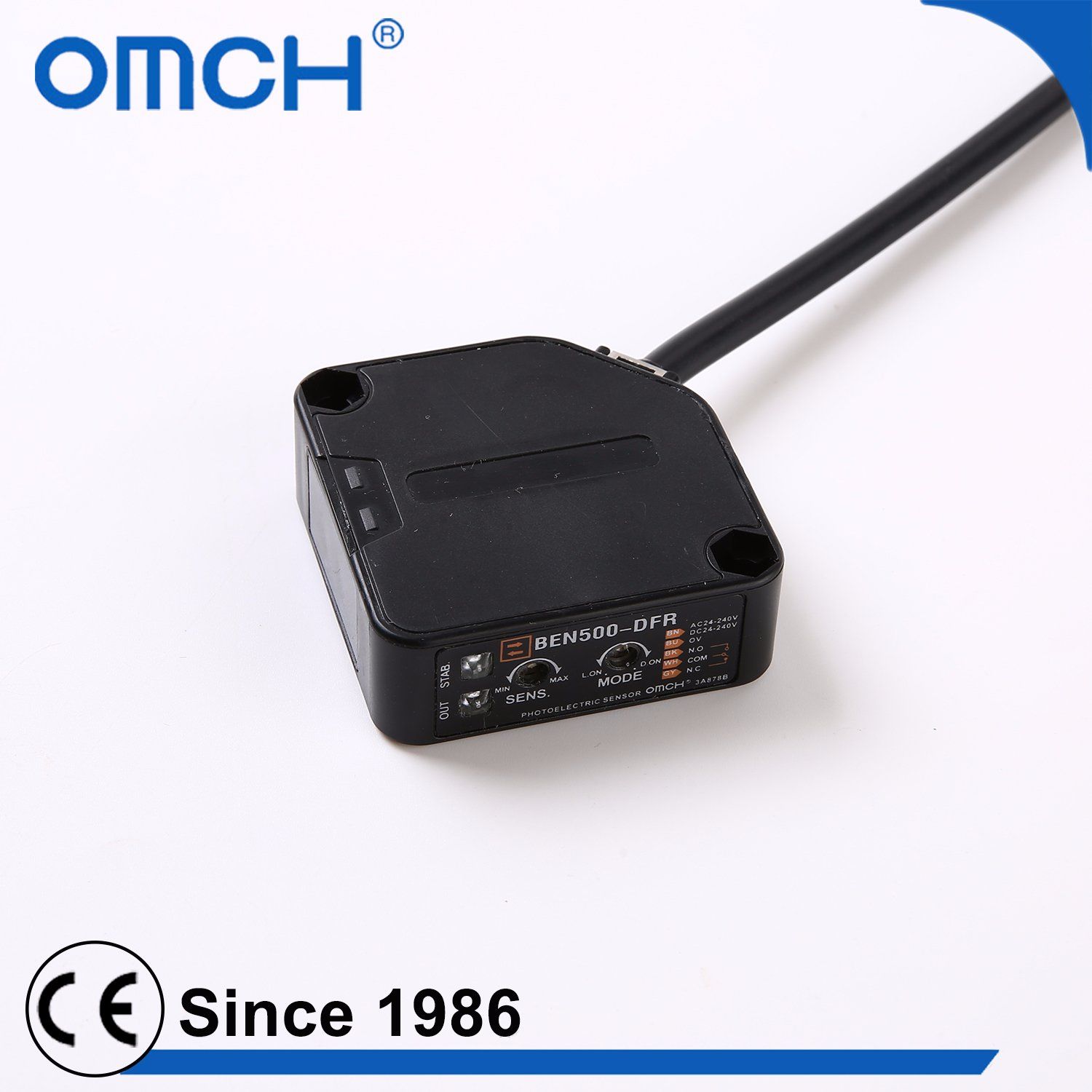

High efficiency reflection photoelectric switch sensor price for sale

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Newly added current over-load protection

Long service life, high reliability and strong resistance property to environment

Red LED indicates that it's available to detect the sensor operating state

Newly added metal housing to improve the installation intensity

Countermeasure to improve the housing intensity and to solve disconnection

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension			18x50x50
Mounting way			Diffuse type	Feedback reflex type	Through beam type
Type	DC type	NPN NO, NC	BEN300-DFR	BEN5M-DFR	BEN10M-DFR
		PNP NO.NC
	AC, DC relay output Adjustable light pass through the dark
Detection distance			30Cm+/-10%	5m±10%	10m±10%
Set distance			Transparent/Opaque Object	Opaque Object	Opaque Object
Standard detection object			sensitivity adjuster	sensitivity adjuster	Fixed
Response time			30ms	30ms	30ms

Characteristic Parameters:

DelP2 distance:	10% below of the detection distance
Detection object	Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:13mA below D type:0.8mA below A type:1.7mA below
Control output	N.P type:300 mA below D type:200mA below A type:400mA below
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection structure	IP65 ICE specification
material	Housing: plastic; Detection surface: ABS

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.

Prod Model:	BEN series

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
