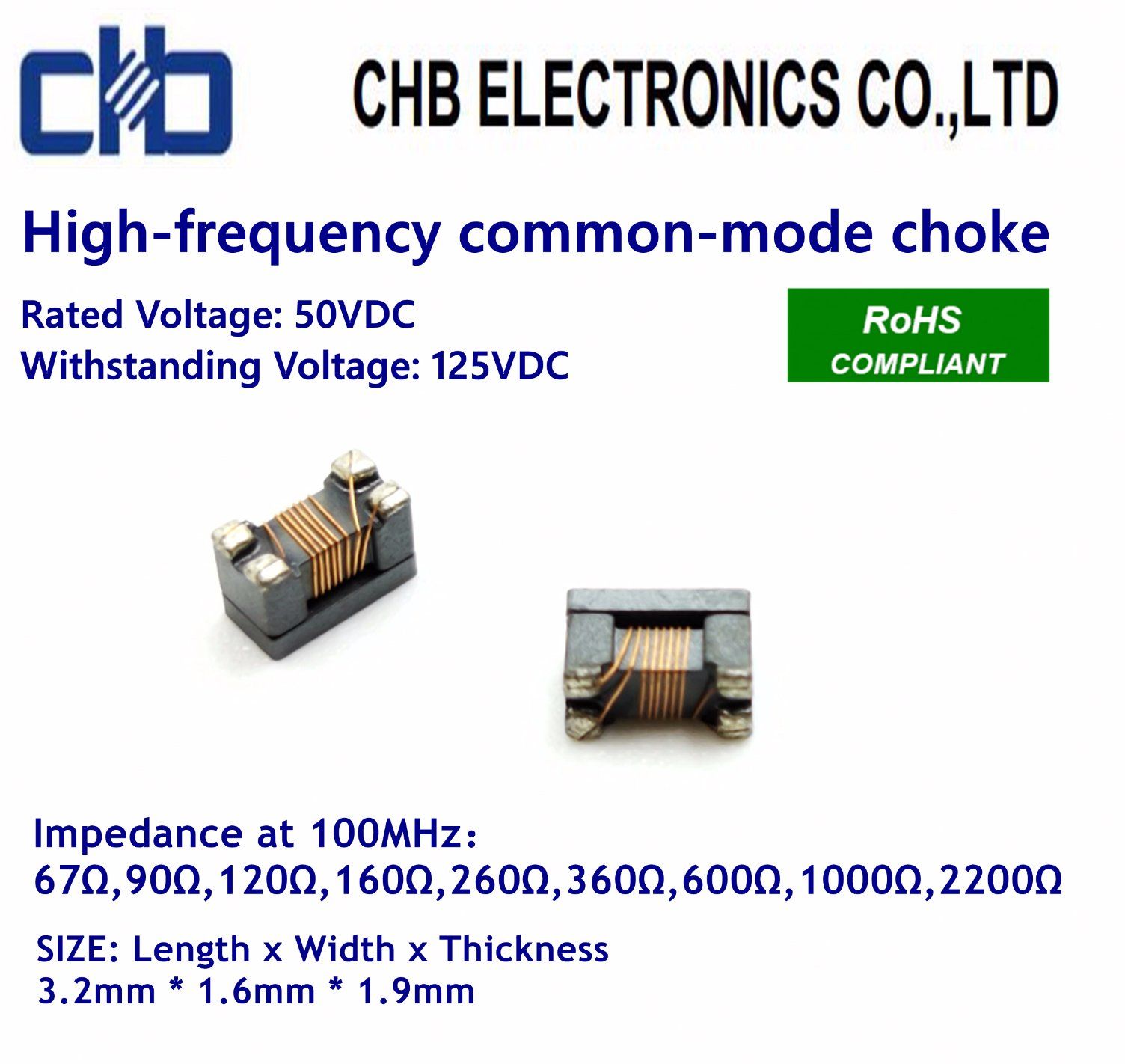

High-Frequency Common-Mode Choke 3216 (1206) for USB2.0/IEEE1394 Signal Line, Impedance~2200ohm at 100MHz, Size: 3.2mm * 1.6mm * 1.9mm

Name: High-Frequency Common-Mode Choke 3216 (1206) for USB2.0/IEEE1394 Signal Line, Impedance~2200ohm at 100MHz, Size: 3.2mm * 1.6mm * 1.9mm
Brand: all-electronics-online.com
SKU: 721069032
Availability: InStock
Rating: 4.4 (43 reviews)

Price:	US $ 0.028-0.035/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

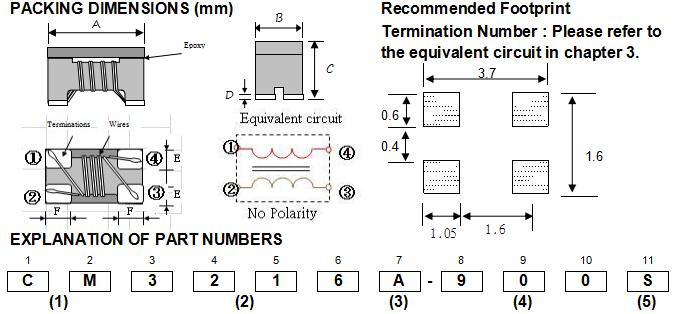

EXPLANATION OF PART NUMBERS:

(1) Product Symbol: Chip common mode choke

(2) Shapes and dimensions: Length(A) x Width(B) x Thickness( C)
Dimensions in mm (inch)

TYPE

0806

0.85± 0.1

0.65± 0.1

0.45 max.

0.15 max.

0.27Typ.

0.22Typ.

1210

1.2 ± 0.2

1.0 ± 0.2

0.9 max.

0.15 max.

0.36Typ.

0.33Typ.

1608

1.6 ± 0.1

0.8 ± 0.1

1.1 ± 0.1

0.1 ± 0.1

0.25Typ.

0.33Typ.

2012

2.0 ± 0.2

1.2 ± 0.2

0.2 ± 0.1

0.40Typ.

0.45Typ.

2520

2.5 ± 0.2

2.0 ± 0.2

1.8 ± 0.2

0.2 ± 0.1

0.4 ± 0.1

0.45 ± 0.1

3216

3.2 ± 0.2

1.6 ± 0.2

1.9 ± 0.2

0.2 ± 0.1

0.60Typ.

3225

3.2 ± 0.2

2.5 ± 0.2

2.2 ± 0.2

0.2 ± 0.1

0.80Typ.

0.65Typ.

4532

4.5 ± 0.2

3.2 ± 0.2

2.8 ± 0.2

0.2 ± 0.1

1.2Typ.

1.0Typ.

(3)Shielding Type :

1GHz

USB2.0/IEEE1394 Signal Line

3.5GHz

HDMI 1.4 CAT1

6GHz

HDMI 1.4 CAT2/Display Part

7.5GHz

HDMI 1.4 CAT2/USB3.0

10GHz

HDMI 1.4 CAT2/ USB3.0/ USB3.1

(4) Impedance
670:67Ω;900:90Ω;121:120Ω;161:160Ω;181:180Ω;221:220Ω;261:260Ω;361:360Ω

(5) Tolerance: S=±25%;M=±20%

ELECTRICAL CHARACTERISTICS

P/N	Z(Ω)	DCR (Ω)	Idc(mA)	Rated Voltage	Insulation Resistance	Withstanding Voltage
	Common Mode
	Impedance	[ Max ]	[ Max ]	Vdc	IR	Vdc
	at 100MHz			(V)Typical	(MΩ)Min.	(V)Typical
CM3216A-670S	67	0.25	400	50	10	125
CM3216A-900S	90	0.30	400	50	10	125
CM3216A-121S	120	0.35	370	50	10	125
CM3216A-161S	160	0.40	340	50	10	125
CM3216A-261S	260	0.50	310	50	10	125
CM3216A-361S	360	0.60	290	50	10	125
CM3216A-601S	600	0.80	260	50	10	125
CM3216A-102S	1000	1.00	230	50	10	125
CM3216A-222S	2200	1.20	200	50	10	125

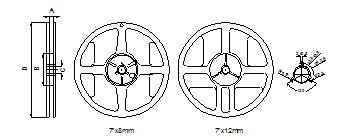

Reel Dimension & Tape Dimension

Type

A(mm)

B(mm)

C(mm)

D(mm)

7"x8mm

9.0±0.5

60±2

13.5±0.5

178±2

7"x12mm

13.5±0.5

60±2

13.5±0.5

178±2

Size

Ao(mm)

Bo(mm)

Ko(mm)

W(mm)

E(mm)

F(mm)

Po(mm)

P1(mm)

Do(mm)

0806

0.95±0.10

1.05±0.10

0.50±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

1210

1.15±0.10

1.40±0.10

0.93±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

1608

1.65±0.10

1.00±0.10

1.18±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

2012

2.35±0.10

1.50±0.10

1.45±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

2520

2.75±0.10

2.20±0.15

2.00±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.0±0.1

3216

3.50±0.10

1.88±0.10

2.10±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

3225

3.60±0.10

2.80±0.10

2.20±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.0±0.1

4532

3.45±0.10

4.90±0.10

3.05±0.10

12.00±0.20

1.75±0.10

5.50±0.05

4.0±0.05

8.0±0.10

1.5+0.1,-0

Packaging Quantity

Chip Size				0806		1210		1608		2012		2520		3216		3225		4532
8mm/ Reel				4000		3000		2000		2000		2000		2000		1000		500

Prod Model:	CM3216-222S
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Chb

2003: Shenzhen Factory Founded.

• 2006: ISO 9001: 2008 Certified.

• 2009: ISO 14001: 2004 Certified.

• 2009: Taiwan sales Office Established.

• 2013: Guizhou Factory

• 2015: Moved to New ShenZhen Factory.

Components provider of:

-- Mobile Phone, Computer, LCD TV, Hard Disk,

Automobile, Consumer.

USB 2.0 & 3.0, SATA, HDMI, Audio Jacks, DC Jacks,

Battery, SD Card, WTB, Metal part, Cables

ShenZhen Factory

Headquarter(Sales, Design, Incoming&Shipments, Connectors Manufacture Plant)

Occupied Area: 140, 000 Sq. FT.

Employees: 450

GuiZhou Factory

Cables Manufacture Plant

Occupied Area: 100, 000 Sq. FT.

Employees: 550

ShenZhen Factory

Headquarter(Sales, Design, Incoming&Shipments,

Connectors Manufacture Plant)

Occupied Area: 140, 000 Sq. FT.

Employees: 450

We have 40 USB connector, HDMI connector and audio connector of the invention patent.

Our company has lots of well-known customers. It owns experienced, high skillful, up-and-coming, and internationalized management team and high-quality staff. Relying on scientific management model, rich technical strength, and advanced manufacturing and testing equipment, the company is actively expanding markets both at home and abroad, and is catching up with industry leading enterprises. Meanwhile the comprehensive and complete production model from research and development, precision mould manufacturing, components stamping and injection, finished product assembly to final inspection enables us to preferably control product quality and provide customers with favorable price and best delivery date.

Our company adheres to management spirit of " Integrity, Innovation, Self-improvement, Responsibility" and has built up the modern enterprise management system. Meanwhile it obtained certificate of ISO9001 quality management system in 2006, LED in ERP operation management system in 2007, and passed ISO14001: 2004 environment system in 2009 and OHSA18000 in 2012. Furthermore, It is a member of USB and HDMI association.

In order to improve the competitiveness of products, in 2015, we achieved CHB 100% stake. CHB products: USB2.0, USB3.0, USB3.1 common mode inductance, and Palconn product application coincidence. Through the merger, we are able to provide customers with proven USB connector products and EMI complete solution. After the merger, will retain Palconn and CHB 2 brands. Unified sales management by Palconn.

Major customers:

Samsung, LG, WD(Western Digital), ECHOSTAR, MI, ARRIS, F5, PCT, LEXMARK, TIVO, FOXCONN, SHARP, ORION, GOER TEK, PHIHONG, SKYWORTH, TENPAO, SSK
