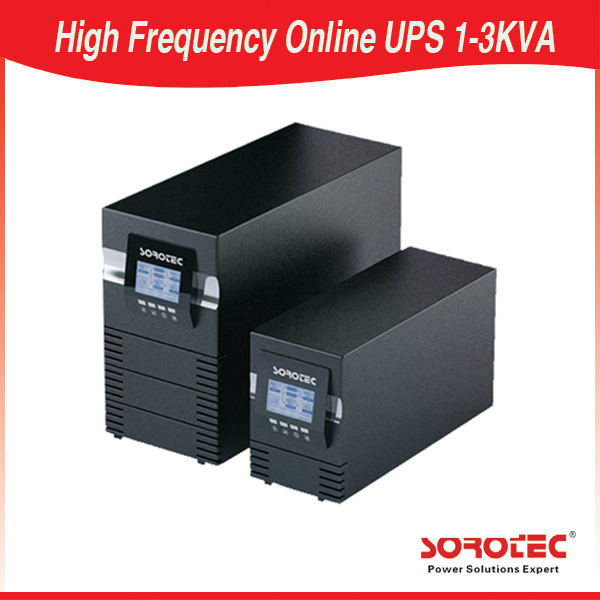

Hihg Frequency Online UPS HP9116C series (1kVA~20kVA)Key Features:1)Large Blue Back Light LCD for Detailed Real-Time UPS Status Display
2)High frequency UPS and double conversion on-line technology
3)Fully digitized microprocessor control
4)Microprocessor control guarantees high reliability
5)Comprehensive Self-Protection Design
6)Audible Alarm Mute
7)Cold Start Funcition
8)Auto Self-Testing System whileTurning on UPS
9)Wide Input Voltage Range
10)Automatic start & inspect
12)Zero transfer time
13)Advanced battery management
14)Automatic battery charge in UPS off mode
15)Lightning and surge protection
16)Short circuit and overload protection
17)Fan speed auto control when loads varies
18)Optional extension battery pack
19)Maintenance Bypass Switch For 6-20K
20)N+X Parallel Redundancy and Capaacity Expansion For 6-20K
Applications:Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom

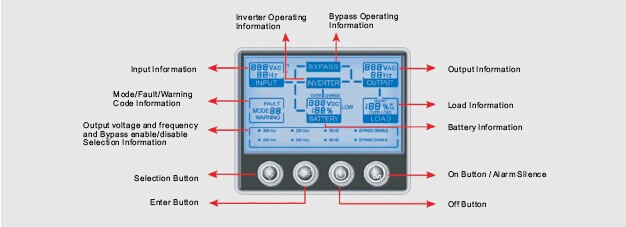

Tendy&Elegant LCD Design for real-time UPS systm information:

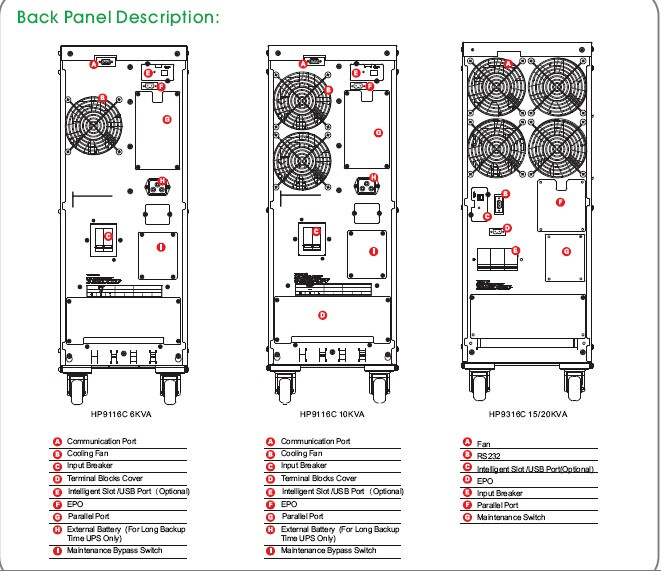

Back Panel Description:
Technical Specifications of High Frequency Online UPS HP9116C 6-10K (1pH in/1pH out):| Model | HP9116C 6-10KVA |
| 6KT | 6KT-XL | 10KT | 10KT-XL |
| Rated Power | 6KVA/4800W | 10KVA/8000W |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 50/60 Hz |
| Input |
| VoltageRange | 176~279VAC (± 3VAC) |
| FrequencyRange | 50HZ: (46~54HZ); 60HZ: (56HZ~64HZ) |
| Power Factor | 0.98 |
| Output |
| Voltage Regulation | 220/230/240X(1± 2%)VAC |
| Frequency Regulation | 50/60 Hz± 0.05Hz |
| Power factor | 0.7/0.8 (Optional) Standard 0.7 |
| Voltage distortion | Linear load< 3% Non-linear load< 6% |
Overload
Capability | 110%~150% for 30s change to bypass model, Recover after load normal |
| Current Crest Ratio | 3; 1 |
| Transfer time | 0ms (AC mode→ Battery mode) |
| Battery |
| DC Voltage | 240VDC |
| Recharge Time | 7hrs to 90% of capacity after full load discharge |
| Recharge Current | 2A | 4.2A | 2A | 4.2A |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP card (optional), USB (optional) |
| Environment |
| Operation Temperature | 0~40 º C |
| Humidity | 0~95%non-condensing |
| Storage Temperature | -25 º C~55 º C |
| Sea level elevation | < 1500m |
| Noise Level(1m) | < 55dB |
| Physical Characteristic |
| Wright(KG) | N. W. | 81 | 35.5 | 84 | 36 |
| G. W. | 89 | 39.5 | 91 | 42 |
| Dimension(D x W x H)mm | 570X260 X717 |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
