High Frequency Online UPS 20-80KVA With Advanced IGBT Rectifier technologyKer Feature1. Large LCD Graphical display panel, convenient for operate
2. Advanced IGBT rectification, Input power factor: 0.99
3. Input current harmonic < 3%
4. The Efficiency of the machines is as high as 94%
5. Connect up to 8 units in parallel for maximum flexibility (no parallel kit required), and compatible to battery share in the parallel mode, which helps the customers to extend the system capacity with lowcost.
6. Intelligent management of battery charging and discharging.
7. Twin-Chiannel line input.
8. Large LCD Graphical display panel, convenient for operation.
Applications:Severs, Data Center, Critical network devices, Sensitive electronic equipment, Telecom.
High Frequency Online UPS Product Descriptions:| Model | HP9330C 20-80KVA |
| 20K | 20K-XL | 30K-XL | 40K-XL | 60K-XL ISO | 80K-XL ISO |
| Rated Capacity | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| Rated Voltage | 380/400/415VAC Three-phase 4 line + earth line |
| Rated Frequency | 50/60HZ |
| Input |
| Voltage range | 380VAC± 25% |
| Frequency range | 50/60HZ± 5% |
| Wiring | Twin- channel line input |
| THDI | < 3% |
| Power factor | > 0.99 |
| Output |
| Voltage precision | 380VAC (± 1%); Three-phase 4 line + earth line |
| Frequency precision | 50/60HZ± 0.2% |
| Power factor | 0.8 |
| Current crest ratio | 3: 1 |
| Overload capacity | ≤ 110 % for 60 minutes; ≤ 125% for 10min; ≤ 150% for 1min; |
| Battery |
| Charging current | 0.5~4.5A (adjustable) |
| Backup time | 7mins | Determined by the amount of external-connected cells |
| Quantity | 28/30/32 (selective); compatible to battery share in the parallel mode |
Efficiency
|
| Line mode/BAT mode | 94% |
| ECO mode | 98% |
| Indication |
| LCD | I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
| Communications |
| Communication interface | RS232, AS400, RS485, Service, EPO, BAT temperature compensation,
Intelligent Slot, SNMP (Option) |
| Operation Environment |
| Temperature | 0~40º C |
| Humidity | 0~95% (no dewfall) |
| Storage temperature | -25º C~55º C |
| Altitude(M) | < elevation 1500m |
| Weight |
| Weight(KG) | Net
weight | 182.5 | 82 | 110 | 114 | 282 | 306 |
| Gross weight | 204 | 122 | 160 | 164 | 356 | 380 |
| Dimension (WXDXH)mm | 420X630 X1240 | 420X630 X950 | 490X680 X1180 | 600 X800 X1850 |

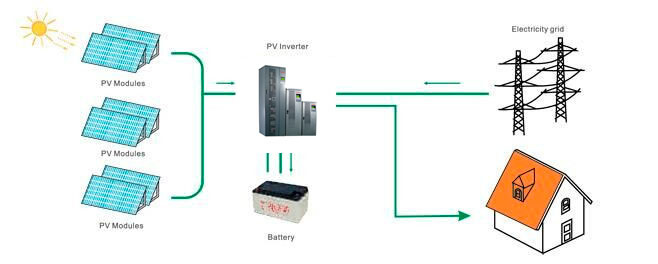

APPLICATION OF OUR PRODUCT:1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip
Introduction of Company Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
WHY CHOOSE US ?1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
FAQ1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.
.......................................................................................................................................................................................................................................
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
........................................................................................................................................................................................................................................
3.How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
.....................................................................................................................................................................................................................................
4.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................................................................................
