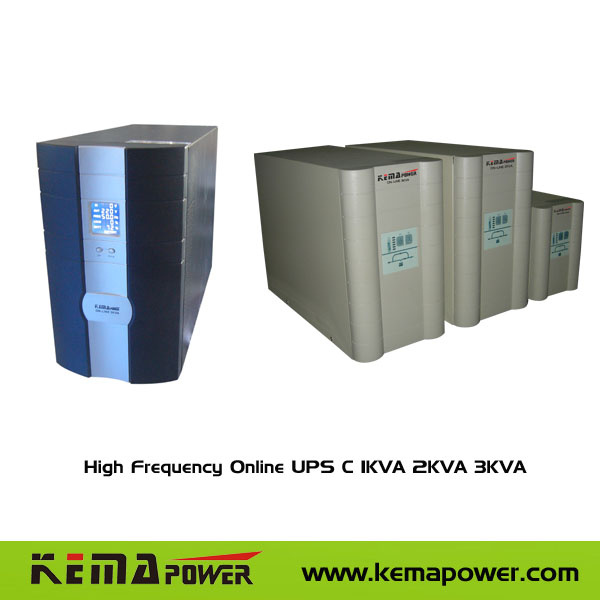

High Frequency Online UPS (C1-3K)* I/P: 220VAC or 110VAC ; O/P:220VAC or 110VAC ± 2%
* Capacity:1KVA / 2KVA / 3KVA
* Output PF: 0.8/0.9
* Wave Form:Pure sine wave
* Transfer Time:0 ms
* DC Voltage: 1K,36/24VDC; 2KVA & 3KVA, 96/72/48VDC
* Bat.:1KVA,3PCS*7.2AH, 2KVA & 3KVA 8PCS *7.2AH or External Batterys
Key Features1.High frequency and double conversion online UPS
2.Single Phase,0.9/0.8PF
3.Fully digitized microprocessor control
4.Wide input voltage range
5.Advanced PFC technology
6.Self-testing when UPS startup
7.Advanced battery management
8.Automatic battery charging in UPS off mode
9.Lightning and surge protection
10.Short circuit and overload protection
11.Smart RS232 communication with monitoring software
12.Battery voltage and load capacity display
13.LCD Disply ,SNMP card , USB Communication is option
Capacity: ( Standard type or Long Time type )A) Standard type:* C1k /1kVA/700W (with battery 3*7.2AH)
* C2k /2kVA/1.4KW (with battery 8*7.2AH)
* C3k /3kVA/2.1KW (with battery 8*7.2AH)
B) Long Time type:* C1kS/1kVA/700W/36VDC, External. Bat.
* C2kS/2kVA/1.4KW/96VDC, External. Bat.
* C3kS/3kVA/2.1KW/96VC, External. Bat.
Technical Specifications | Item | Model | C1K | C1KS | C2K | C2KS | C3K | C3KS |
| Capacity | VA / Watts | 1kVA/0.9KW | 1KVA / 0.8KW | 1KVA/1.8KW | 2KVA / 1.6KW | 3KVA/2.7KW | 3KVA / 2.4KW |
| Input | Normal voltage | 220VAC/ 110VAC |
| 220V Voltage range | a) (110±5 ~ 300±5) VAC when Load at 0-60% |
| b) (120±5 ~ 300±5) VAC when Load at 60-70% |
| C) (140±5 ~ 300±5) VAC when Load at 70-80%, |
| D) (160±5 ~ 300±5) VAC when Load at 80-100% |
| 110V Voltage range | 80-150VAC |
| Power Factor | 0.97 |
| Frequency range | Normal 50HZ/60HZ±4, 40~60Hz(set by winpower) |
| Output | Voltage range | 220/110VAC+-2% |
| Frequency range | 50Hz/60Hz+-0.2 (Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer time | 0 ms (AC mode and battery mode) |
| Transfer time: 4ms (typical 2.5ms),AC mode and bypass mode |
| Distortion (Full Load) linear load | ≤3% | ≤3% | ≤4% | ≤4% | ≤4% | ≤4% |
| Degree of distortion (Full Load) nonlinear load | ≤6% | ≤6% | ≤7% | ≤7% | ≤7% | ≤7% |
| Overload capacity | >108% 30s turn to bypass mode; >150%, 300ms turn to bypass |
| Load peak ratio | 3:1(max) |
| Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 36VDC | 36VDC | 96VDC | 96VDC | 96VDC | 96VDC |
| Battery number | 3*12V*7.2AH | External | 8*12V*7.2AH | External | 8*12V*7.2AH | External |
| Backup time (Full load) | >5Mins | depended on battery | >9Mins | depended on battery | >5Mins | depended on battery |
| Backup time (Half load) | 14Mins | depended on battery | 21Mins | depended on battery | 15Mins | depended on battery |
| Recharge time | 90%capacity after 5 hrs charging | depended on battery | 90%capacity after 5 hrs charging | depended on battery | 90%capacity after 5 hrs charging | depended on battery |
| Bypass | | Automatic while overload or ups fail. |
| Before ON | Default ON. Workable set by Winpower |
| Voltage Range | Default 80-260V, workable set by WinPower to 80-286V |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery low |
| Overload | Beeping twice every second |
| Fault | Beeping Continuously |
| Communications | RS-232 Interface,With monitoring software,USB Option,SNMP NetAgent Option |
| Surge protection | RJ-45 I/O port available for network or Fax/Modem |
| Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| Product size | WxDxH (mm) | 405*145*220 | 405*145*220 | 455*195*330 | 455*195*330 | 455*195*330 | 455*195*330 |
| package dimension | WxDxH (mm) | 505*485*345/2PCS | 505*485*345/2PCS | 605*350*505 | 605*350*505 | 605*350*505 | 605*350*505 |
| package weight | Kg/PCS | 30/2PCS | 18/2PCS | 34/1PCS | 15/1PCS | 35/1PCS | 18/1PCS |
| REMARK | * C*K --- Standard Type, C*KS---- Long Time Type. * 1KVA 24VDC,2K 3K 72VDC and 48VDC Option. * The 110AC type ,the C1K/2K/3K is 0.8PF too |
