Online Interactive Home UPS (Inverter With Charger) *I/P: 220VAC or 110VAC,O/P:220VAC or 110VAC
*12VDC For 500VA/800KVA/1KVA/1.2KVA ,0.8PFor 24VDC 1.2KVA,0.8PF
*Smart Charging 15-20Amp,Off Charging function
*Adjustable charge current or adjusted input Range
*AVR function is option (ZYSW*A )
*Silence setup and Cooling Fan with speed control
*Auto-restart when AC resume
*USB Communication is option
Key words: Low frequency pure sine wave inverter with charger
Auto transfer time 10 Ms.
Smart Charging ,Off Charging function
Protection for overload,short-circuit,Battery Low protection.
self-testing while starting
Auto-restart when AC resume
Silence setup and Cooling Fan with speed control
OPTIONAL :
LCD display Option
AVR function is option (ZYSW*A )
175-270V or 90-290V input selectable for ZYSW-"A"
50% or 100% charge current selector for ZYSW/ZYSW*A-"B"
USB Communication is option---"C"
The above "A" or "B", only can select one of them .
When select the "C" then cannot select the "A"and "B"
Techinical data| Model | ZYSW600(A) | ZYSW800(A) | ZYSW1000(A) | ZYSW1200(A) |
| Maximum Output Power(W) | 600VA
| 800VA | 1000VA | 1200VA |
| 500W | 640W | 800W | 1000W |
| Input | Voltage for ZYSW | Inverter mode: 80-290Vac±5Vac,UPS mode:175-270Vac±5Vac |
| Voltage for ZYSW-A | 145-270Vac±5Vac. The Mode with AVR Function |
| Frequency | 45Hz-65Hz |
| Output | Voltage for ZYSW | Inverter mode: 80-290Vac±5Vac(AC mode)220Vac±5% (DC mode) |
| Voltage for ZYSW-A | UPS mode:175-270Vac±5Vac(AC mode)220Vac±5% (DC mode) |
| Frequency | 50Hz ±5Hz (DC mode) |
| Output Waveform | sine wave |
| General Protection | Output Short; Over Voltage; Low-Voltage; Power Utility Short; Low Battery Voltage |
| DC voltage | 12VDC | 12VDC | 12VDC | 12VDC/24VDC |
| Charge Current | 15Amp | 15Amp | 20Amp | 20Amp |
| Battery | Battery Type | Valve controlled maintenance free sealed lead-acid battery |
| 600K(A)-1.2K(A) | 12VDC External | 12VDC External | 12VDC External | 12VDC/24VDC External |
| Transfer Time(ms) | Max 10MS |
| Max 10MS | < 150% overload:No beed, > 150% overload :1beep per second |
| Alarm | battery low,LCD type beeping every 0.5second,LED type fault LED flashes,
when overload:UPS beep every 0.5second |
| Communication Interface | USB communication option |
| Surge protection | Yes |

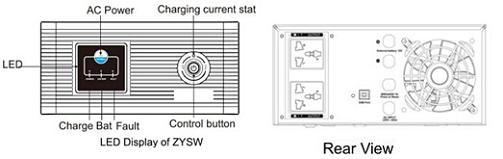

| LED Display | Line ,Charge,backup,Fault. UPS/Inverter Mode select or Charge current |
| LCD Display | Auto turn-on,AVR mode,HZ, VAC,Bat % , Load % |
| Product size | WxDxH (mm) | 290*255*120 | 290*255*120 | 290*255*120 | 290*255*120 |
| CTN size | WxDxH (mm) | 355*325*230 | 355*325*230 | 355*325*230 | 355*325*230 |
| CTN Weight (Gross/Net) (KG) | 8 / 7.3 | 11.01 / 10.3 | 11.65 / 10.9 | 13.66 / 13 |
| REMARK | ZYSW*K --- Without AVR Function, ZYSW*K-A----With 3step of AVR Function |

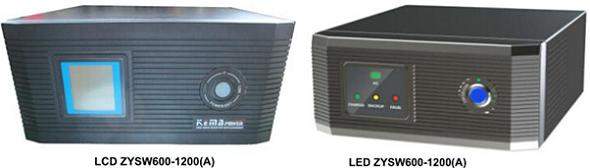

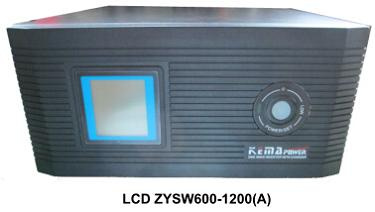

Product Show:
