High Gain Screw Mount 2g 3G 4G Lte Antenna, IP67 Lte 4G Car Antenna, Outdoor Use GSM 3G 4G Antenna

Name: High Gain Screw Mount 2g 3G 4G Lte Antenna, IP67 Lte 4G Car Antenna, Outdoor Use GSM 3G 4G Antenna
Brand: all-electronics-online.com
SKU: 730412652
Availability: InStock
Rating: 4.8 (98 reviews)

Price:	US $ 6-6.5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

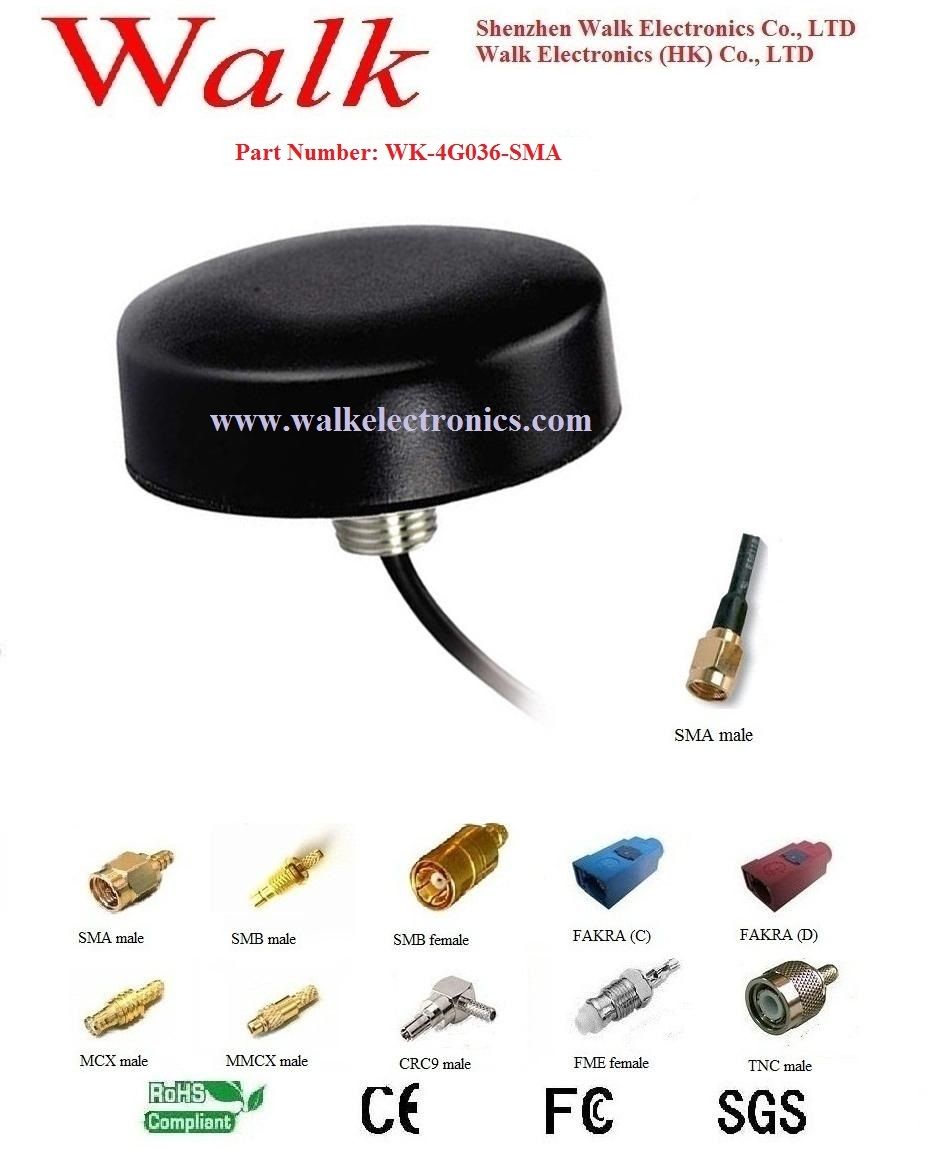

GSM/3G/4G/LTE Antenna Specifications:

Part Number: WK-4G036-SMA
4G/LTE antenna Specification
Frequency Range	698-960/1710-2700MHz
V.S.W.R	2.5:1
Band Width	±90/280 MHz
Gain	3.5dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h
Mechanical Specifications
Size	80(Dia)×14mm
Weight	<200g
Cable	3m RG174, RG58, RG316, LMR100 or others
Connector	SMA straight male, SMB, FME, FAKRA or others
Mounting	Screw mount(M12)
Housing	Black ABS
Environmental Specification
Working Temp	-40ºC~+85ºC
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
Waterproof	100% waterproof

Prod Model:	WK-4G036-SMA
Connector:	SMA Male Straight
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	1.5~2

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
