IP67 Screw Mount WiFi Antenna, Waterproof 2.4GHz Antenna, Outdoor Use Bluetooth Antenna, Roof Mount WiFi Car Antenna

Name: IP67 Screw Mount WiFi Antenna, Waterproof 2.4GHz Antenna, Outdoor Use Bluetooth Antenna, Roof Mount WiFi Car Antenna
Brand: all-electronics-online.com
SKU: 730462872
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 3.7-4.2/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

WiFi Antenna/2.4GHz Antenna/Zigbee Antenna Specifications:

Part Number: WK-WIFI035
WIFI antenna Specification
Frequency Range	2400-2500MHz
V.S.W.R	1.5:1
Band Width	100 MHz
Gain	2.5dBi
Polarization	Vertical
Radiation	Omni directional
Max Input power(W)	50
Impedance	50 ohm
Max wind speed	200km/h
Mechanical Specifications

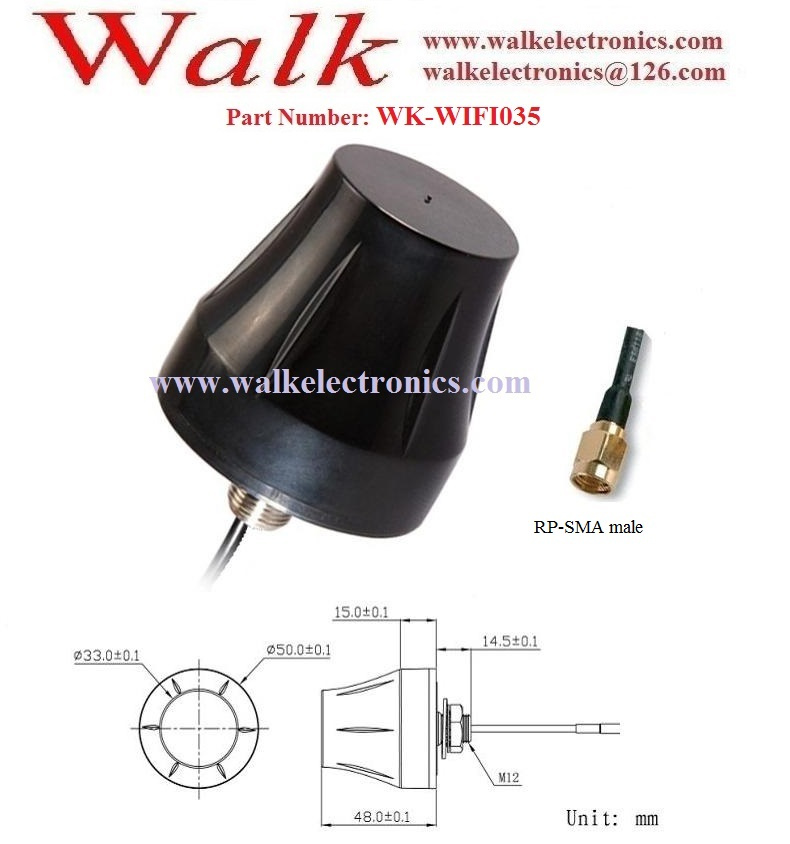

Size	50(Dia)×48mm
Weight	<150g
Cable	2.5m RG174, RG316, LMR100 or others

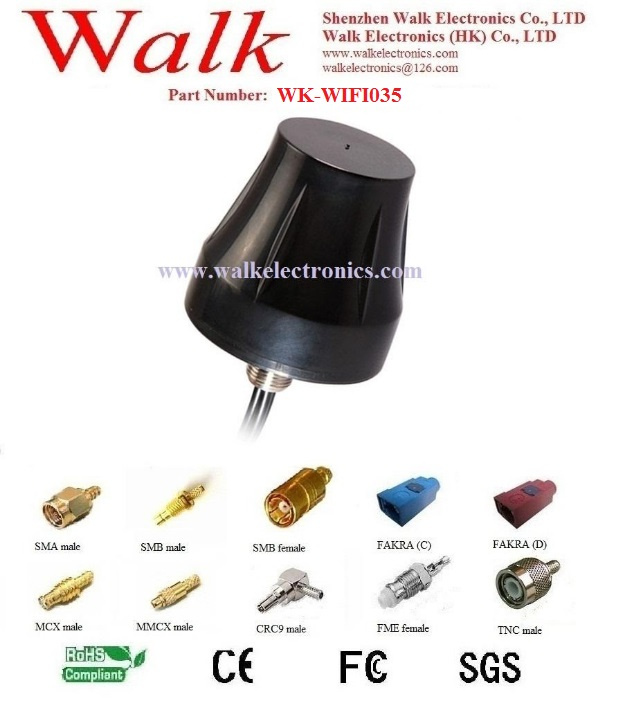

Connector	RP-SMA male straight, MMCX, FME, FAKRA, SMB or others
Housing	Black ABS
Mount	Screw
Environmental Specification
Working Temp	-40ºC~+85ºC
Waterproof	100%
Vibration	Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity	95%~100%RH
MTBF=1×10-6/pc.hr	40ºC±5ºC, 2000pcs For 480h

Prod Model:	WK-WIFI035
Connector:	RP-SMA Male Straight
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
