RG6

Overview
This 75 Ohm RG6 is the most commonly coaxial cable used in existing and next generation TV network and security monitoring and control systems.

Features
·         75 Ohm data signal transmission;
·         The inner conductor could be Copper Clad Steel or Bare Copper;
·         The insulation is foam PE;
·         Customized cable color , winding and connector, meet your different requirements;
·         RoHS compliant;
Assemblies & Application
This 75 Ohm RG6 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems.

CATV/MATV Coax Cable

RG6

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Insulation First Shield Second Shield Jacket	CCS/BC Foam PE Bonded Aluminum Foil AL-Mg/TC Wire Braid PVC/PE	1.02 4.57 4.70 5.20 6.80	Per customer's requirements: The inner conductor could be CCS or BC; The second shield could be 48,64,80,96,112,128 or 144 AL-Mg /TC wires braiding;Jacket could be PVC or PE ;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

75±3
54±2
84.0
1.6
≤1.2
≥20
≥75
35.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
50 100 200 400 700 900 1000	5.2 6.8 9.4 13.9 19.0 20.6 21.5

More Ideas
1)  If require conventional construction and materials, please click RG6;
2)  If require better shield effectiveness, please click RG6T or RG6Q;
3)  If require two-way transmission, please click RG6 DUAL;
4)  If require high tensile strength, please click RG6M or RG6DM;
5)  If require both video transmission and power supply, please click RG6+2C;
6)  If require a cable with smaller wire diameter, please click RG59 or MINI RG59;
7)  If require a cable running through the window or door, please click FLAT WIRE;
8)  For more RG6 assemblies,please click RG6 ASSEMBLIES;
9)  Any other requirements or queries, please click CONTACT US.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

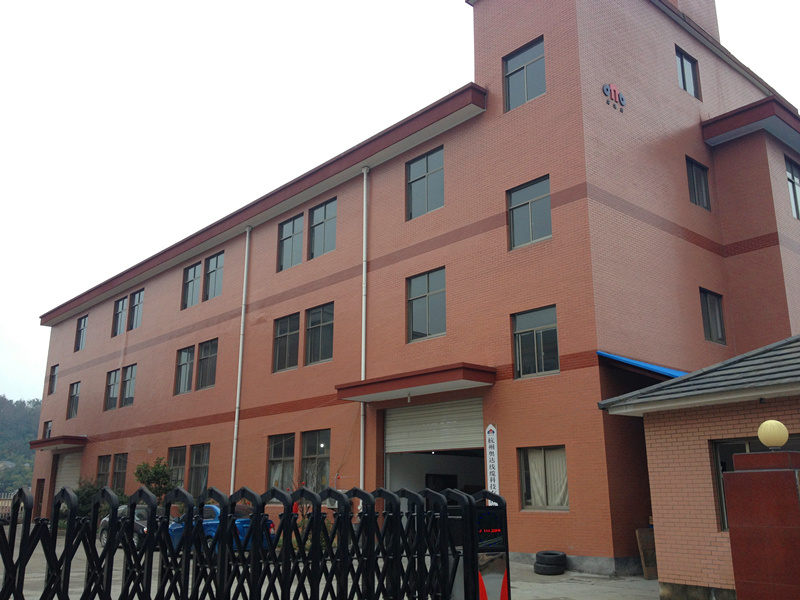

Company Information

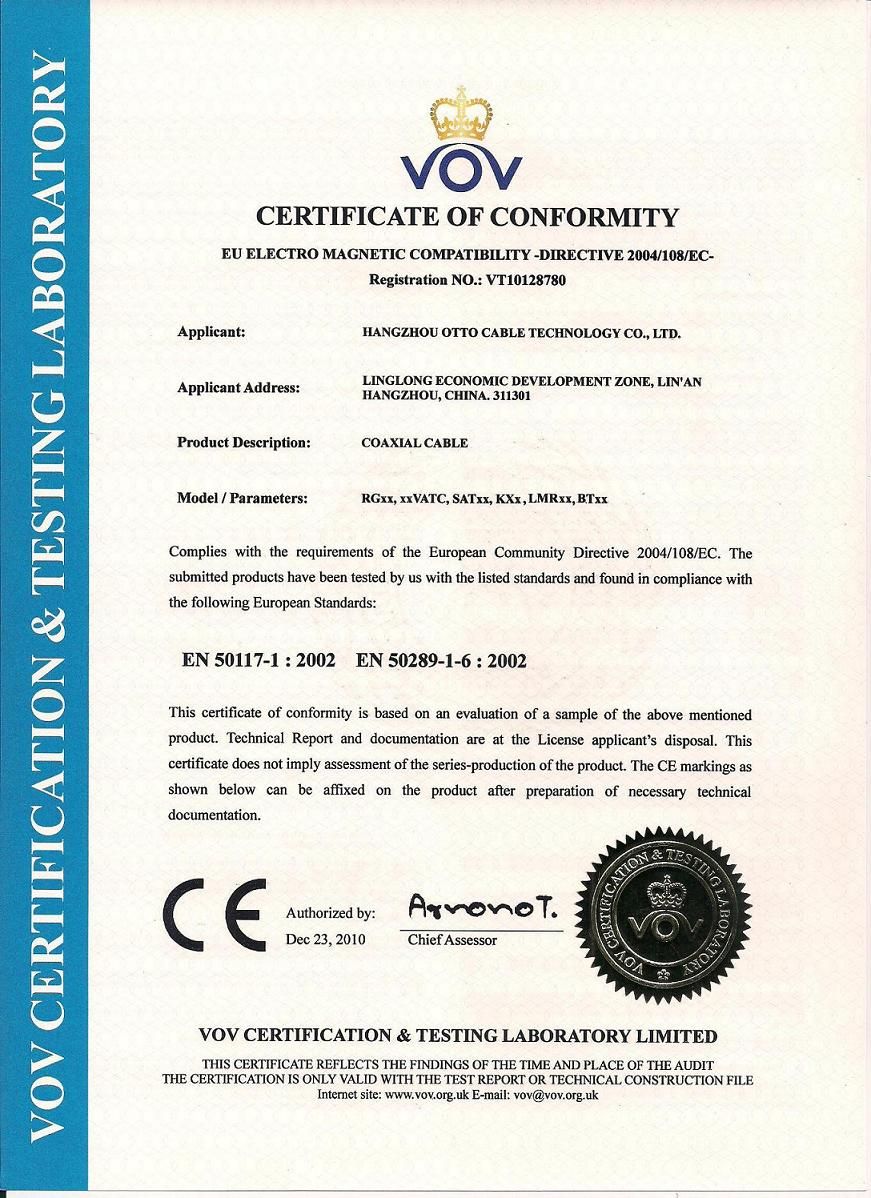

Certifications

Contact us

Prod Model:	RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	RG6 Coaxial Cable for Matv/CATV
Inner Conductor:	1.02 CCS/Bc
Insulation:	4.57 Foam PE
First Shield:	4.70 Bonded Aluminum Foil
Second Shield:	5.20 Al-Mg/Tc Wire Braid
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Al-Mg Wire Braid/Tc
Cover Material:	PVC/PE
Type:	Coaxial
Wire Core Material:	Bc/CCS
Model:	RG6
Brand:	Ottocable

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
