Rg58 Coax Jumper Cable with N Type Connector

Name: Rg58 Coax Jumper Cable with N Type Connector
Brand: all-electronics-online.com
SKU: 765162475
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	US $ 0.01-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

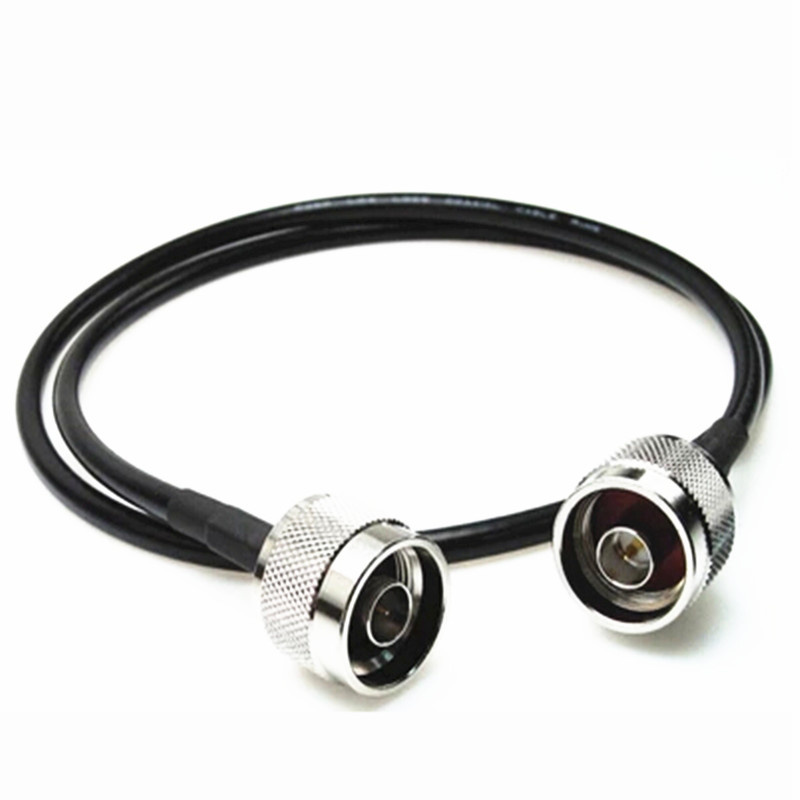

Coax Jumper Cable RG58 with N Type Connector

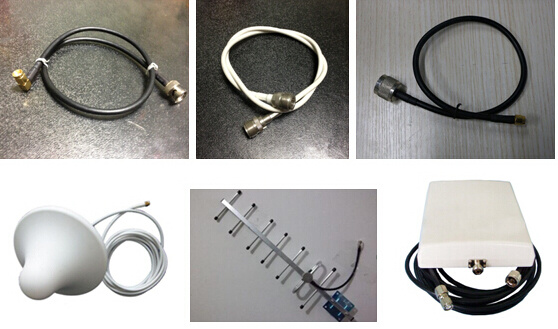

50 Ohm RG58 coax cable assemblies mainly used in gps antennas, gsm antennas, marine antennas.
50 Ohm RG58 coax cable can also be fixed with SMA, BNC, TNC, N type connectors.

This cable RG58 and its assemblies are widely applied to Antennas, CDMA, GMS, DAS and other communication syestems.

Spec:
N Type Male Connector to N Type Male Connector

Cable type:RG58

Cable Length: 1m, 3m, 5m,....depends on customers requirements.

RG58 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	TC / BC / CCS		10.9 / 190.18
Dielectric	Solid PE		2.95
Shield	TC / BC/ CCA Braid(80,96,112,128)		3.45
Jacket	PVC		4.95

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@100MHz	15.2
Velocity of Propagation(%)	66	@500MHz	42.6
Shielding Effectiveness(dB)	≥85	@900MHz	53.0
VSWR(dB)	1.25	@1000MHz	56.0
Operating Temperature(ºC)	-30 to +70	@2000MHz	79.0
-----	-----	@2500MHz	95.5

Prod Model:	RG58
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Tc/Bc/CCS
Insulation:	Solid PE
Shield:	Tc/Bc/CCA
Jacket:	PVC
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Tc/Bc/CCS
Type:	Coaxial
Wire Core Material:	Tc/Bc/CCS

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
