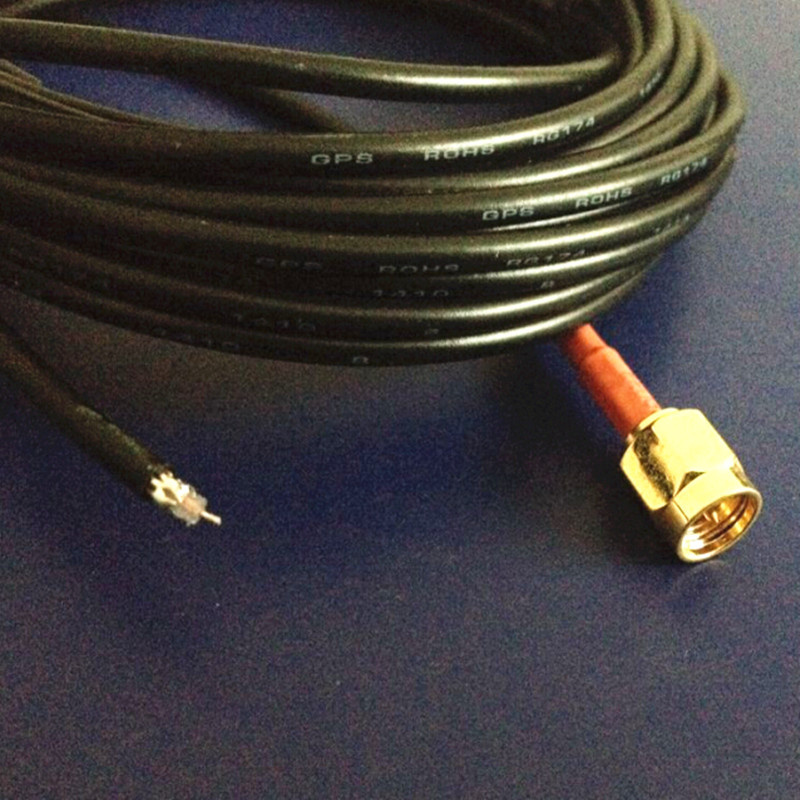

RG174 Coaixal Cable with SMA Connector for Car Antenna

RG174 cable assemblies mainly designed for the gps, beidou, car antenna systems.

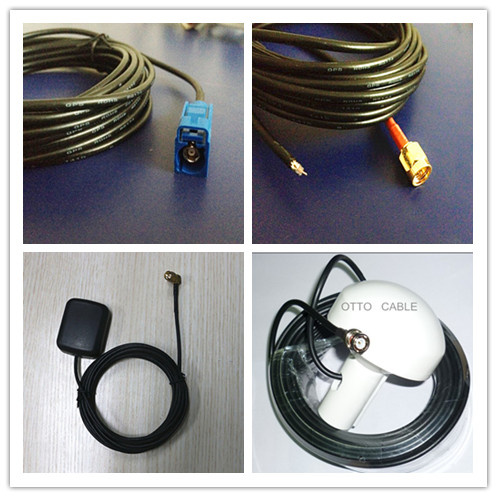

50 Ohm RG174 coaxial cable can also be fixed with SMA,SMB,FRAKA,BNC,MCX,MMCX connectors.

Cable Length: 10M,20, 30M.... can be made as per customers' requirements.

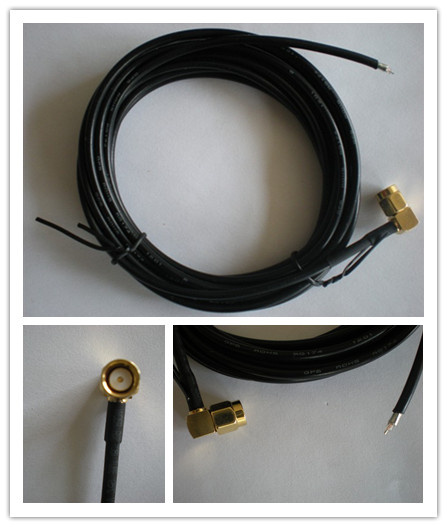

Connector Type: SMA, male, straight, gold plated.

Return Loss: >20dB.

RG174 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	TC / BC / CCS		7*0.16
Dielectric	Solid PE		1.52
Shield	TC / BC/ CCA Braid		---
Jacket	PVC		2.80

Electrical Characteristics		Attenuation @20ºC (dB/M)
Impedance(Ω)	50	@400MHz	0.62
Velocity of Propagation(%)	66	@600MHz	0.72
Return Loss(dB)	≥20	@860MHz	0.9
VSWR(dB)	≤1.2	@1000MHz	1.0
Shielding Effectiveness(dB)	≥85	@1575MHz	1.20
Operating Temperature(ºC)	-30 to +70	-----	------

Prod Model:	RG174/SMA Female L Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rg Mil-C-17 Coaxial Cable:	Rg174
Inner Conductor:	Tc/Bc/CCS
Insulation:	Solid PE/ XLPE
Shield:	Tc/Bc/CCA Braid
Jacket:	PVC
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Range Of Application:	Car Antenna
Brand:	Otto Cable

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
