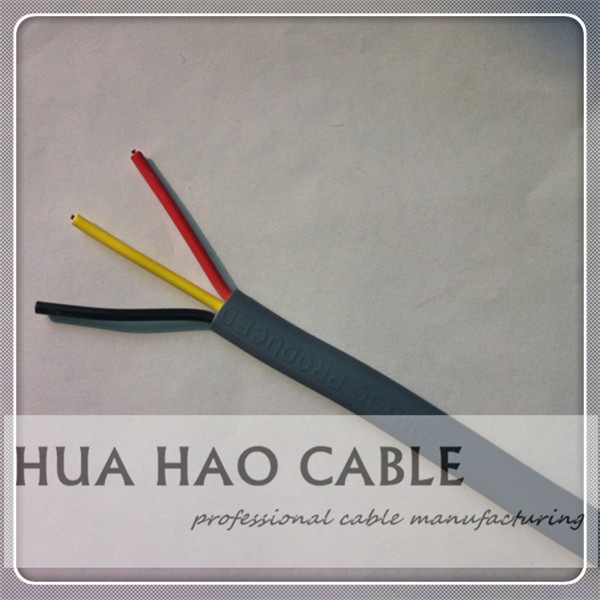

High Quality Copper Conductor Twin Flat Cable

Name: High Quality Copper Conductor Twin Flat Cable
Brand: all-electronics-online.com
SKU: 752846825
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

SPECIFICATION:2core 3ore 4core for reference

Part Number	Nominal Cross Section	No of Cores x Cross Section	Approx. outer Diameter	Approx. Cable Wieight	Conductor Resistance at 200C (Max)	Current Carrying Capacity on air at 300C
H03VV-F	2x0,50	15x0,20	5,0	38	39	3
H03VV-F	2x0,75	22x0,20	5,5	46	26	6
H03VV-F	3x0,50	15x0,20	5,4	44	39	3
H03VV-F	3x0,75	22x0,20	6,0	56	26	6
H03VV-F	4x0,50	15x0,20	5,9	55	39	3
H03VV-F	4x0,75	22x0,20	6,4	68	26	6
H05VV-F	2x0,75	22x0,20	6,2	55	26	13
H05VV-F	2x1	30x0,20	6,6	65	19,5	16
H05VV-F	2x1,5	27x0,25	7,6	90	13,3	20
H05VV-F	2x2,5	47x0,25	9,2	130	7,98	27
H05VV-F	2x4	51x0,30	11,0	180	4,95	34
H05VV-F	3x0,75	22x0,20	6,5	65	26	13
H05VV-F	3x1	30x0,20	7,2	80	19,5	16
H05VV-F	3x1,5	27x0,25	8,5	110	13,3	20
H05VV-F	3x2,5	47x0,25	10,0	165	7,98	27
H05VV-F	3x4	51x0,30	11,4	230	4,95	34
H05VV-F	4x0,75	22x0,20	7,1	75	26	13
H05VV-F	4x1	30x0,20	7,8	95	19,5	16
H05VV-F	4x1,5	27x0,25	9,5	140	13,3	20
H05VV-F	4x2,5	47x0,25	11,0	200	7,98	27
H05VV-F	4x4	51x0,30	12,5	290	4,95	34
H05VV-F	5x0,75	22x0,20	8,0	100	26	13
H05VV-F	5x1	30x0,20	8,5	115	19,5	16
H05VV-F	5x1,5	27x0,25	10,5	170	13,3	20
H05VV-F	5x2,5	47x0,25	12,5	260	7,98	27

Product Description

PVC Insulated Cable RVV 2 cores 2.5mm Flexible Copper Cable

1) 450/750V insulated wire
2) IEC, ASTM, DIN, BS standard
3) ISO9001, CCC
4) Free samples

1 Standard

GB 5023.11997, JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

2 Rated Voltages:

450/750V 300/500V 300/300V. (600/1000V also available)

Application:Insualted flexible cables are suitable for use in connecting portable devices of general destional such as household electric equipment of general use as well as in wet room,in average work condition e.g. .of washing machine,fridge and kitchen and heat appliances on condition that there is no danger of contact with hot elements.

Packing:Ring of length of 100 meters and orther forms according to customer's requests.

Company information:

Prod Model:	RVV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	300/500V 50/60Hz
Operating Temperature:	From-40degree to +70degree
2core:	Blue,Brown
3core:	Black,Blue,Brown
4core:	Green-Yellow,Black,Blue,Brown/2black,Blue,Brown,
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	PVC
Conductor Material:	Copper,CCAM,CCA,CCC,Ccad
Range Of Application:	Household
Certification:	SGS
Brand:	Huahao

Jiaxing Huahao Cable Co., Ltd., is located in Haiyan Economic Developing Zone, Zhejiang Province. We are at the north of Hangzhou Bay Bridge, 100km away from Shanghai Pudong Airport, 50 minutes away from Hangzhou International Airport by car. The superior geographical surrounding and speedy transportation network provide us a great convenience for goods transportation at home and abroad. Since the establishment in 2010, we have been specialized in designing, developing, and producing all kinds of PVC cable materials, injection materials, environmental protection materials, such as welding cables, speaker cables, and audio cables. All products are subjected to the most advanced testing equipment by virtue of strong human resources, technical support and production strength.

Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.
